10- Engine Harness

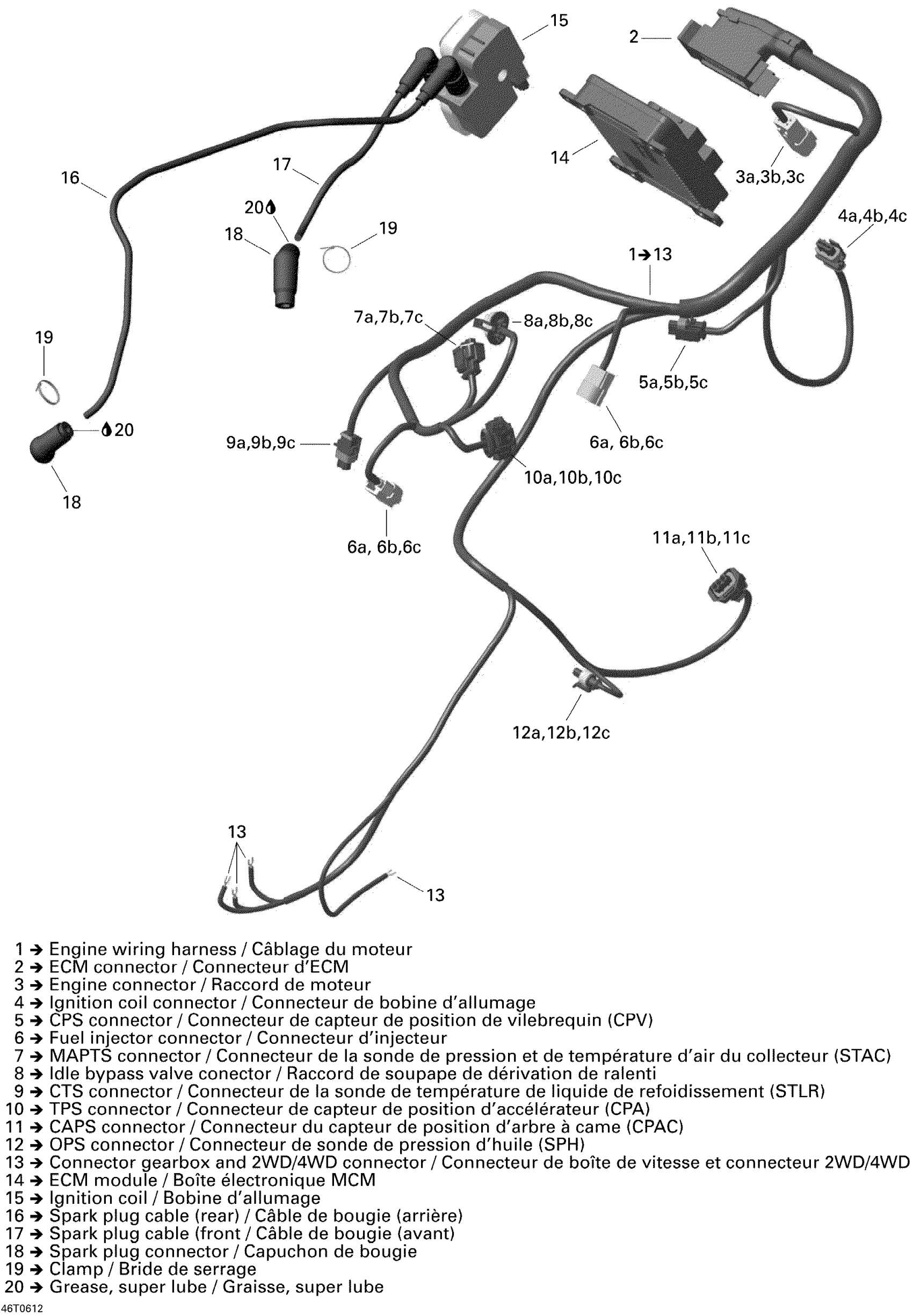

Can-Am Outlander 650 XT 4 X 4, 2006 10- Engine Harness Diagram
#
1
Engine Wiring Harness | Includes 1 to 13
420664229
Unavailable
2
ECM Connector
420664450
Unavailable
3a
Male Terminal
278000631
Unavailable
3b
Female Housing, 4 Circuits
278000635
Unavailable
3c
Female Wedge, 4 Circuits
278000636
Unavailable
4a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
4b
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
4c
Male Housing, 3 Circuits
278000997
Unavailable
5a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
5b
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
5c
Male Housing, 2 Circuits
278001005
Unavailable
6a
Not Available As Spare Part - Friction Washer
Unavailable
6b
Not Available As Spare Part - Friction Washer
Unavailable
6c
Not Available As Spare Part - Friction Washer
Unavailable
7a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
7b
Not Available As Spare Part - Friction Washer
Unavailable
7c
Not Available As Spare Part - Friction Washer
Unavailable
8a
Not Available As Spare Part - Friction Washer
Unavailable
8b
Not Available As Spare Part - Friction Washer
Unavailable
8c
Not Available As Spare Part - Friction Washer
Unavailable
9a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
9b
Not Available As Spare Part - Friction Washer
Unavailable
9c
Male Housing, 2 Circuits
278001005
Unavailable
10a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
10b
Not Available As Spare Part - Friction Washer
Unavailable
10c
Housing Connector, 3 Circuits
278001829
Unavailable
11a
WIRE SEAL - Call your local BRP dealership
710000403
Unavailable
11b
Not Available As Spare Part - Friction Washer
Unavailable
11c
Housing Connector, 3 Circuits
278001830
Unavailable
12a
Wire Seal
278001013
Unavailable
12b
Female Terminal
278001014
Unavailable
12c
Male Housing, 1 Circuit
278001012
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership
420266505
Unavailable
15
Ignition Coil
278001546
Unavailable
16
Spark Plug Cable, 790 mm, Rear
420665333
Unavailable
17
Spark Plug Cable, 790 mm, Rear
420665333
Unavailable
18
Spark Plug Connector
420265248
Unavailable
19
Tie Rap
420866710
Unavailable
20
Grease, Super Lube
293550030
Unavailable
