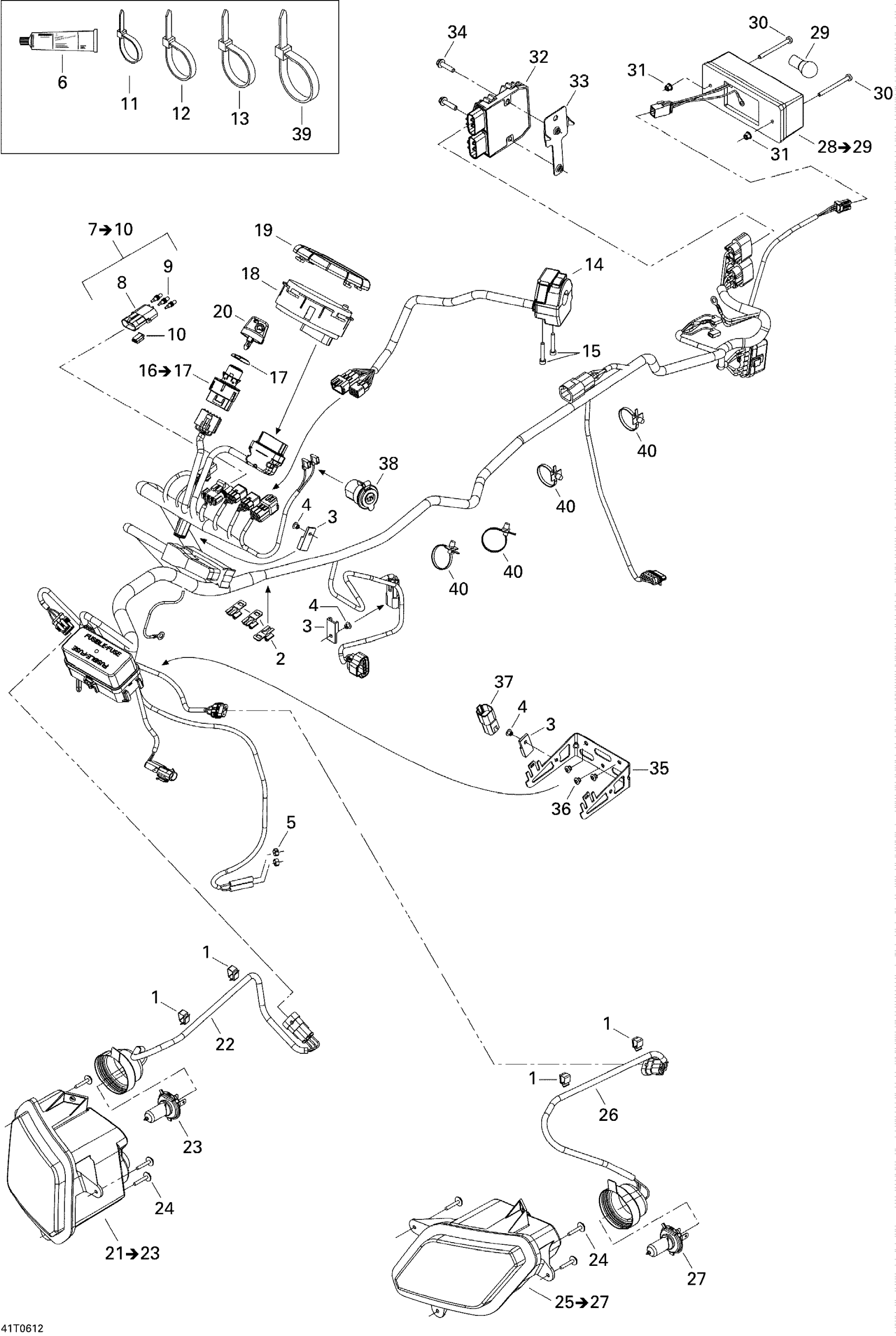

Can-Am Outlander 650 XT 4 X 4, 2006 Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.40

2

Housing Support

515175283

$8.18

3

Clip

270000141

$9.57

4

Pop Rivet 3/16"

390402400

$0.28

5

Oetiker Clamp

293650100

$3.15

6

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

7

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

8

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

9

Wire Seal

278000216

$2.93

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$0.96

12

Tie-Rap 180 mm

414115200

$0.10

13

Tie Wrap 368 mm

293750008

$0.97

14

Multi-Fonction Handle

710000791

$108.18

15

Socket Head Screw M5 X 35

205053588

$1.79

16

Ignition Switch | Includes 16 to 17

710002324

$75.34

17

Not Available As Spare Part - Friction Washer

Unavailable

18

SPEEDOMETER - Call your local BRP dealership

710000919

Unavailable

19

TRIM RING - Call your local BRP dealership

710000353

Unavailable

20

Black, Electronic Key

710000817

$53.70

21

RH Headlamp Ass'y | Includes 20 to 22

710001496

$80.57

22

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

23

Bulb, 12V 35/35W

710000871

$32.06

24

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

25

LH Headlamp Ass'y | Includes 24 to 26

710001497

$80.57

26

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

27

Bulb, 12V 35/35W

710000871

$32.06

28

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$85.79

29

Bulb

520000758

$8.60

30

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

31

Hex. Flange Elastic Nut M5

233251414

$1.91

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

33

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

34

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

35

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

36

Pop Rivet 3/16"

390402400

$0.28

37

Diagnostic Connector

278002704

$17.88

38

Outlet Power Kit, 12 Volts

861507200

$35.04

39

Tie-rap 627 mm

293750041

$0.87

40

Push Mount

293750039

Unavailable
