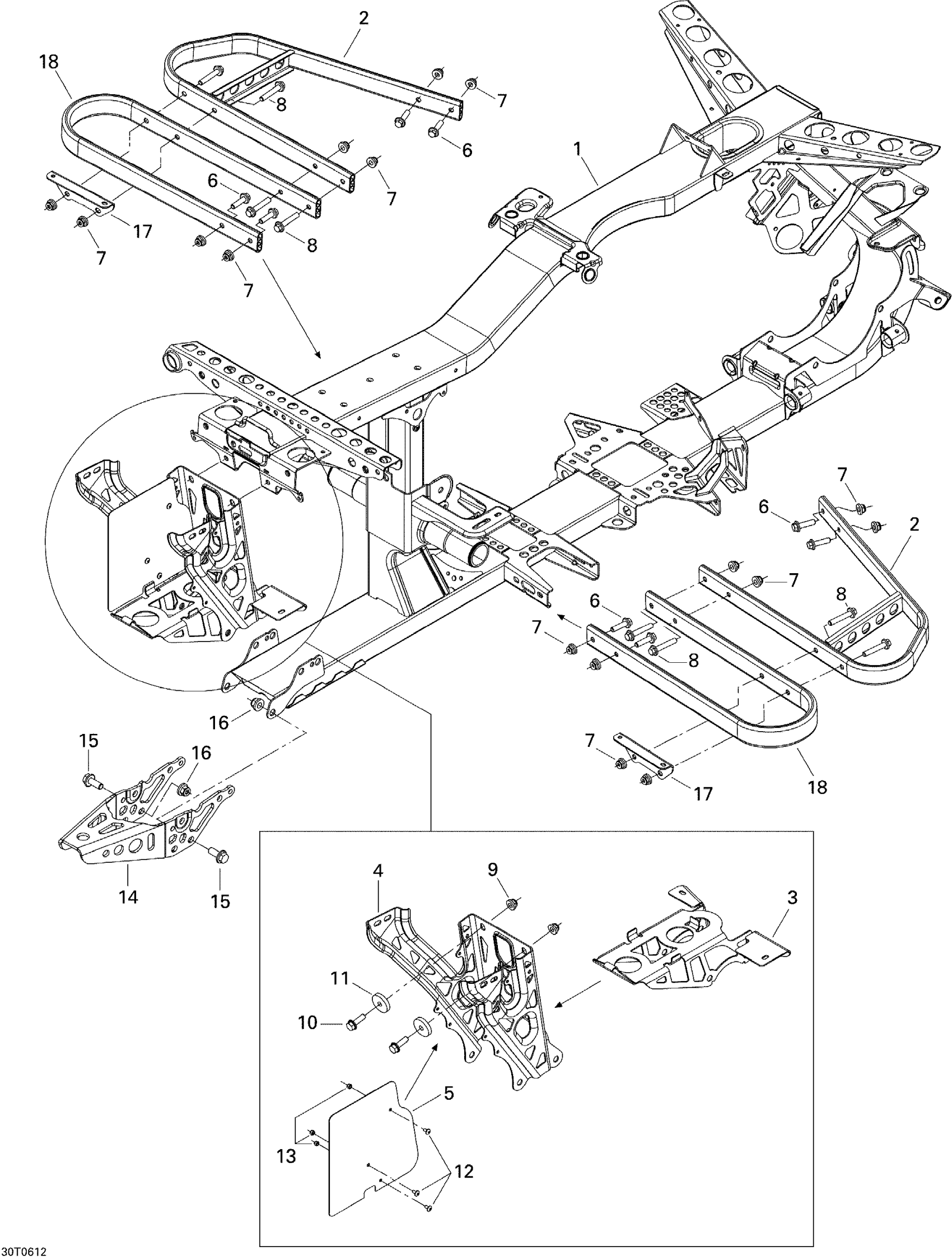

Can-Am Outlander 650 XT 4 X 4, 2006 Frame Diagram

#

Description
Price

1

Frame, Black

705200823

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

$32.99

4

Rear Battery Support, Black

705200934

Unavailable

5

Heat Shield

705202394

$17.49

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Flange Screw M8 X 45

207684544

$3.57

9

Hex. Elastic Flange Nut M8

233281416

$1.43

10

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

11

SPACER - Call your local BRP dealership

705202084

Unavailable

12

Torx Screw M4 X 8

250000127

$1.06

13

Elastic Stop Nut M4

232541484

$0.70

14

TRAILER HOOK, BLACK - Call your local BRP dealership

705201112

Unavailable

15

Hex. Flange Screw M10 X 25

207602544

$1.52

16

Hex. Flange Elastic Nut M10

233201436

$2.00

17

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

18

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable
