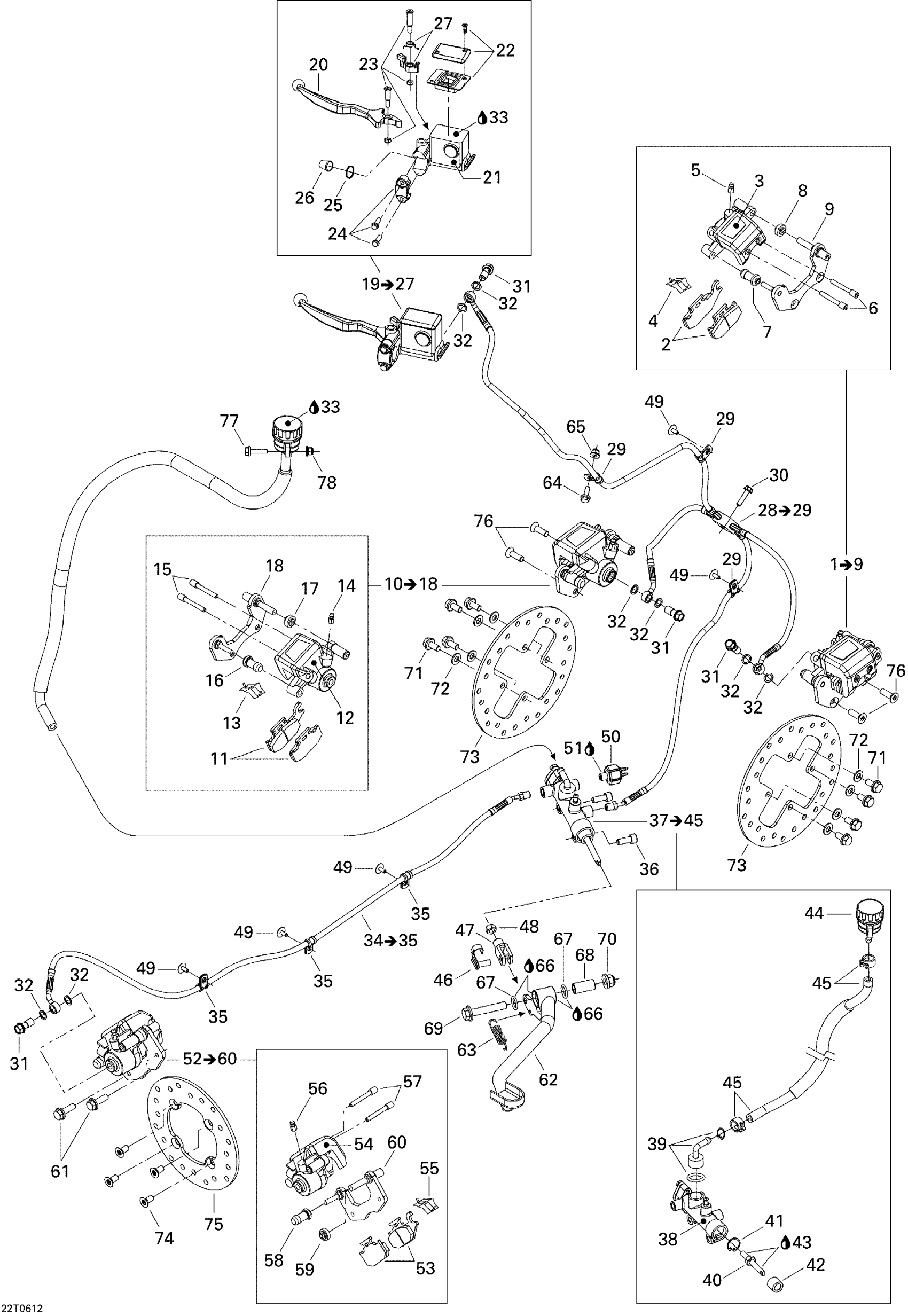

Can-Am Outlander 650 XT 4 X 4, 2006 Hydraulic Brake Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

Unavailable

2

Brake Pad Kit

705600349

$48.48

3

Piston Set

705600078

$35.79

4

Spring

705600079

$13.51

5

Bleeding Screw

705600080

$14.49

6

Pin Set (2)

705600081

$18.63

7

Compression Boot

705600082

$9.30

8

Compression Boot

705600083

$9.30

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$204.45

11

Brake Pad Kit

705600350

$48.48

12

Piston Set

705600078

$35.79

13

Spring

705600079

$13.51

14

Bleeding Screw

705600080

$14.49

15

Pin Set (2)

705600081

$18.63

16

Compression Boot

705600082

$9.30

17

Compression Boot

705600083

$9.30

18

LH Caliper Support

705600297

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$202.96

20

Lever Arm

705600243

$49.22

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$23.10

23

Brake Lever Bolt Kit

705600246

$13.51

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

28

Front Hose | Includes 28 to 29

705600925

$157.43

29

Clamp

293650256

$5.00

30

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

32

Copper Washer

705601628

$4.21

33

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

33

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

34

REAR HOSE - Call your local BRP dealership | Includes 34 to 45

705600383

Unavailable

35

Clamp

293650256

$5.00

36

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.51

37

Rear Master Cylinder | Includes 33 to 40

705600254

$202.21

38

Piston Set

705600255

Unavailable

39

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Circlip

705600068

Unavailable

42

Compression Boot

705600090

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Oil Tank, Brake Fluid Reservoir

705600182

$35.04

45

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

46

Pin Kit

219702305

$30.57

47

Yoke

705600100

Unavailable

48

Hex. Nut M8

232081414

$0.69

49

Pop Rivet 3/16"

390406500

$0.81

50

Interrupteur *Brake Switch

710001345

Unavailable

51

Was 293800013 Loctite 56765

219704454

$63.40

52

Rear Caliper | Includes 48 to 56

705600577

$204.45

53

LH Brake Pad Kit

705600398

$48.48

54

Piston Set

705600399

Unavailable

55

Spring

705600079

$13.51

56

Bleeding Screw

705600080

$14.49

57

Pin Set (2)

705600081

$18.63

58

Compression Boot

705600082

$9.30

59

Compression Boot

705600083

$9.30

60

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

62

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

63

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

64

Hex. Flange Screw M6 X 16

207661644

$0.70

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

66

Synthetic Grease, 400 G

293550010

Unavailable

67

O-RING - Call your local BRP dealership

293300053

Unavailable

68

SPACER - Call your local BRP dealership

705600283

Unavailable

69

Hex. Flange Screw M10 X 55

207605544

$3.19

70

Hex. Flange Elastic Nut M10

233201414

$1.45

71

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

72

Conical Spring Washer M8

234281474

$1.43

73

Disk Brake

705600603

$55.19

74

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

75

Disk Brake

705600604

$55.19

76

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

77

Hex. Flange Screw M6 X 25

207662544

$0.61

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
