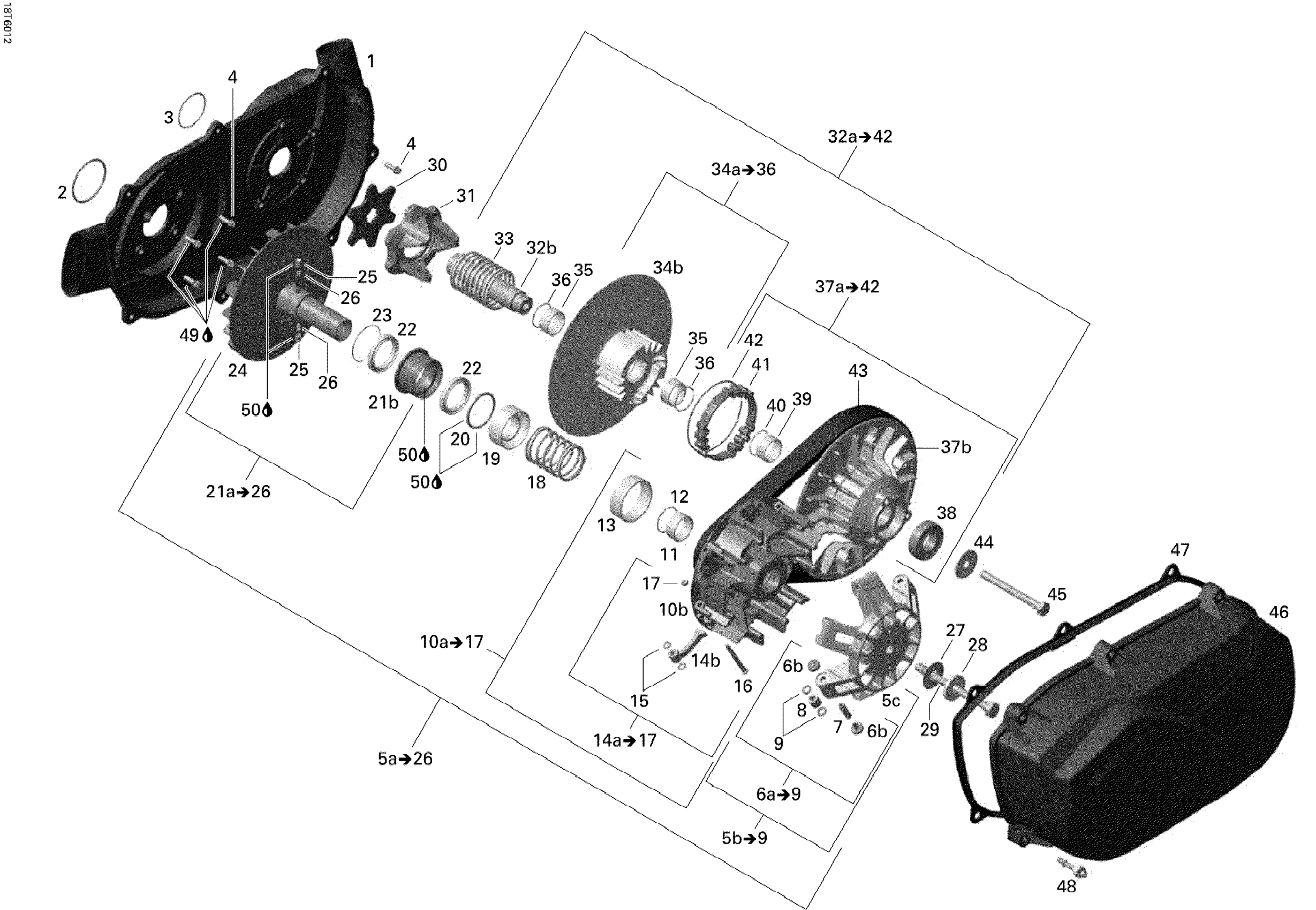

Can-Am Outlander 650 XT 4 X 4, 2006 Transmission Diagram

#

Description
Price

1

CVT Air Guide Kit

420611407

$117.88

2

O-Ring

420430408

$4.87

3

O-Ring

420631089

$4.87

4

Torx Flange Screw M6 X 20

420440207

$2.91

5a

Ctv Drive Ass'y | Includes 5a to 26

420684675

Unavailable

5b

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

5c

Not Available As Spare Part - Friction Washer

Unavailable

6a

Roller Ass'y | Includes 6a to 9

420281295

Unavailable

6b

Slider Shoe Set

420281296

$41.01

7

Roller Axle

417223257

$6.37

8

Roller

417223767

$7.15

9

Roller

417223767

$7.15

10a

Outher Half Ass'y | Includes 10a to 17

420280391

Unavailable

10b

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14a

CENTRIFUGAL LEVER SET - Call your local BRP dealership | Includes 14a to 17

420248498

Unavailable

14b

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Compression Spring, Drive Pulley

420238610

$25.34

19

Seat Spring

420627578

$32.81

20

Friction Washer

420460430

$12.37

21a

Inner Half Ass'y | Includes 21a to 26

420280380

Unavailable

21b

Drive Pulley Clutch

420257195

$109.24

22

Ball Bearing

420632377

$46.24

23

Retaining Ring

420245951

$5.39

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Spring Sleeve

420229577

$17.13

26

Spring

420239134

$2.90

27

Thrust Washer

420627920

$6.93

28

Spring Washer

420627768

$18.63

29

Hex. Screw M12 X 140

420641859

$23.10

30

Cam Plate

420627586

$43.25

31

Driven Pulley Cam

420280199

$88.78

32a

CVT Driven Pulley Ass'y | Includes 32a to 42

420684672

Unavailable

32b

Driven Pulley Shaft

420220914

$115.64

33

Compression Spring

420238176

$32.06

34a

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

34b

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Ball Bearing

420932421

$26.09

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torque Gear

420660124

$21.61

42

Retaining Ring

420245911

$5.31

43

V-Belt

422280366

$167.13

44

Thrust Washer

420627594

$11.81

45

Hex. Screw M10 X 110

420441485

$11.37

46

Variator Cover

420611397

$196.99

47

Gasket

420430126

$38.78

48

Hex Screw M6 X 30

420440568

$8.15

49

Loctite 243, 10 ml

293800060

$21.49

50

Isoflex Grease, TOPAS NB52, 50 g

293550021

$54.14
