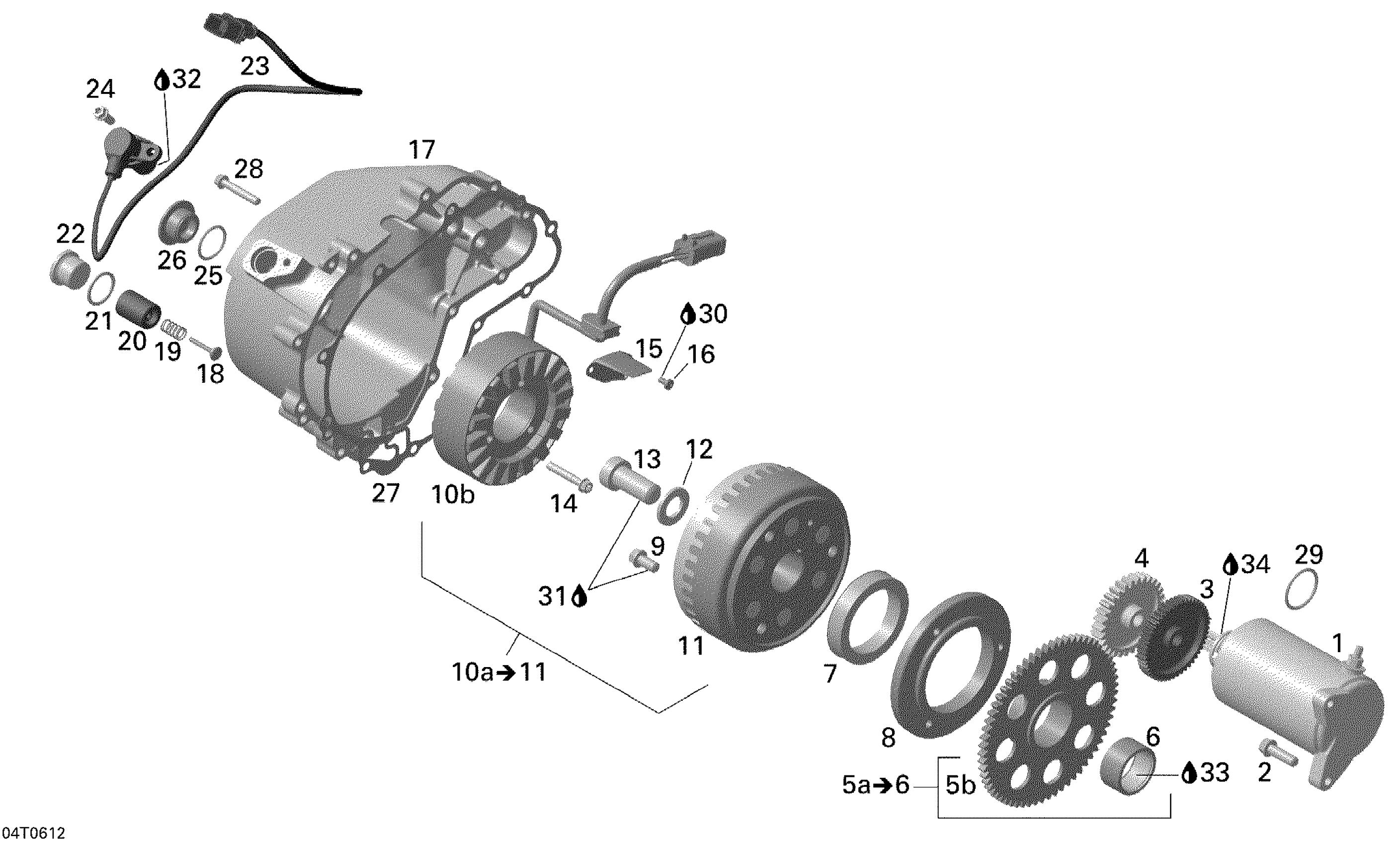

Can-Am Outlander 650 XT 4 X 4, 2006 Magneto Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$252.69

2

Torx Flange Screw M8 X 25

420440372

$3.88

3

Starter Double Gear 11/49 T

420634741

$179.07

4

Starter Intermediate Gear, 30 Teeth

420634605

$76.84

5a

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

5b

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Sprag Clutch

420659111

$235.04

8

Sparg Clutch Housing

420659263

$141.01

9

Torx Flange Screw M8 X 16

420440852

$3.88

10a

Not Available As Spare Part - Friction Washer

Unavailable

10b

Stator Plate, 420W

420685920

$284.99

11

FLYWHEEL - Call your local BRP dealership

420296905

Unavailable

12

Shim

420627270

$3.88

13

Socket Head Screw M16 X 35

420241545

$13.18

14

Torx Flange Screw M6 X 35

420440274

$0.96

15

Interior Cable Support Ass'y

420251889

$13.28

16

Phillips Screw M4 X 8

420240196

Unavailable

17

Ignition Cover

420212225

$178.33

18

Pressure Relief Valve

420656370

$16.39

19

Spring

420939481

$4.51

20

Housing

420256487

$7.01

21

Gasket Ring

420650465

$11.18

22

Plug Screw

420640271

$13.09

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

24

Torx Flange Screw M6 X 16

420641048

$2.82

25

O-Ring

420430782

$5.06

26

Plug Screw M24X 1.5

420241633

$7.01

27

Gasket

420651203

$34.30

28

Torx Flange Screw M6 X 35

420440274

$0.96

29

O-Ring

420250140

$8.09

30

Loctite 243, 10 ml

293800060

$21.49

31

Sealant Loctite 648

219703000

$41.01

32

Grease, Super Lube

293550030

$28.33

33

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

34

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
