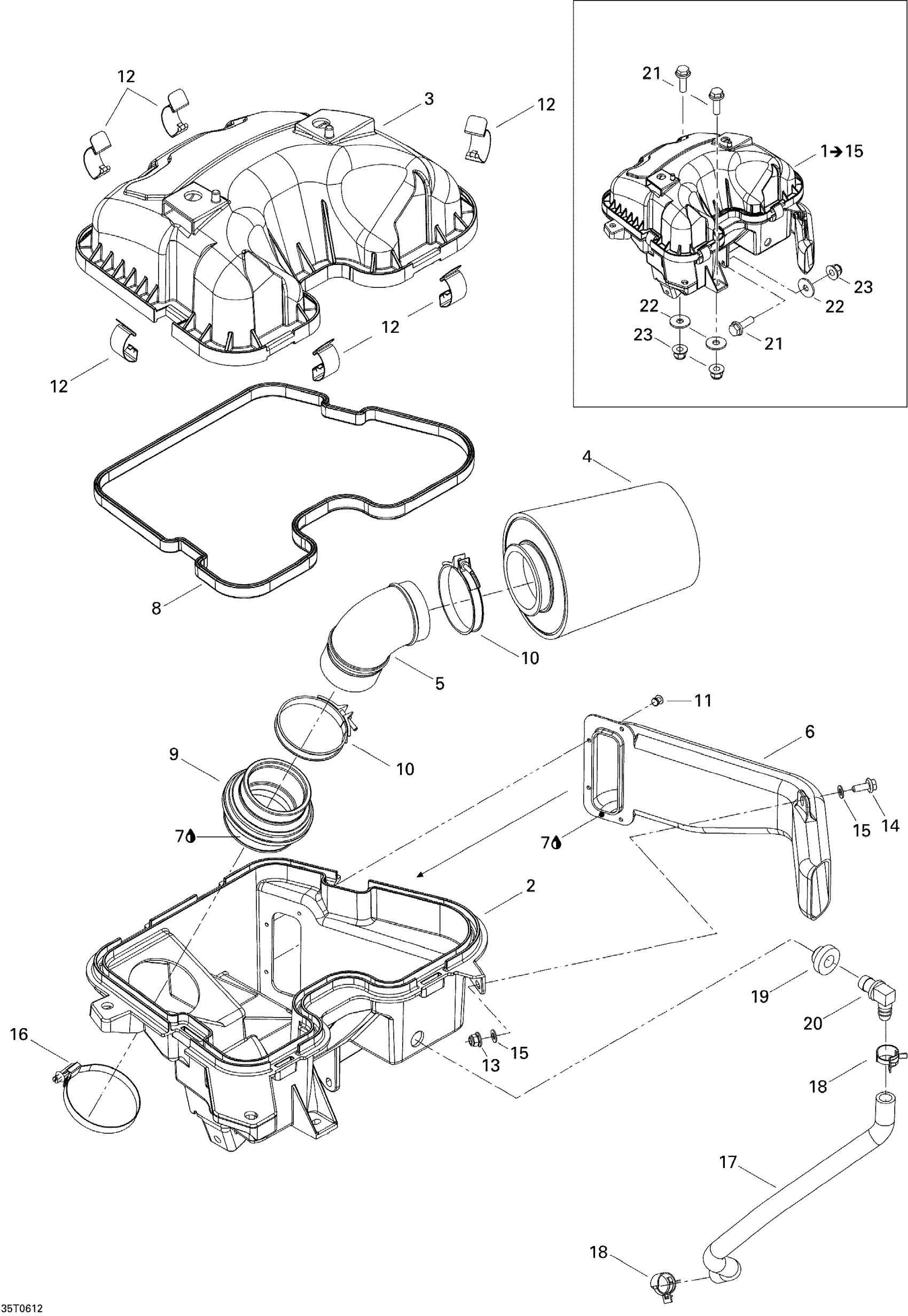

Can-Am Outlander 650 XT 4 X 4, 2006 Air Intake Silencer Diagram

#

Description
Price

1

Air Silencer Ass'y | Includes 1 to 15

707800172

Unavailable

2

Intake Silencer Base

707800173

$32.81

3

Intake Silencer Cover

707800252

$38.03

4

Air Filter

707800174

$29.82

5

RIGID ADAPTOR - Call your local BRP dealership

707800270

Unavailable

6

FRONT INTAKE ADAPTOR - Call your local BRP dealership

707800175

Unavailable

7

Loctite 5910, 300 ml

293800081

$57.99

8

Oil Seal

707800197

$16.39

9

INTAKE ADAPTOR - Call your local BRP dealership

707800177

Unavailable

10

Clamp

293650175

$12.34

11

Not Available As Spare Part - Friction Washer

Unavailable

12

COVER BRACKET - Call your local BRP dealership

707800231

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Norma Clamp

293650091

$10.54

17

VENT HOSE - Call your local BRP dealership

707800206

Unavailable

18

Norma Clamp

293650110

$4.25

19

Grommet | Europe

707800347

$8.70

20

Elbow Fitting

414523600

$4.58

21

Hex. Flange Screw M6 X 25

207662544

$0.61

22

Flat Washer

250200082

$0.40

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
