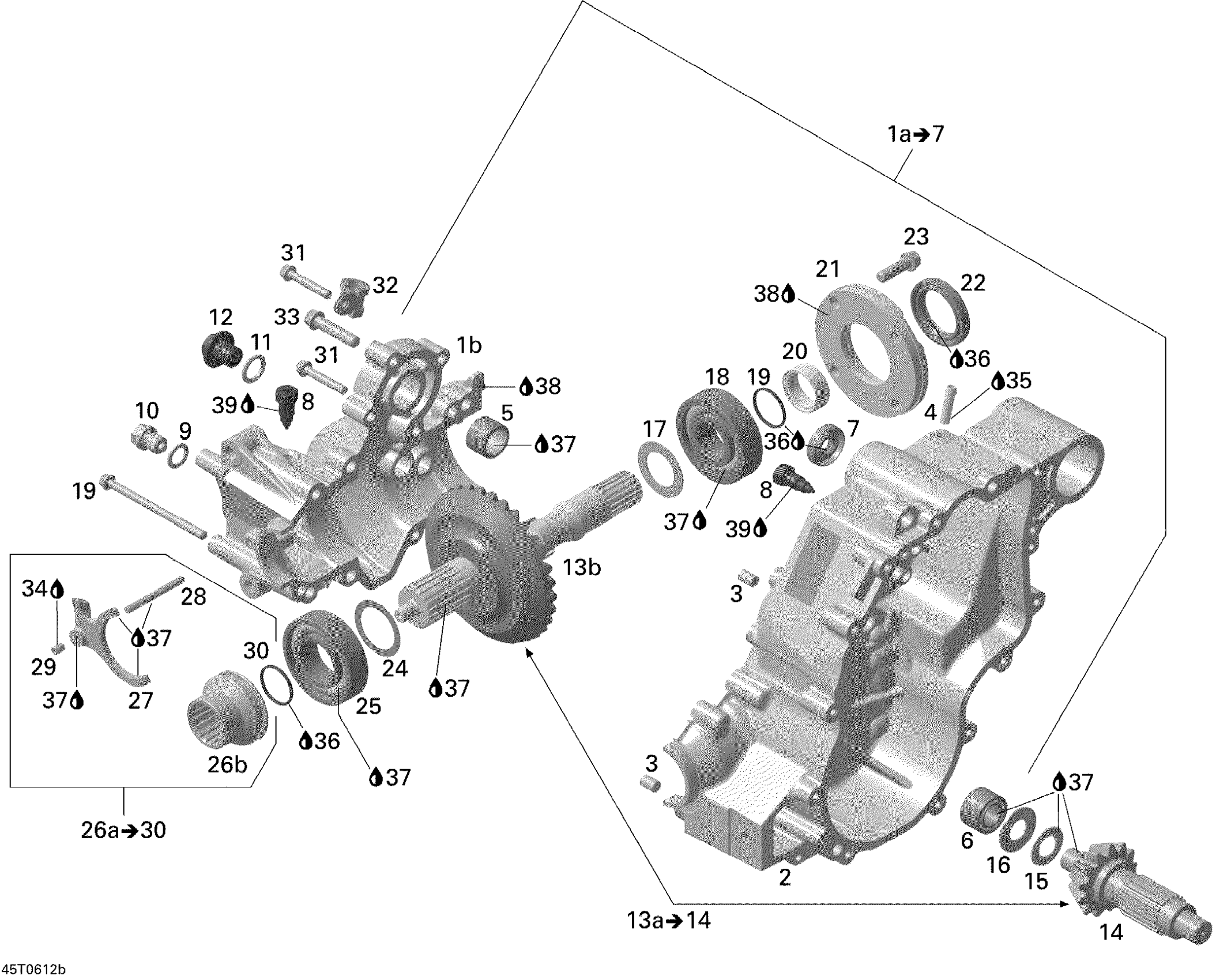

Can-Am Outlander 650 XT 4 X 4, 2006 Gear Box 2 Diagram

#

Description
Price

1a

Gear Housing Ass'y | Includes 1a to 7

420686205

$831.31

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$3.52

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Needle Bushing

420832240

$19.37

6

Needle Bushing

420232085

$35.04

7

Oil Seal

420250450

$15.64

8

Position Switch

420241856

$34.30

9

Copper Washer

420250640

$0.93

10

Magnetic Drain Plug M12

420241787

$16.39

11

O-Ring

420650350

$10.12

12

Plug Screw M14 X 1.5

420241662

$13.51

13a

Drive Ass'y | Includes 13a to 14

420296540

Unavailable

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Axial Needle Bearing

420632300

$17.13

16

Thrust Washer Set, MAG Side

420281306

$56.69

17

Washer Thrust Set

420281300

$88.78

18

Ball Bearing

420932822

$28.33

19

Torx Flange Screw M6 X 85

420641228

$7.01

20

Distance Ring

420247111

Unavailable

21

Bearing Cover

420611444

$35.04

22

Oil Seal

420950089

$17.88

23

Torx Flange Screw M8 X 25

420440372

$3.88

24

Shim 0.5

420944584

$3.88

25

Ball Bearing

420932580

$8.82

26a

Shifting Sleeve Kit | Includes 26a to 30

420257675

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

30

O-Ring

420631612

$4.04

31

Torx Flange Screw M6 X 35

420440274

$0.96

32

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

33

Torx Flange Screw M8 X 35

420641188

$7.01

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$41.01

36

Grease, Super Lube

293550030

$28.33

37

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

38

Loctite 5910, 300 ml

293800081

$57.99

39

Not Available As Spare Part - Friction Washer

Unavailable
