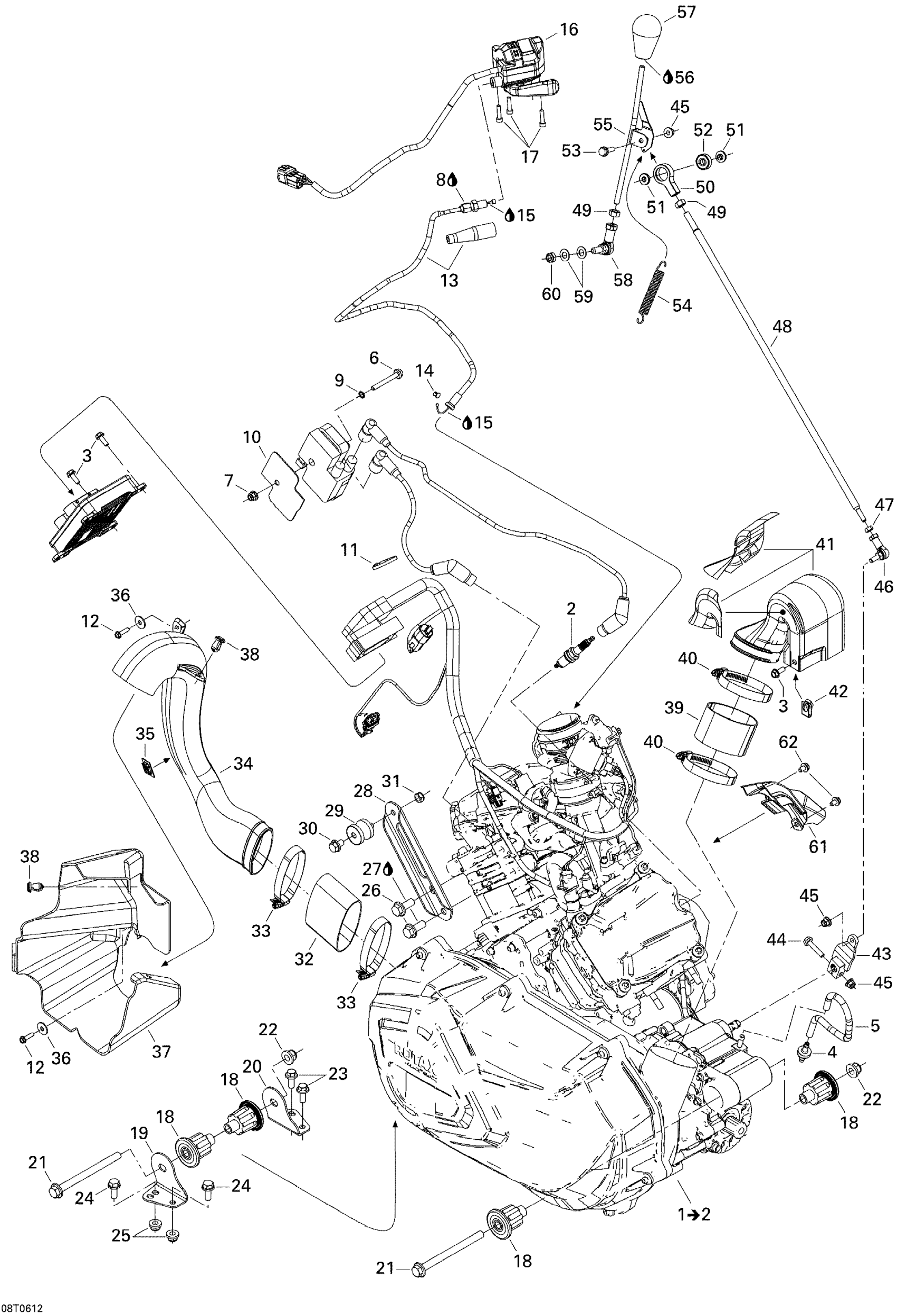

Can-Am Outlander 650 XT 4 X 4, 2006 01- Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

Unavailable

4

Check Valve

275500398

Unavailable

5

Hose 6 Mm 15000Mm Long

219704360

Unavailable

6

Hex. Flange Screw M6 X 50

207665044

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

9

External Serrated Lock Washer 6 mm

234461608

Unavailable

10

Insulator Pad

710000073

Unavailable

11

Tie-Rap 180 mm

414115200

Unavailable

12

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

Unavailable

13

Throttle Cable

707000393

Unavailable

14

Cable Guide

707000434

Unavailable

15

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

16

Throttle Handle | 4X4

707000595

Unavailable

17

Socket Head Screw M5 X 25

205052588

Unavailable

18

Vibration Damper

707001169

Unavailable

19

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

20

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

21

Hex. Flange Screw M10 X 125

230602546

Unavailable

22

Hex. Flange Elastic Nut M10

233201436

Unavailable

23

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

24

Hex. Flange Screw M8 X 20

207682044

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

Unavailable

26

Hex. Flange Screw M10 X 25

207602544

Unavailable

27

Loctite 243, 10 ml

293800060

Unavailable

28

UPPER ENGINE BRACKET, BLACK - Call your local BRP dealership

707000883

Unavailable

29

Rubber Isolator

707000949

Unavailable

30

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

31

Hex. Elastic Stop Nut M8

232581414

Unavailable

32

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

33

Norma Clamp

293650091

Unavailable

34

AIR INLET - Call your local BRP dealership

706600008

Unavailable

35

Tie-rap Mount (square - self-adhsive)

293750040

Unavailable

36

Flat Washer

250200082

Unavailable

37

WATER DEFLECTOR - Call your local BRP dealership

707000779

Unavailable

38

Tuflok Plastic Rivet

293150230

Unavailable

39

Adaptor

707000789

Unavailable

40

Norma Gear Clamp

293650118

Unavailable

41

AIR OUTLET ASS'Y - Call your local BRP dealership

707000459

Unavailable

42

Panel Nut M6 X 1.0

250100198

Unavailable

43

Lever

707000691

Unavailable

44

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

46

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

47

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

48

THREADED ROD - Call your local BRP dealership

707000579

Unavailable

49

Hex. Nut M8

232081414

Unavailable

50

PIVOT - Call your local BRP dealership

707000575

Unavailable

51

BUSHING - Call your local BRP dealership

707000576

Unavailable

52

BALL BEARING - Call your local BRP dealership

293350039

Unavailable

53

Hex. Flange Screw M6 X 25

207662544

Unavailable

54

SPRING - Call your local BRP dealership

707000435

Unavailable

55

Lever Arm

707000783

Unavailable

56

Loctite 243, 10 ml

293800060

Unavailable

57

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

58

RH Ball Joint

707001959

Unavailable

59

Washer

506151252

Unavailable

60

Hex. Elastic Stop Nut M8

232581414

Unavailable

61

Cover OPS

707000410

Unavailable

62

Hex. Flange Screw M6 X 12

210261250

Unavailable
