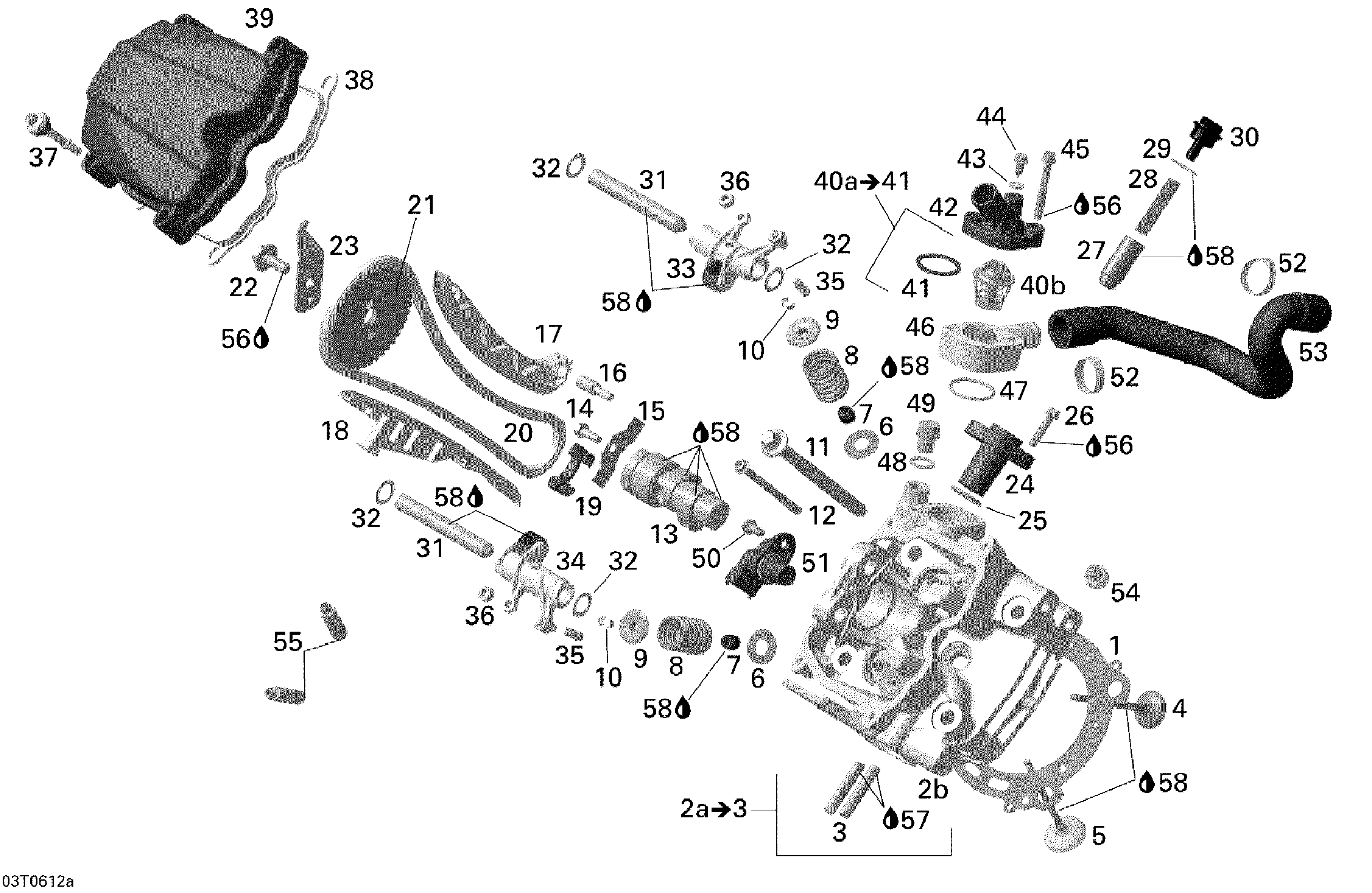

Can-Am Outlander 650 XT 4 X 4, 2006 Cylinder Head, Front Diagram

#

Description
Price

1

Cylinder Head Gasket | 330HO

420630850

$58.18

2a

Cylinder Front Ass'y | Includes 2a to 3

420613534

$675.34

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$12.15

4

Intake Valve 31MM

420254359

$34.30

5

Exhaust Valve 27MM

420254368

$66.39

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420230515

$11.54

8

Valve Spring

420239295

$13.18

9

Valve Spring Retainer

420254132

$13.18

10

Cotter Valve

420254120

$3.88

11

Torx Screw M10X140

420641551

$13.18

12

Torx Flange Screw M6 X 85

420641228

$7.01

13

CAMSHAFT - Call your local BRP dealership

420620023

Unavailable

14

Torx Flange Screw M6 X 16

420641048

$2.82

15

Holding Strip

420627743

$17.13

16

Bearing Screw M6

420240943

$4.16

17

Chain Tension Guide

420436015

$23.10

18

Chain Guide

420236584

$7.09

19

Chain Guide

420236351

$13.70

20

Silent Chain

420297063

$61.91

21

Camshaft Sprocket

420254434

$35.04

22

Hex. Collar Screw M8 X 20 | 330HO

420241721

$7.01

23

Trigger

420664255

Unavailable

24

Chain Tensioner Housing

420236510

$10.76

25

O-Ring

420430373

$3.01

26

Torx Flange Screw M6 X 25

420641238

$3.07

27

Chain Tensioner Plunger

420236521

$14.04

28

Spring

420238120

$7.01

29

O-Ring

420250890

$2.87

30

Plug Screw

420641150

$7.01

31

Pin #12, Small, M6 X 90

420229712

$14.90

32

Shim

420944382

$3.88

33

Inlet Rocker Arm

420254907

$134.30

34

Exhaust Rocker Arm

420254911

$137.28

35

Adjustment Screw M6 X 0.75

420241337

$4.75

36

Hex Nut M6

420242913

$0.51

37

Hex Screw M6 X 30

420440568

$8.15

38

Gasket

420630260

$8.09

39

Valve Cover

420610393

$25.34

40a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$48.48

40b

Not Available As Spare Part - Friction Washer

Unavailable

41

Thermostat Gasket

420650300

$8.09

42

Thermostat Cover

420222696

$3.00

43

Gasket Ring

420650255

$3.88

44

Screw M5 X 16

420441621

$3.01

45

Torx Flange Screw M6 X 45

420641198

$3.88

46

Connection Socket

420222894

$45.49

47

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$9.03

48

Copper Washer

420250640

$0.93

49

Plug screw

420841924

$13.18

50

Torx Flange Screw M6 X 16

420641048

$2.82

51

Camshaft Position Sensor Ass'y

420664046

$81.31

52

Clamp

420251578

$8.09

53

Water Tube

420822353

$18.63

54

Spark Plug, NGK DCP-R8E

715900637

$6.49

55

Valve Guide

420254374

$28.99

56

Loctite 243, 10 ml

293800060

$21.49

57

Sealant Loctite 648

219703000

$41.01

58

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
