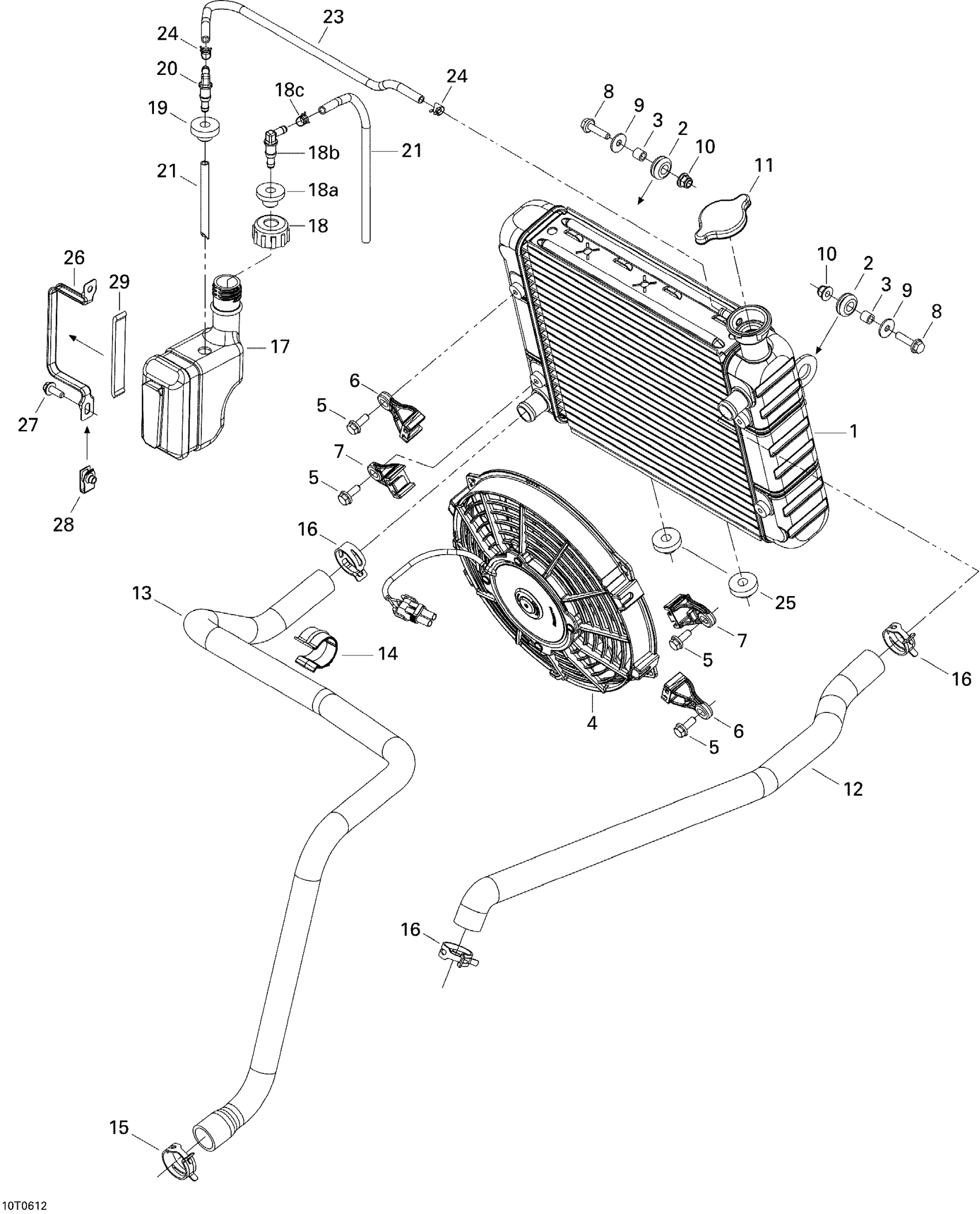

Can-Am Outlander 650 XT 4 X 4, 2006 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200120

Unavailable

2

Grommet

709000582

$4.25

3

Bushing

293900105

$6.07

4

Fan

709200124

$251.46

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

6

FAN SUPPORT - Call your local BRP dealership

709200125

Unavailable

7

FAN SUPPORT - Call your local BRP dealership

709200126

Unavailable

8

Hex. Flange Screw M6 X 25

207662544

$0.61

9

Flat Washer

250200082

$0.40

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Radiator Pressure Cap

709200207

$21.61

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200130

Unavailable

13

RADIATOR OUTLET HOSE - Call your local BRP dealership

709200131

Unavailable

14

Retainer

275500526

$4.28

15

Norma Spring Clamp

293650108

$3.88

16

Norma Spring Clamp

293650109

$3.88

17

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

18

Cap

709200586

$10.12

18a

Grommet

293830136

$8.04

18b

Male Connector

414580700

$3.88

18c

Spring Clamp

414554800

$0.81

19

Grommet

709200285

$8.13

20

Elbow Male Connector

414580600

$4.01

21

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

23

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

24

Spring Clamp

414554800

$0.81

25

Grommet

709200285

$8.13

26

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

27

Hex. Flange Screw M6 X 16

210261650

$1.40

28

Panel Nut M6 X 1.0

250100198

$1.99

29

Gasket, Neoprene 2000Mm Long

219704476

$14.51
