- Outlander 650 STD 4 X 4, 2006
09- Body And Accessories 2, STD

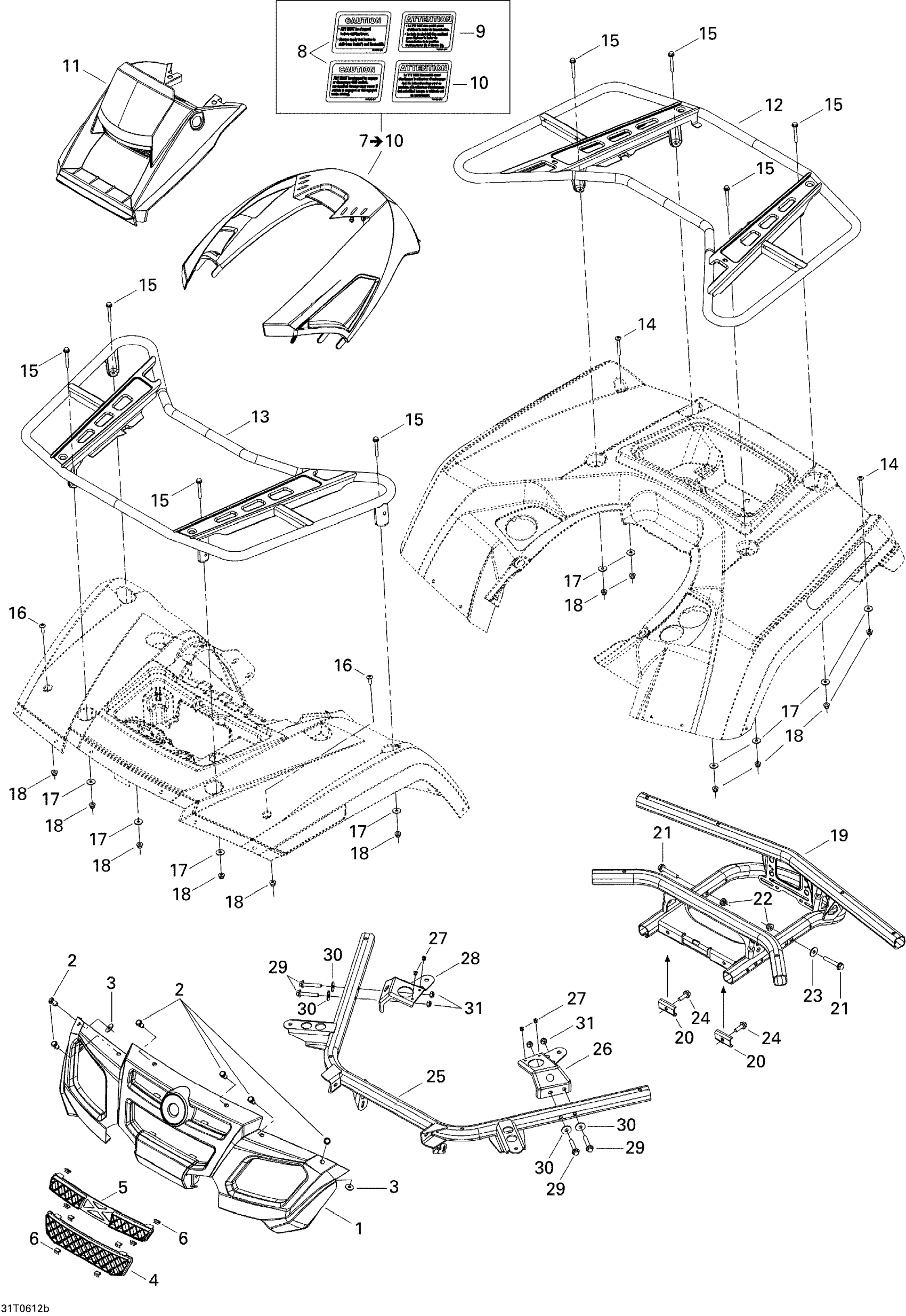

Can-Am Outlander 650 STD 4 X 4, 2006 09- Body And Accessories 2, STD Diagram
#
1
FRONT FASCIA, RED - Call your local BRP dealership | Viper Red
705001313
Unavailable
1
FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow
705001991
Unavailable
1
FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green
705001992
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Washer
506151252
Unavailable
4
LOWER GRILL - Call your local BRP dealership
705001679
Unavailable
5
UPPER GRILL - Call your local BRP dealership
705001901
Unavailable
6
Clip | Europe Models
517306751
Unavailable
7
Central Panel Kit, Red | Includes 7 to 10, Viper Red
703500597
Unavailable
7
Central Panel Kit, Yellow | Includes 7 to 10, Yellow
715001274
Unavailable
7
CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green
703500599
Unavailable
8
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
9
Caution Decal, Shifting Lever | French Version
704900475
Unavailable
10
CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version
704900476
Unavailable
11
Dashboard
705003490
Unavailable
12
Rear Luggage Rack
705002617
Unavailable
13
Front Luggage Rack
705002616
Unavailable
14
Torx Truss Screw M6 X 50
250000749
Unavailable
15
Hex. Flange Screw M6 X 50
207665044
Unavailable
16
Torx Screw M6 X 20
250000722
Unavailable
17
Flat Washer
224061201
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Rear Support
705003656
Unavailable
20
U Reinforcement
705003647
Unavailable
21
Hex. Flange Screw M8 X 50
207685044
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Flat Washer 8 mm
234082410
Unavailable
24
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
25
FRONT SUPPORT - Call your local BRP dealership
705003655
Unavailable
26
LH ANCHOR PLATE - Call your local BRP dealership
705000692
Unavailable
27
Pop Rivet 3/16"
390402300
Unavailable
28
RH Anchor Plate
705002997
Unavailable
29
Hex. Flange Screw M8 X 45
207684544
Unavailable
30
Flat Washer 8 mm
234082410
Unavailable
31
Hex. Elastic Stop Nut M8
232581414
Unavailable
