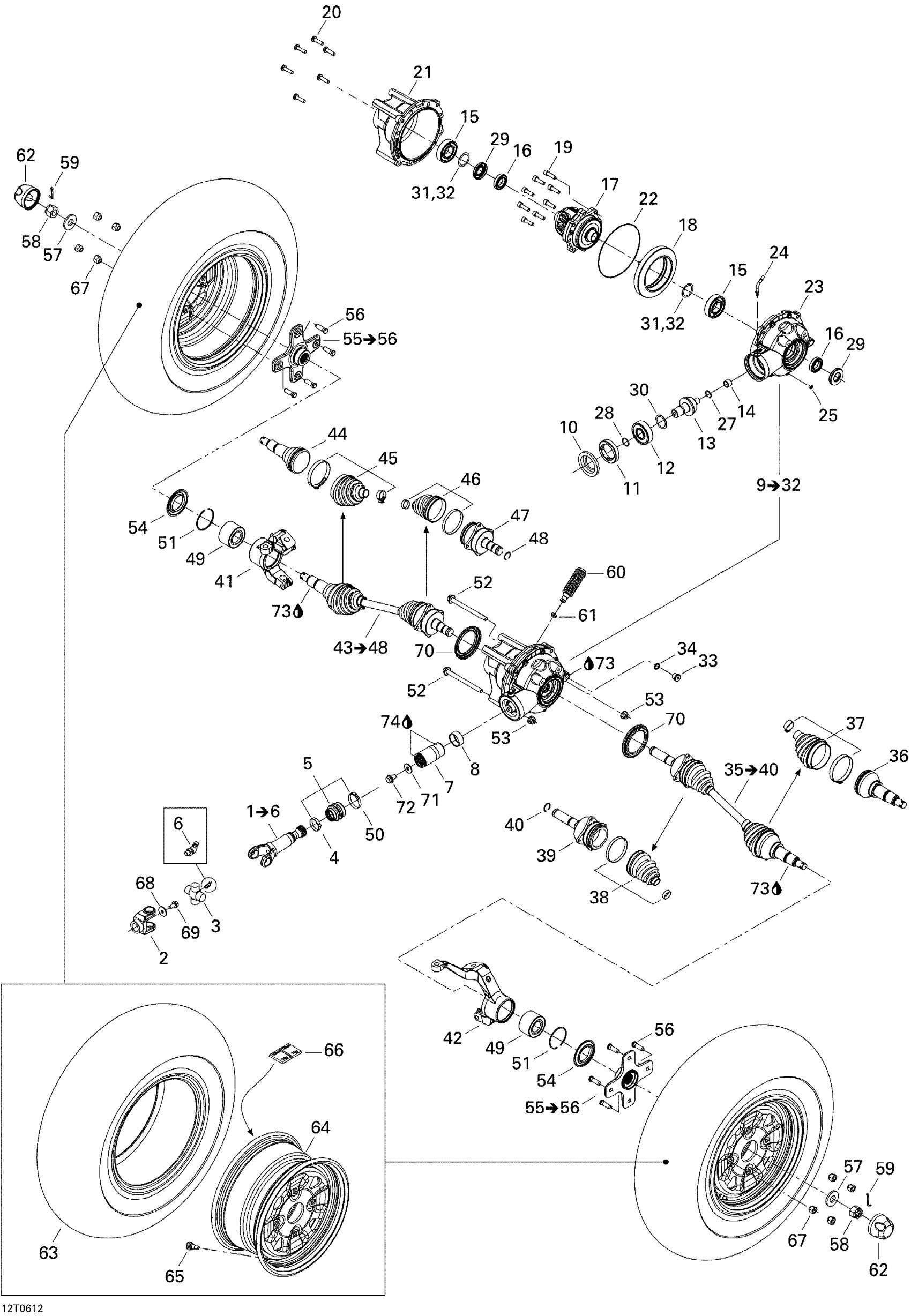

Can-Am Outlander 650 STD 4 X 4, 2006 Drive System, Front STD Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$251.46

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$65.64

4

Collar | 4X4

705400148

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$101.46

8

Wear Ring | 4X4

705400036

$24.60

9

Front Differential | Includes 8 to 31

703500907

$1,410.42

10

Oil Seal | 4X4

705401481

$17.88

11

Nut | 4X4

705401603

$33.55

12

Ball Bearing | 4X4

705500260

$29.82

13

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

14

Needle Bearing | 4X4

705500261

Unavailable

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

293350044

$29.82

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

18

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

20

Screw | 4X4

705401601

$8.67

21

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

22

Seal | 4X4

705500265

$15.64

23

Front Cover

705400646

Unavailable

24

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

25

Drain Plug | 4X4

705500894

$10.24

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

28

O-Ring | 4X4

705500267

$6.06

29

Gasket | 4X4

705401618

$17.13

30

Pinion Gear Shim 1.67 mm

705502061

$15.64

31

Shim | 4X4

705401604

$51.46

32

Shim | 4X4

705401604

$51.46

33

Fill Level Plug | 4X4

705500504

$8.73

34

Copper Washer | 4X4

705500506

$0.42

35

RH Half Shaft | Includes 34 to 39

705401579

$226.84

36

CV Joint

705500560

Unavailable

37

Wheel Boot Kit

705400511

$39.52

38

Differential Boot Kit

705400512

$39.52

39

RH PLUNGING JOINT - Call your local BRP dealership

705400294

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH KNUCKLE - Call your local BRP dealership

705400817

Unavailable

42

RH KNUCKLE - Call your local BRP dealership

705400819

Unavailable

43

LH Half Shaft | Includes 42 to 47

705401578

$226.84

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$39.52

46

Differential Boot Kit

705400512

$39.52

47

LH Plunging Joint

705400295

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$50.34

50

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

51

Circlip

293370019

$4.68

52

Hex. Flange Screw M10 X 125

230602546

$6.99

53

Hex. Flange Elastic Nut M10

233201436

$2.00

54

Wear Sleeve | 4X4

705501121

$6.73

55

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

56

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

57

Conical Spring Washer M18

250200171

$6.06

58

Hex. Flange Castellated Nut M18

232291413

$3.24

59

Cotter Pin

250400036

$2.00

60

Rubber Bellow | 4X4

705400552

$5.84

61

Oetiker Clamp

293650042

$2.82

62

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

63

Tire | STD

705401331

$143.25

64

RIM_12 INCH X 6 - Call your local BRP dealership | Outlander STD & XT

705400355

Unavailable

65

Rim Valve With Cap

705400193

$6.49

66

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

67

Steel Wheel Nut

250100042

$3.07

68

Washer

211200041

$3.01

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

70

Wear Sleeve

705400780

$6.73

71

Flat Washer M10 | 4X4

250200014

$1.34

72

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

73

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

74

Synthetic Grease, 400 G

293550010

Unavailable
