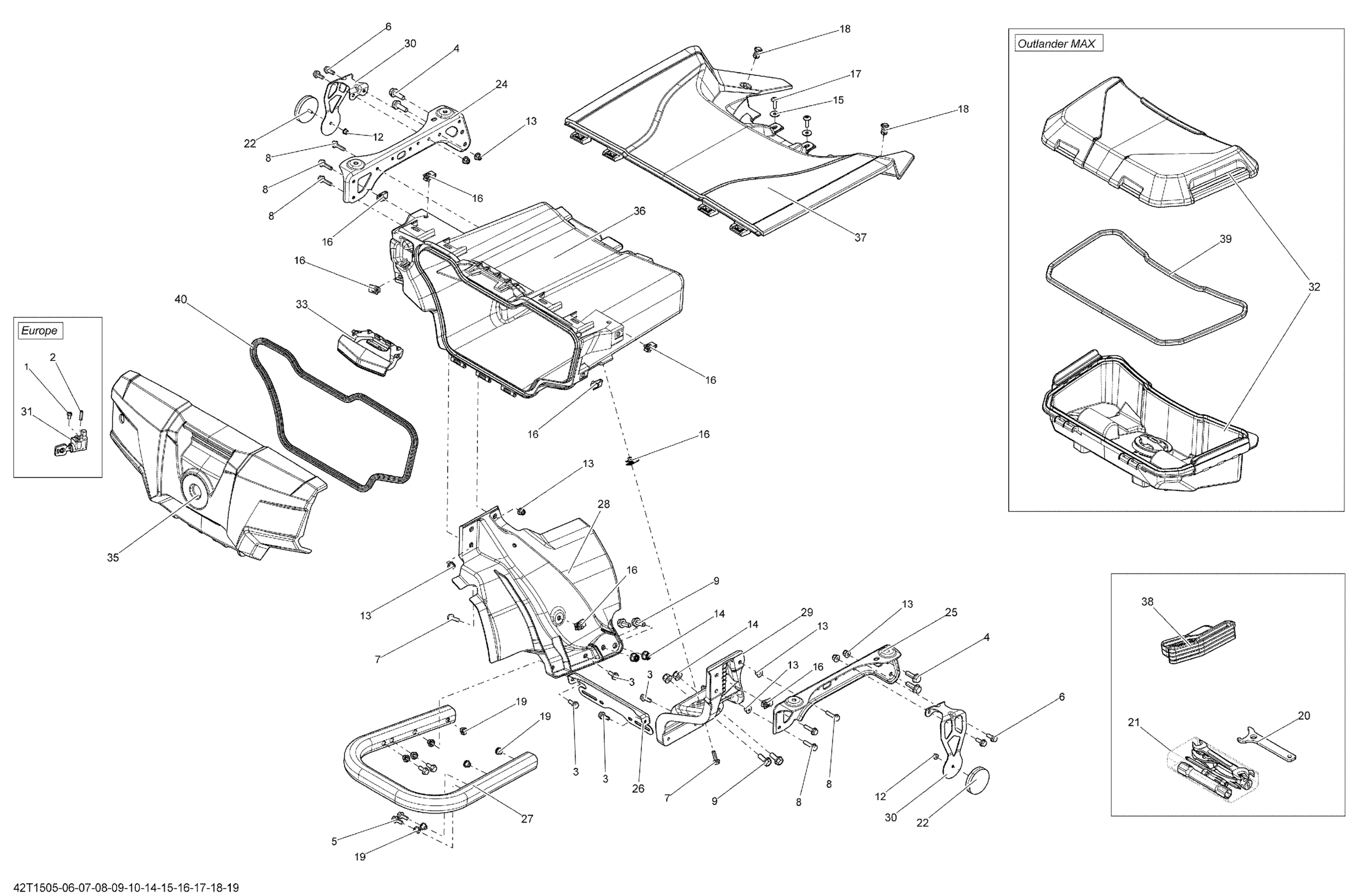

Can-Am Outlander 650 EFI, 2015 Rear Cargo Box _42T1506 Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.43

2

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

3

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

5

Hex. Flange Screw M6 X 16

207661634

$2.11

6

Hex. Flange Screw M6 X 16

207661644

$0.74

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Hex. Flange Screw M8 X 20

207682044

$1.15

12

Flange Elastic Nut M5

233251434

$2.00

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Stainless Steel Flat Washer

234062670

$2.11

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Torx Truss Screw M6 X 25

250000807

$2.11

18

Tuflok Plastic Rivet

293150230

$1.47

19

Threaded Insert M6 X 1.0

250100242

Unavailable

20

Adjustment Wrench

529000035

$2.09

21

Tool Kit

704700162

$44.99

22

Red Reflector

705011221

$14.49

24

LH Support

705004563

$34.99

25

RH Support

705004564

$34.99

26

Plate Support

705004806

$13.99

27

Rear Bumper Ass'y | Model- Europe

715007915

$46.49

27

Rear Bumper Ass'y | Model- International

715005832

$55.99

27

Rear Bumper Ass'y

715001564

$55.99

28

LH Cargo Support

705006997

$55.99

29

RH Cargo Support

705006998

$55.99

30

Reflector Support | Except Europe

705202576

$9.29

31

Padlock with Key

707000666

$25.99

32

Not Available As Spare Parts

XXX

Unavailable

33

Handle Latch

708201250

$14.49

35

Rear Panel | Europe

708300511

$55.99

35

Rear Panel

708300150

$38.99

36

Rear Storage Box

708300674

$93.99

37

Rear Storage Box Cover

708301212

$51.99

38

Remote Control

710002270

$56.99

38

Remote Control

710002270

$56.99

39

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

40

NEOPRENE SEAL - Call your local BRP dealership

293250275

Unavailable
