Description

Price

1

Seat Assembly | Includes 1 to 6

708001649

$461.51

2

Rubber Stopper

708000759

$3.61

3

Seat Cover

708000538

$87.66

4

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

5

REFLECTING SHEET - Call your local BRP dealership

708000955

$4.69

6

HEAT SHIELD - Call your local BRP dealership

708000957

$4.58

7

Bumper Rubber

708000760

$9.11

8

Latch, Black

708000144

$11.09

9

Hex. Screw M6 X 110

230061034

$1.74

10

Spring

708000369

$8.60

11

Push Nut

732610072

$1.72

12

Seat Reinforcement

708000629

$32.28

13

Hex. Flange Screw M6 X 12

210261250

$1.56

14

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

15

REFLECTING SHEET - Call your local BRP dealership

708000955

$4.69

16

HEAT SHIELD - Call your local BRP dealership

708000957

$4.58

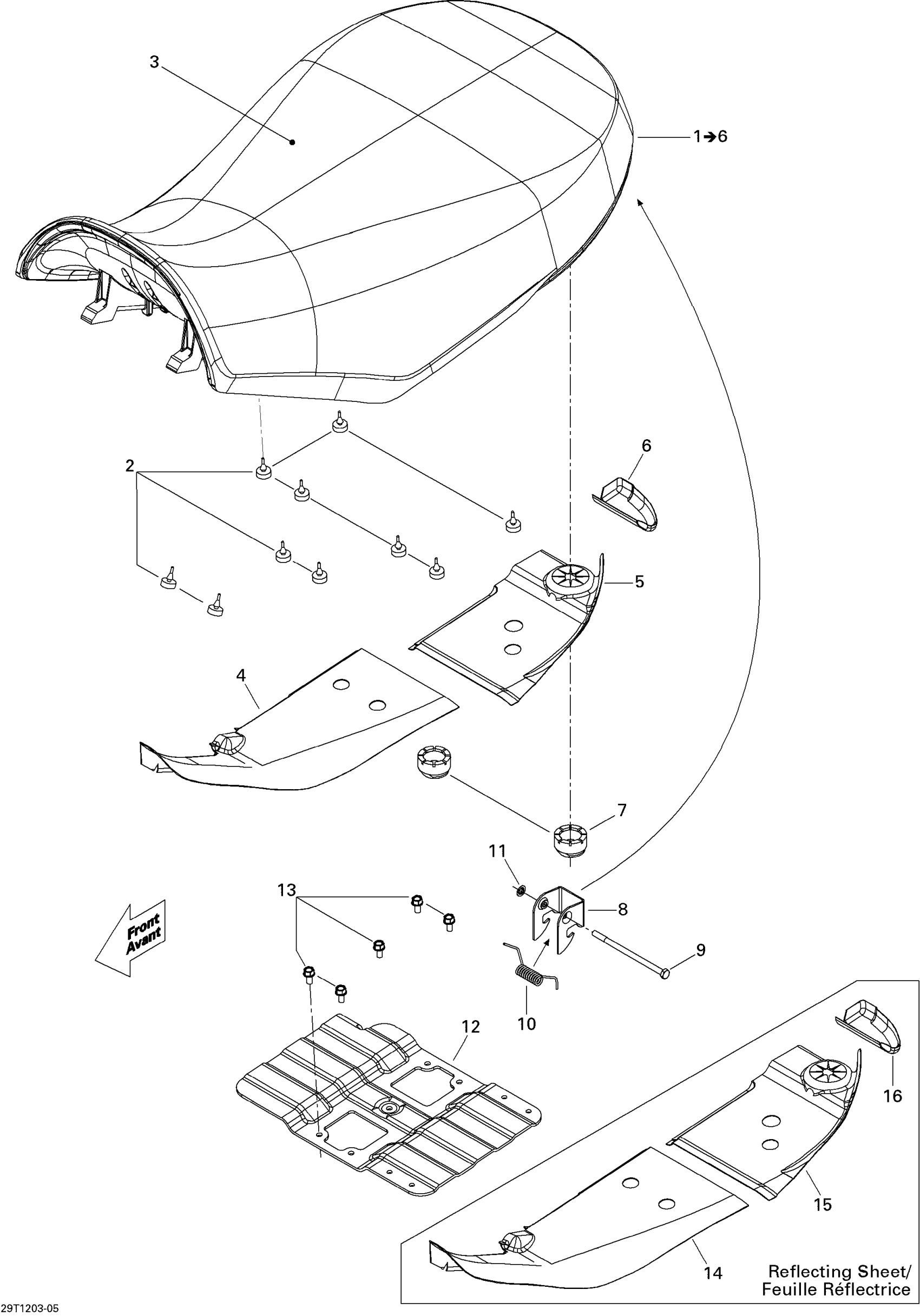

Can-Am Outlander 500EFI STD & XT, 2012 Seat Diagram

REFLECTING SHEET - Call your local BRP dealership

REFLECTING SHEET - Call your local BRP dealership
