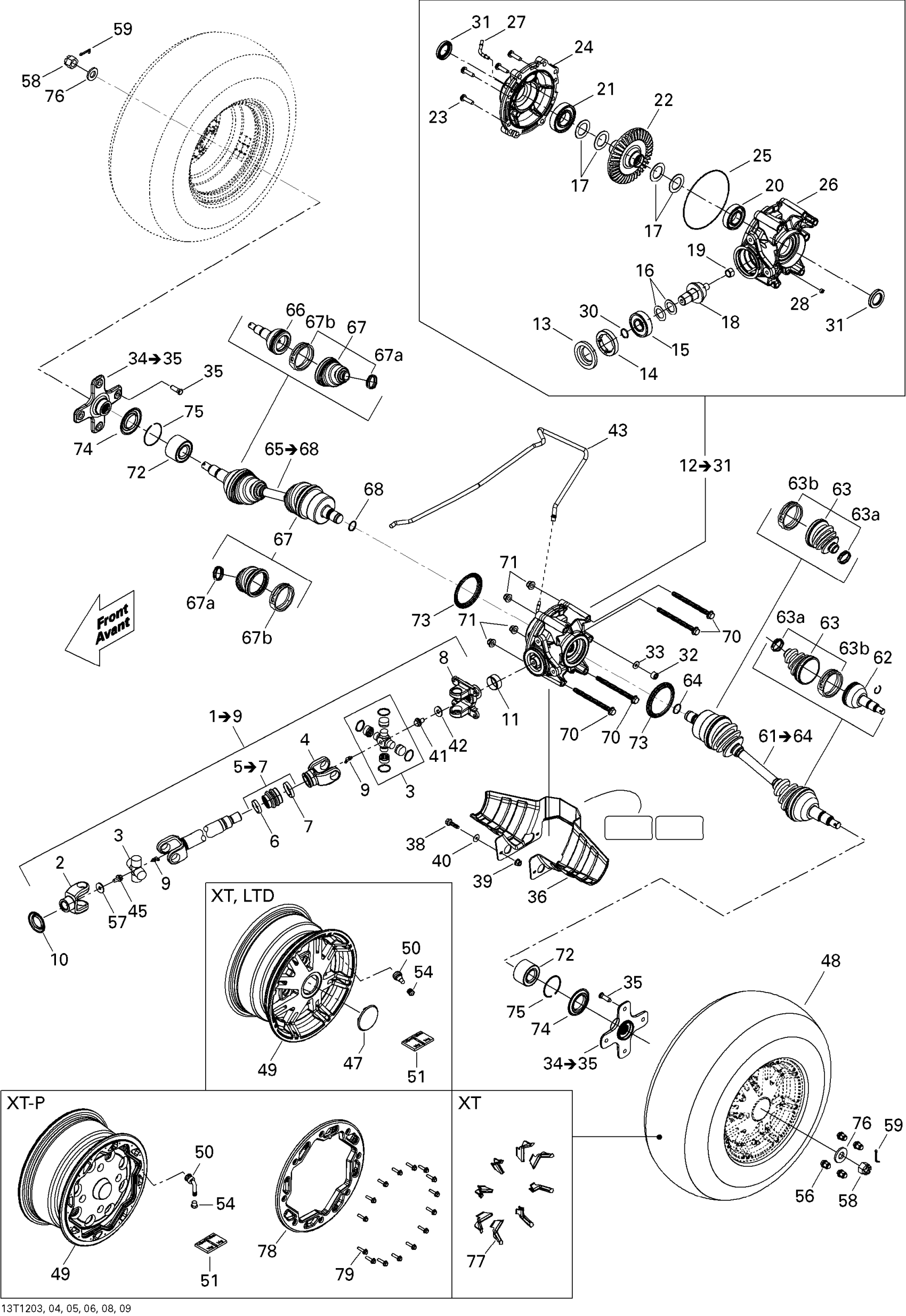

Can-Am Outlander 500EFI STD & XT, 2012 Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$415.35

2

Fixe Yoke

715900101

$27.66

3

Universal Joint

715900326

$69.20

4

SLIDING JOINT - Call your local BRP dealership

705501072

$96.89

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

7

Not Available As Spare Part - Friction Washer

Unavailable

8

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

9

GREASE FITTING - Call your local BRP dealership

705500841

$5.35

10

Protector

705501123

$7.37

11

Wear Ring | 4X4

705400036

$25.35

12

Differential Kit | Includes 10 to 29

703501033

$1,015.35

13

Oil Seal | 4X4

705401481

$18.43

14

Nut

705502059

$32.28

15

Ball Bearing | 4X4

705500260

$30.74

16

Pinion Gear Shim .022"

705500075

Unavailable

16

Pinion Gear Shim 1.67 mm

705502061

$16.12

16

Pinion Gear Shim

705501162

$15.17

17

Differential Shim 0.02 mm

705502060

$13.83

18

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

19

Needle Bearing

705501408

$66.89

20

Ball Bearing

705502737

$46.12

21

Ball Bearing

705502738

$56.89

22

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

23

Screw | 4X4

705401601

$9.29

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

$221.51

25

Seal | 4X4

705500265

$16.12

26

PINION REAR COVER - Call your local BRP dealership

705501395

$310.74

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

28

Drain Plug | 4X4

705500894

$11.06

30

O-Ring | 4X4

705500267

$6.25

31

Oil Seal

705501996

$20.74

32

Fill Level Plug | 4X4

705500504

$7.61

33

Copper Washer | 4X4

705500506

$0.36

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

36

Protector Kit | Includes 38 to 39

703500722

$64.58

38

Hex. Flange Screw M6 X 25

207662544

$0.53

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Flat Washer

250200082

$0.35

41

Hex Flange Screw M12 X 16

250001039

$1.74

42

Flat Washer M12

250200102

$1.74

43

Polyurethane Hose 10000Mm Long

219704410

$46.12

45

Hex Flange Screw M12 X 16

250001039

$1.74

47

WHEEL CAP - Call your local BRP dealership

705400680

$11.92

48

TIRE_25X11R12 REAR - Call your local BRP dealership | XT

705500933

Unavailable

48

Rear Tire | XT

705500598

Unavailable

48

Tire 25X10R12 MST | Traxter CVT STD

705503225

$147.66

49

RIM_12 INCH X 7,5 - Call your local BRP dealership | XT (Except Camo)

705500986

$152.28

49

RIM_12 INCH X 7,5 - Call your local BRP dealership | XT Camo, XT-P

705501019

$153.82

49

RIM_12 INCH X 7,5 - Call your local BRP dealership | STD

705501188

$143.82

50

Rim Valve With Cap

705400193

$6.69

51

1/2 Oz Weight

219704465

$4.35

54

Valve Cap

293000110

$1.18

56

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

56

Black, Wheel Nut M10 X 1.25

250100184

$2.48

57

Flat Washer M12

250200102

$1.74

58

Hex. Flange Castellated Nut M18

232291413

$2.82

59

Cotter Pin

250400036

$1.74

61

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$233.82

62

CV JOINT - Call your local BRP dealership

705500980

Unavailable

63

Boot Kit

705500870

$41.51

63a

Oetiker Clamp (27,5mm)

293650203

$10.14

63b

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

64

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

65

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$233.82

66

CV JOINT - Call your local BRP dealership

705500980

Unavailable

67

Boot Kit

705500870

$41.51

67a

Oetiker Clamp (27,5mm)

293650203

$10.14

67b

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

68

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

70

Hex. Flange Screw M10 X 135

250001041

$4.46

71

Hex. Flange Elastic Nut M10

233201434

$1.63

72

Ball Bearing

293350150

$52.99

73

Wear Ring

705501124

$7.28

74

Wear Sleeve | 4X4

705501121

$7.28

75

Circlip

293370019

$4.98

76

Conical Spring Washer M18

250200171

$5.28

77

Not Available As Spare Part - Friction Washer

Unavailable

78

Not Available As Spare Part - Friction Washer

Unavailable

79

Not Available As Spare Part - Friction Washer

Unavailable
