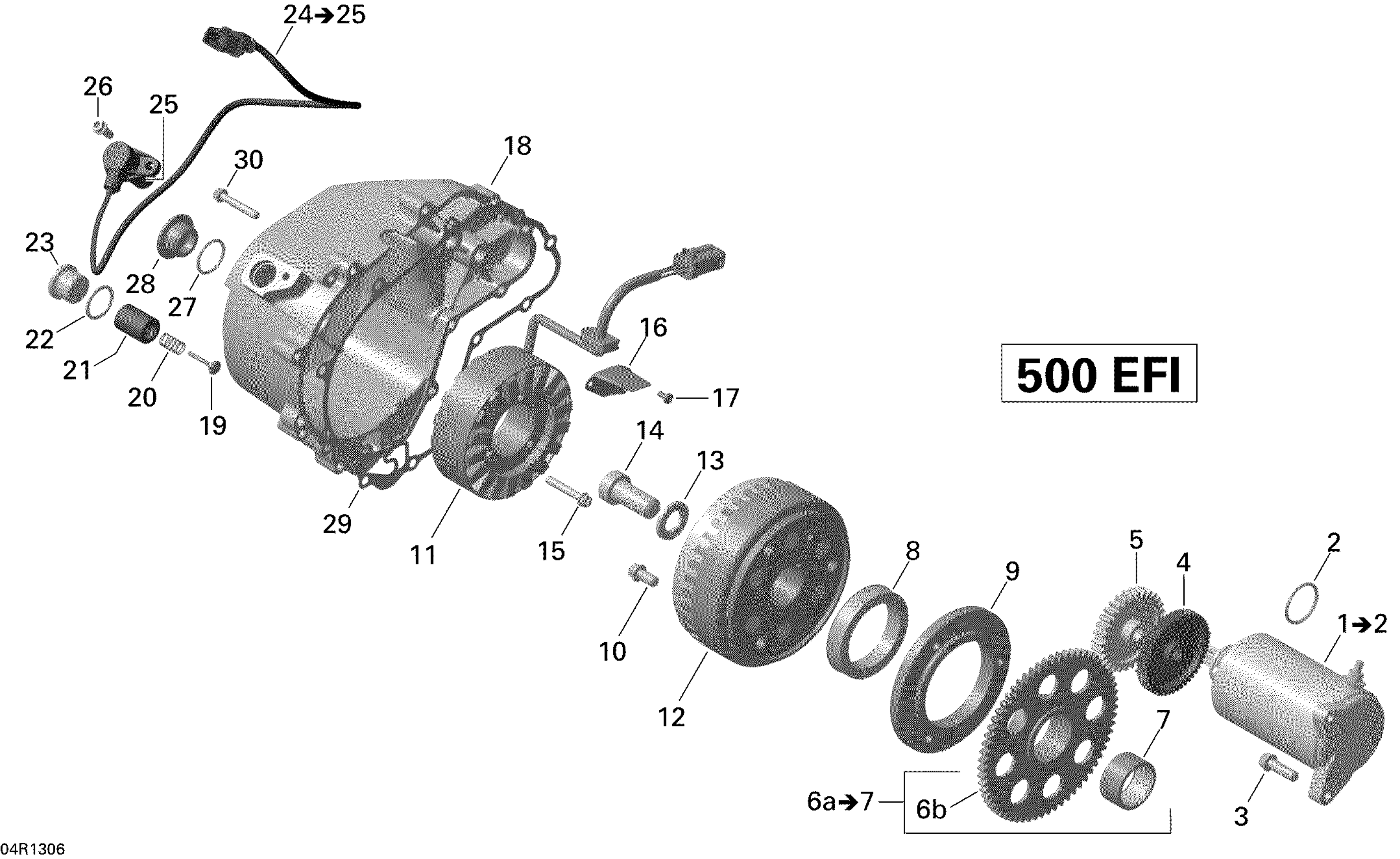

Can-Am Outlander 500EFI STD, DPS & XT, 2013 Magneto And Electric Starter Outlander Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M8 X 25

420440372

$4.12

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

6a

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

6b

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Sprag Clutch

420659111

$259.99

9

Sparg Clutch Housing

420659263

$154.99

10

Torx Flange Screw M8 X 16

420440852

$4.12

11

Stator Plate, 420W

420685920

$319.49

11

Stator Plate, 420W

420685920

$319.49

11

Stator Plate, 650W | XT, XTP

420685632

$319.49

11

Stator Plate, 650W | XT, XTP

420685632

$319.49

11

Stator Plate, 650W | XT, XTP

420685632

$319.49

11

Stator Plate, 650W | XT, XTP

420685632

$319.49

12

Flywheel, 420W | STD

420296906

$451.49

12

Flywheel, 420W | STD

420296906

$451.49

12

Flywheel, 650W | XT, XTP

420685647

$461.49

12

Flywheel, 650W | XT, XTP

420685647

$461.49

12

Flywheel, 650W | XT, XTP

420685647

$461.49

12

Flywheel, 650W | XT, XTP

420685647

$461.49

13

Shim

420627270

$4.12

14

Socket Head Screw M16 X 35

420241545

$14.28

15

Torx Flange Screw M6 X 35

420641258

$3.38

16

Interior Cable Support Ass'y

420251889

$14.30

17

Phillips Screw M4 X 8

420240196

$2.32

18

Ignition Cover

420212225

$190.49

19

Pressure Relief Valve

420656370

$19.19

20

Spring

420939481

$4.99

21

Housing

420256487

$7.41

22

Gasket Ring

420650465

$13.16

23

Plug Screw

420640271

$13.77

24

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

25

O-Ring

420431580

$14.83

26

Torx Flange Screw M6 X 16

420641048

$2.96

27

O-Ring

420430782

$5.39

28

Plug Screw M24X 1.5

420241633

$7.41

29

Gasket

420651203

$35.99

30

Torx Flange Screw M6 X 35

420641258

$3.38
