Description

Price

10a

Radiator

709200286

$476.99

10b

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

20

Grommet

709000582

$4.69

30

Bushing

293900105

$7.65

40

Hex. Flange Screw M6 X 20

207662034

$2.11

50

Fan Ass'y

709200563

$249.99

70

Air Deflector | Outlander

709200393

$15.87

75

Flat Washer 8 mm

234081410

$0.83

76

Tuflok Plastic Rivet

293150230

$1.47

80

Hex. Flange Screw M6 X 25

207662534

$2.11

90

Flat Washer

250200082

$0.42

100

Flange Elastic Nut M6

233261434

$4.44

120

Radiator Inlet Hose

709200278

$34.99

121

Engine Outlet Hose

709200310

$19.49

140

Radiator Outlet Hose

709200391

$35.99

145

Tubing 35 MM 1000MM Long

219704428

$10.99

150

Retainer

275500590

$9.69

160

Gear Clamp

509000162

$7.29

170

Norma Spring Clamp

293650166

$4.44

180

Norma Spring Clamp

293650108

$4.12

185

Norma Spring Clamp

293650109

$4.12

190

Coolant Tank

709200297

$55.99

200

Radiator Pressure Cap

709200207

$25.49

250

Polyurethane Hose 10000Mm Long

219704410

$56.99

260

Spring Clamp

414554800

$0.88

280

Grommet

709200285

$9.69

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

310

Panel Nut M6 X 1.0

250100198

$2.11

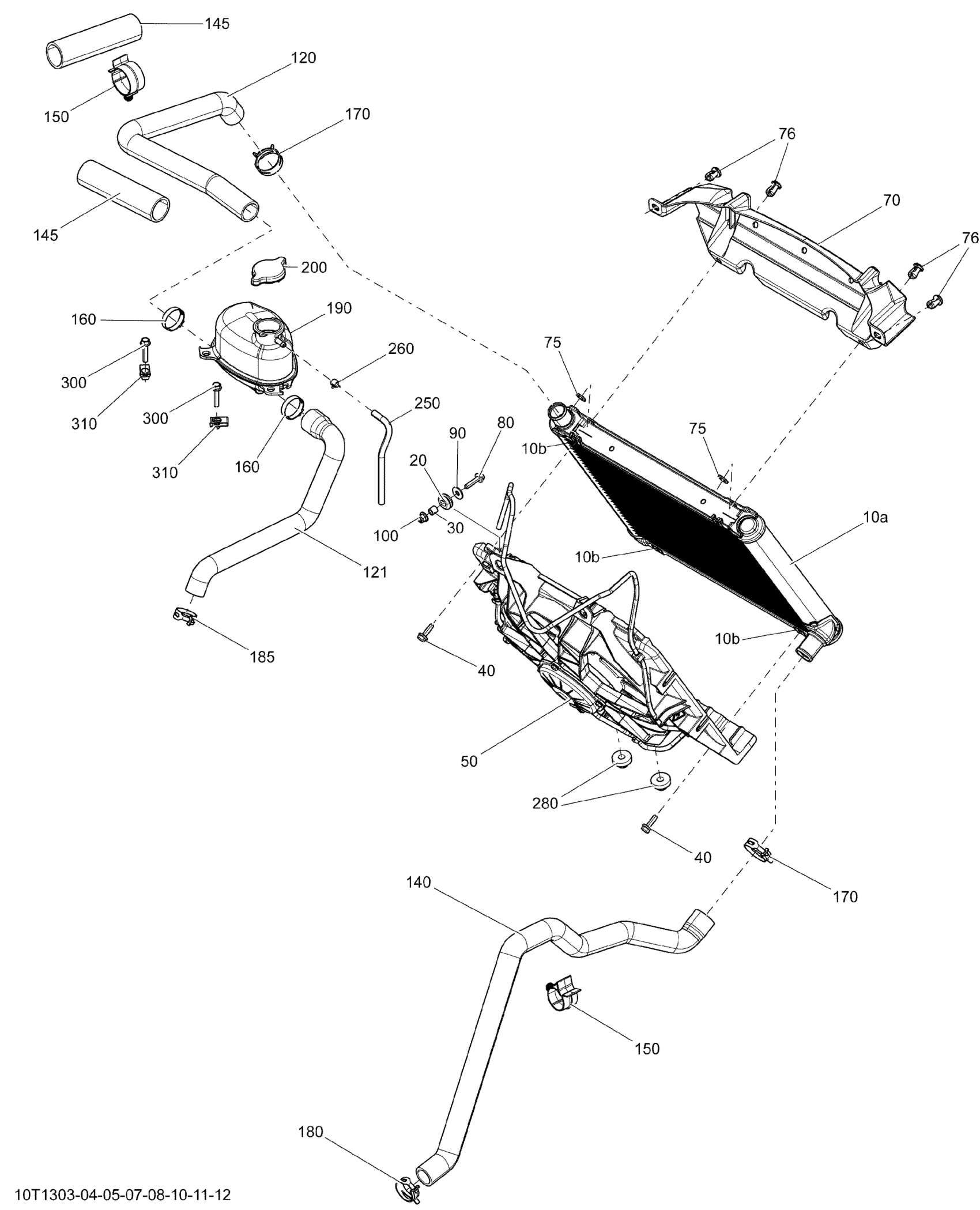

Can-Am Outlander 500EFI STD, DPS & XT, 2013 Cooling System Diagram

Radiator

CLIP NUT M6 X 1 - Call your local BRP dealership

Grommet

Bushing

Hex. Flange Screw M6 X 20

Fan Ass'y

Air Deflector | Outlander

Flat Washer 8 mm

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 25

Flat Washer

Flange Elastic Nut M6

Radiator Inlet Hose

Engine Outlet Hose

Radiator Outlet Hose

Tubing 35 MM 1000MM Long

Retainer

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Tank

Radiator Pressure Cap

Polyurethane Hose 10000Mm Long

Spring Clamp

Grommet

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Panel Nut M6 X 1.0
