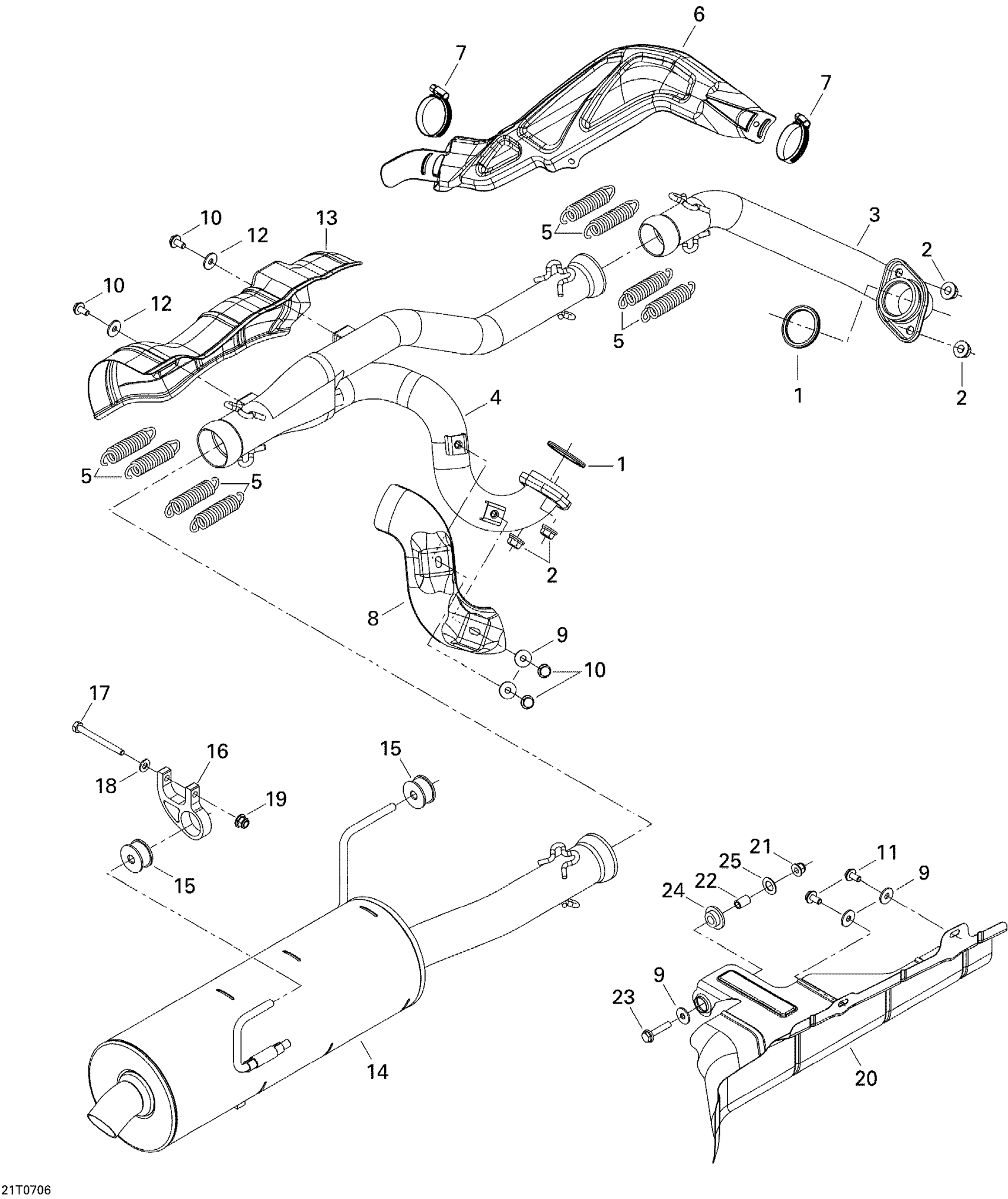

Can-Am Outlander 500 XT 4 X 4, 2007 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

Unavailable

2

Hex. Flange Nut M8

233081416

Unavailable

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Rear Tuned Pipe

707600270

Unavailable

5

Spring

415107100

Unavailable

6

Heat Shield

707600889

Unavailable

7

Norma Gear Clamp

293650098

Unavailable

8

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

9

Flat Washer

250200082

Unavailable

10

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

11

Hex. Flange Screw M6 X 12

210261250

Unavailable

12

Flat Washer

224081301

Unavailable

13

REAR HEAT SHIELD - Call your local BRP dealership

707600344

Unavailable

14

MUFFLER - Call your local BRP dealership

707600271

Unavailable

15

Anti-Vibration Rubber

707600702

Unavailable

16

MUFFLER BRAKET - Call your local BRP dealership

707600411

Unavailable

17

Hex. Screw M6 X 65

207066544

Unavailable

18

Flat Washer

224061121

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Protector

707600621

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

22

Sleeve

293900078

Unavailable

23

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

24

Grommet

705003932

Unavailable

25

Washer

503175800

Unavailable
