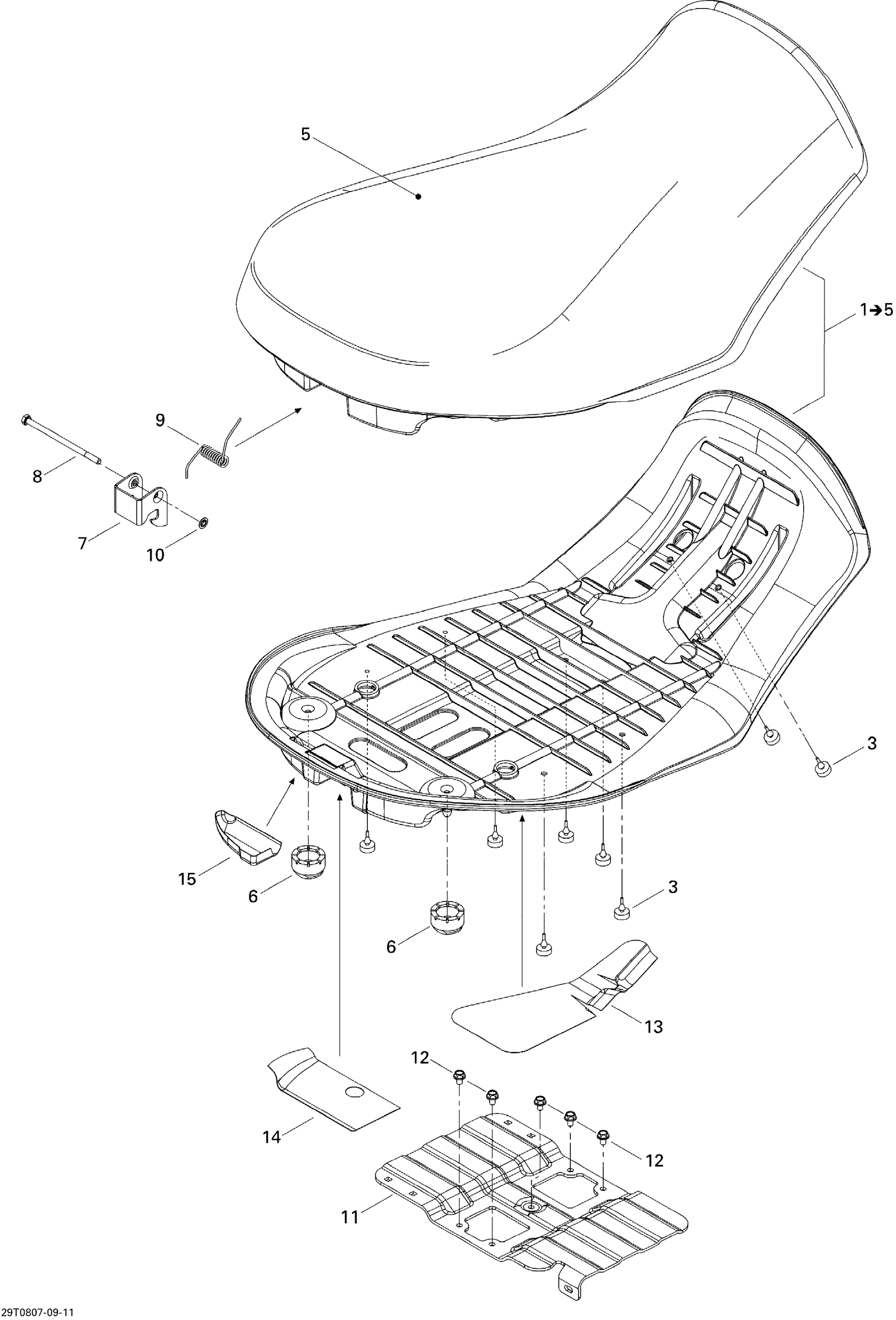

Can-Am Outlander 500 XT, 2008 09- Seat Diagram

#

Description

Price

1

Seat Assembly | Includes 1 to 6

708001649

Unavailable

3

Rubber Stopper

708000759

Unavailable

5

Seat Cover

708000538

Unavailable

6

Bumper Rubber

708000760

Unavailable

7

Latch, Black

708000144

Unavailable

8

Hex. Screw M6 X 110

230061044

Unavailable

9

Spring

708000369

Unavailable

10

Push Nut

732610072

Unavailable

11

Seat Reinforcement

708000629

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

Unavailable

13

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable
