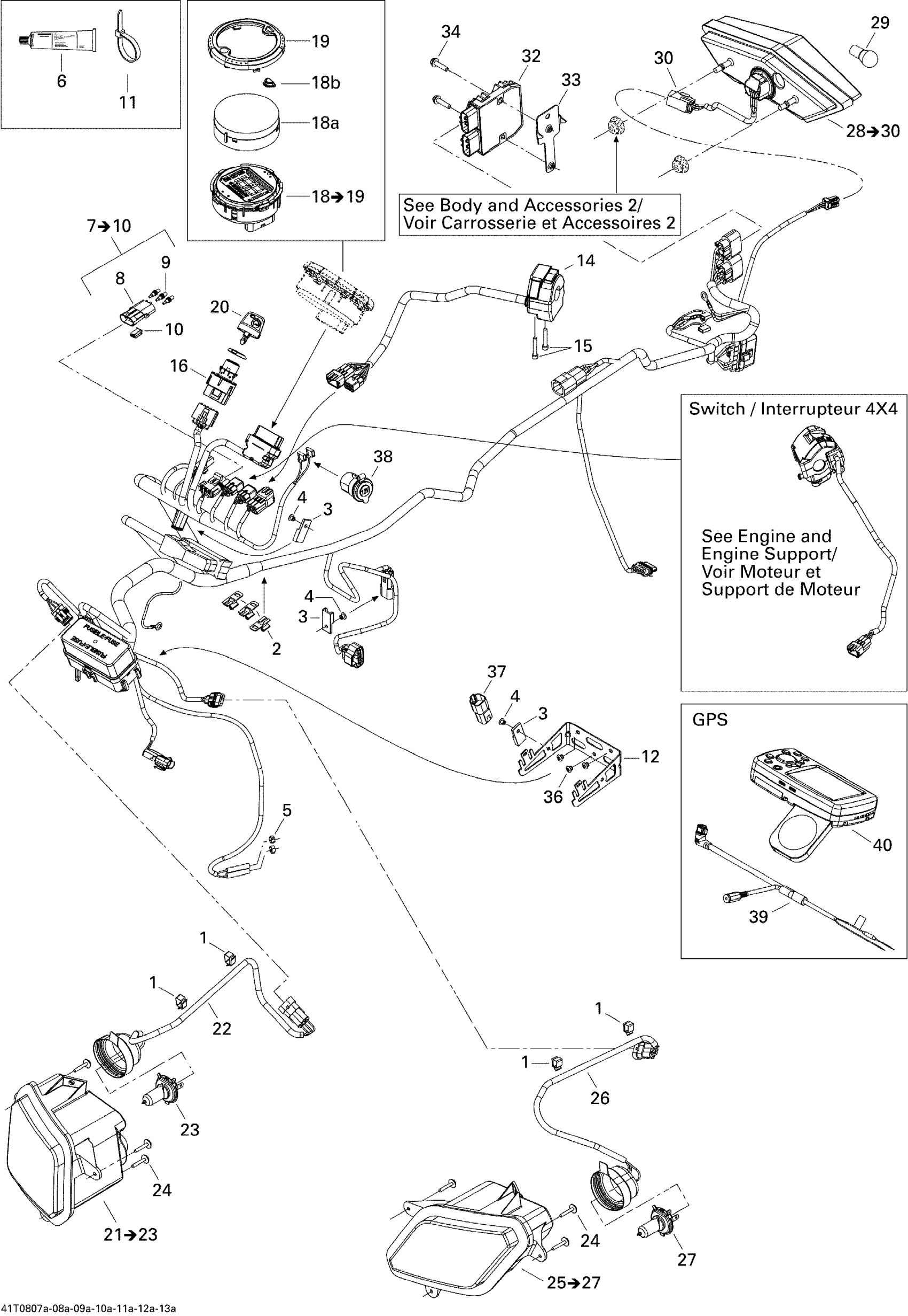

Can-Am Outlander 500 STD, 2008 Electrical Accessories 1, STD Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

5

Oetiker Clamp

293650100

$3.38

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

8

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

9

Wire Seal

278000216

$3.19

10

Clip

710000992

$4.29

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

Tie-Rap 173 mm

293750009

$1.04

11

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

11

Tie-rap 627 mm

293750041

$0.93

12

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

14

Multi-Fonction Handle

710000791

$116.49

15

Socket Head Screw M5 X 35

205053588

$1.90

16

Ignition Switch | Includes 16 to 17

710002324

$79.49

18

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

18a

Lens

415129320

$24.49

18b

Button

710001473

$13.71

19

Trim Ring

710001416

$23.99

19a

BRP Logo13 mm

704904615

$13.49

20

Black, Electronic Key

710000817

$63.49

21

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

22

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

23

Bulb, 12V 35/35W

710000871

$34.99

24

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

25

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

26

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

27

Bulb, 12V 35/35W

710000871

$34.99

28

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

29

Bulb

520000758

$9.10

30

Male Housing, 3 Circuits

515175494

$16.18

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

34

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

36

Pop Rivet 3/16"

390402400

$0.35

37

Diagnostic Connector

278002704

$19.49

38

Outlet Power Kit, 12 Volts

861507200

$36.99

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable
