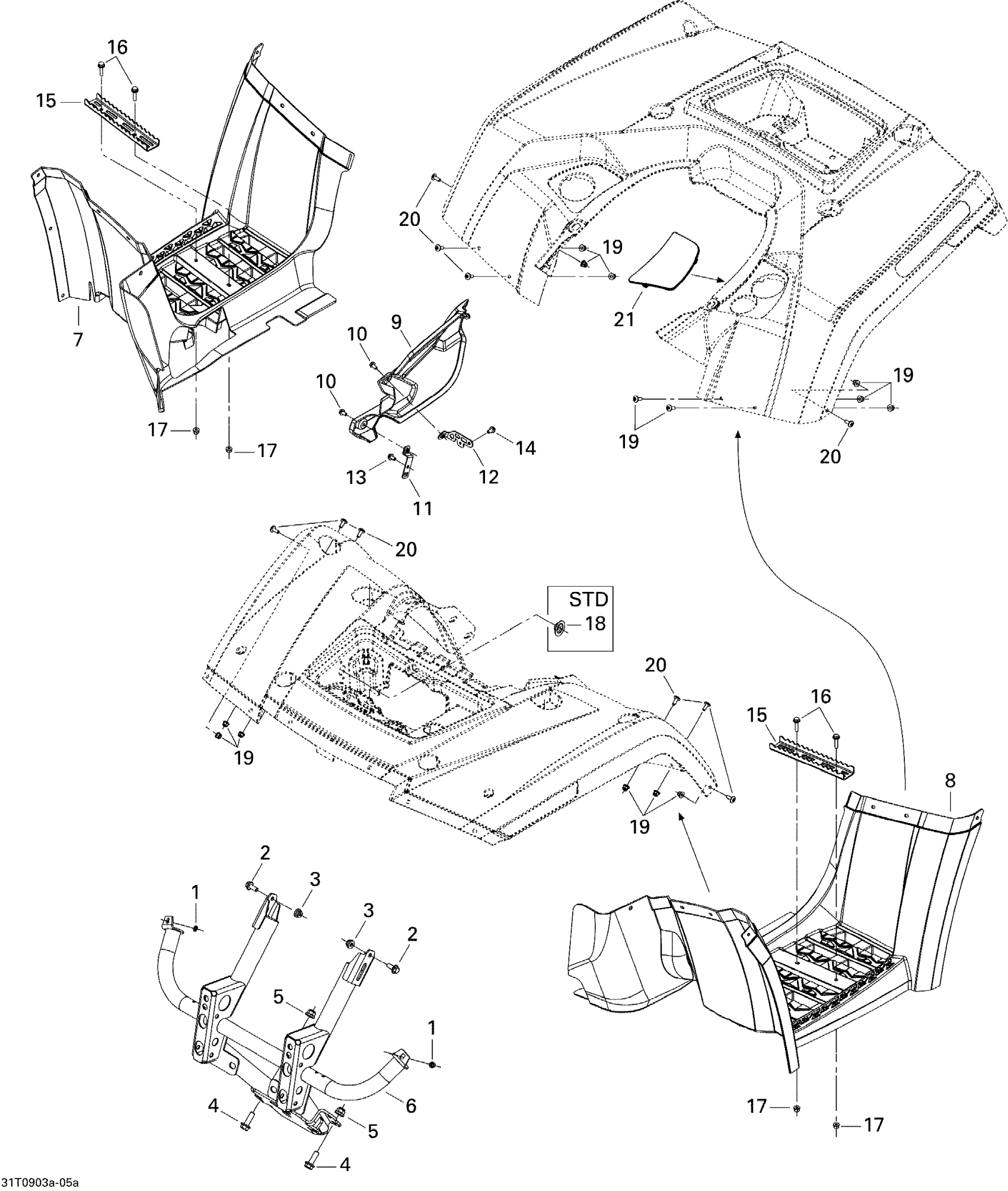

Can-Am Outlander 500 EFI XT, 2009 Body And Accessories 1, XT Diagram

#

Description
Price

1

Push Nut

732610072

$2.19

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Flange Screw M10 X 30

207603044

$2.11

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Front Bumper

705003196

$312.49

7

RH Footboard

705002485

$154.99

8

LH Footboard

705003632

$184.99

9

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.90

11

Engine Cover Support

705003646

$9.23

12

Engine Cover Support

705011461

$10.49

13

Hex. Flange Screw M6 X 12

210261250

$1.90

14

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

15

Footrest

705003648

$43.99

16

Hex. Flange Screw M6 X 25

207662554

$1.48

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Not Available As Spare Parts

XXX

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Torx Screw M6 X 16

250000755

$0.87

21

LH Rear Body Panel Cap

705017923

$13.99
