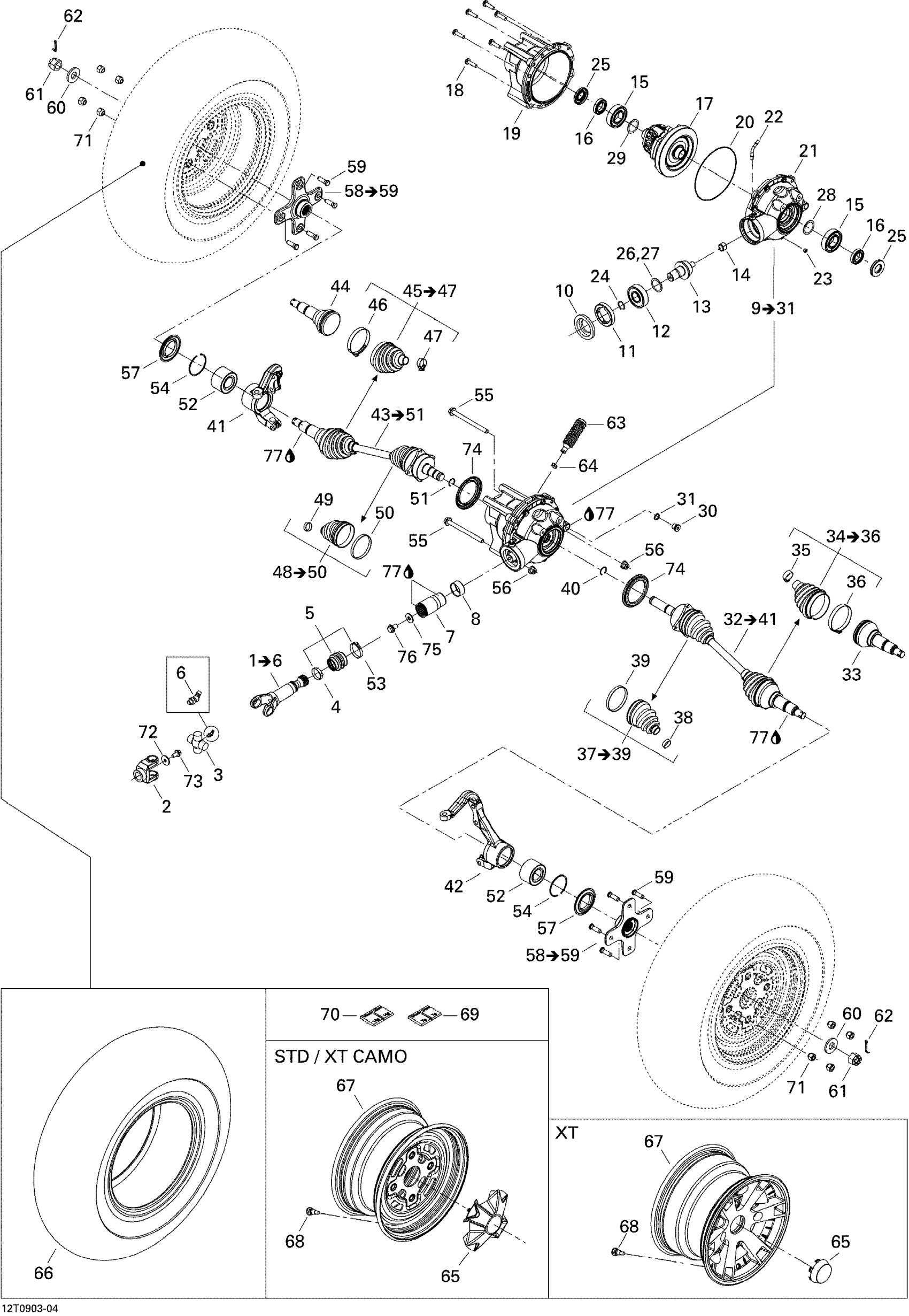

Can-Am Outlander 500 EFI XT, 2009 Drive System, Front XT Diagram

#

Description
Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$251.46

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$65.64

4

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Front Bushing Shaft Kit | 4X4

703500678

$101.46

8

Wear Ring | 4X4

705400036

$24.60

9

Front Differential | Includes 8 to 31

703500907

$1,410.42

10

Oil Seal | 4X4

705401481

$17.88

11

Nut | 4X4

705401603

$33.55

12

Ball Bearing | 4X4

705500260

$29.82

13

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

14

Needle Bearing | 4X4

705500261

Unavailable

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

293350044

$29.82

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

18

Screw | 4X4

705401601

$8.67

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$15.64

21

Front Cover

705400646

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$10.24

24

O-Ring | 4X4

705500267

$6.06

25

Gasket | 4X4

705401618

$17.13

26

Pinion Gear Shim 1.67 mm

705502061

$15.64

27

Pinion Gear Shim .022"

705500075

Unavailable

28

Shim | 4X4

705401604

$51.46

29

Shim | 4X4

705401604

$51.46

30

Fill Level Plug | 4X4

705500504

$8.73

31

Copper Washer | 4X4

705500506

$0.42

32

RH Half Shaft | Includes 34 to 39

705401579

$226.84

33

CV Joint

705500560

Unavailable

34

Wheel Boot Kit

705400511

$39.52

35

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

36

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

37

Differential Boot Kit

705400512

$39.52

38

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

39

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH Knuckle

705400816

$191.76

42

RH Knuckle

705400818

$191.76

43

LH Half Shaft | Includes 42 to 47

705401578

$226.84

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$39.52

46

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

Unavailable

47

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

48

Differential Boot Kit

705400512

$39.52

49

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

50

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

51

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

52

Ball Bearing

293350150

$50.34

53

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

54

Circlip

293370019

$4.68

55

Hex. Flange Screw M10 X 125

230602546

$6.99

56

Hex. Flange Elastic Nut M10

233201436

$2.00

57

Wear Sleeve | 4X4

705501121

$6.73

58

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

59

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

60

Conical Spring Washer M18

250200171

$6.06

61

Hex. Flange Castellated Nut M18

232291413

$3.24

61

Hex. Flange Castellated Nut M18

232291413

$3.24

62

Cotter Pin

250400036

$2.00

63

Rubber Bellow | 4X4

705400552

$5.84

64

Oetiker Clamp

293650042

$2.82

65

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

65

Wheel Cap | STD

705400563

$15.64

66

Front Tire | XT

705400326

$120.12

66

Front Tire | XT

705400606

$120.12

67

Front Rim | XT

705400667

Unavailable

67

RIM_12 INCH X 6 - Call your local BRP dealership | XT Camo

705400708

Unavailable

68

Rim Valve With Cap

705400193

$6.49

69

Self Adhesive Weight, 5G 20mm

705502106

$4.22

70

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

Unavailable

71

Steel Wheel Nut

250100042

$3.07

71

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.15

72

Washer

211200041

$3.01

73

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

74

Wear Sleeve

705400780

$6.73

75

Flat Washer M12

250200102

$2.00

76

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

77

Synthetic Grease, 400 G

293550010

Unavailable
