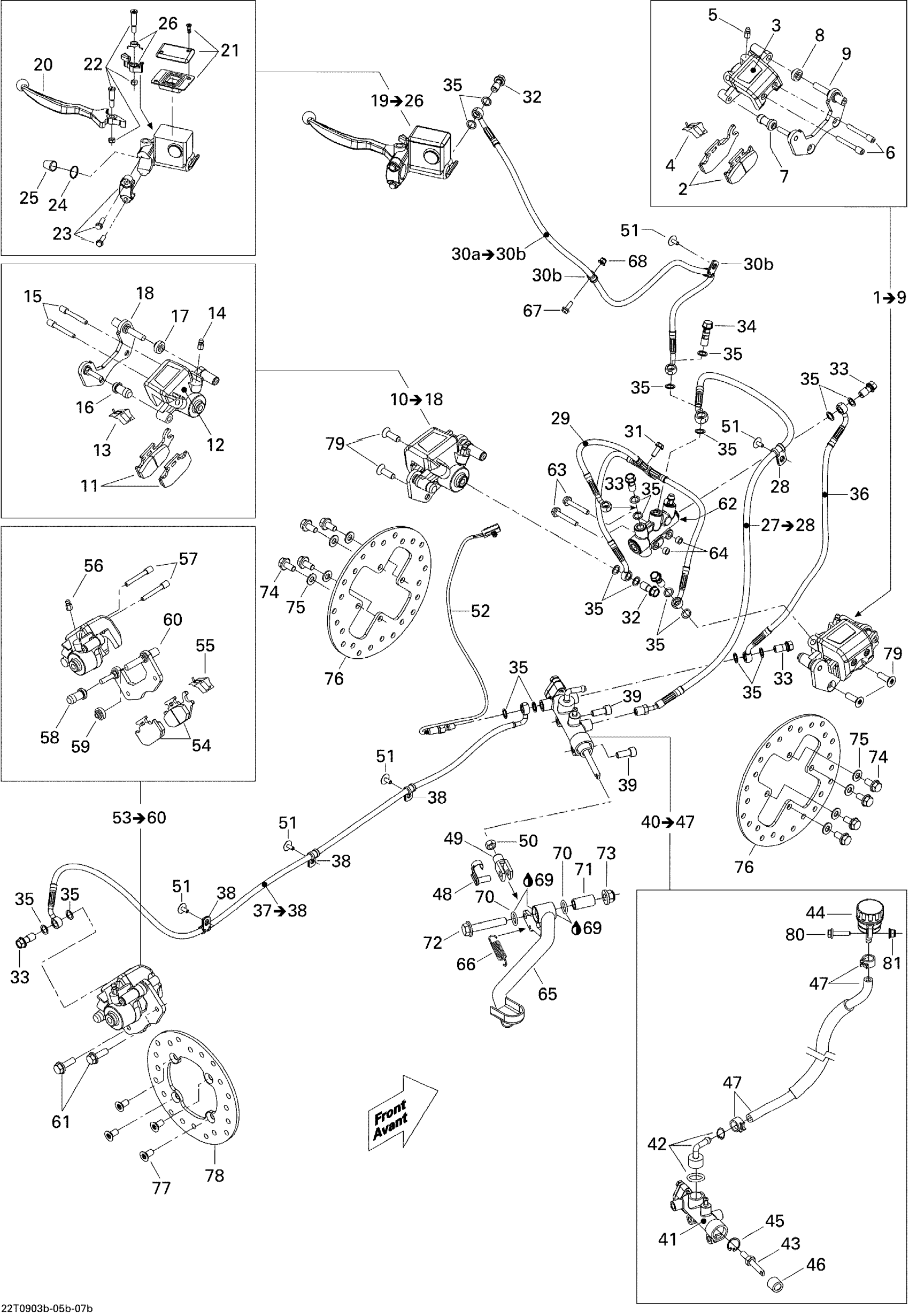

Can-Am Outlander 500 EFI XT, 2009 Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600728

Unavailable

2

Brake Pad Kit

705600004

$48.48

3

Piston Set

705600078

$35.79

4

Spring

705600079

$13.51

5

Bleeding Screw

705600080

$14.49

6

Pin Set (2)

705600081

$18.63

7

Compression Boot

705600082

$9.30

8

Compression Boot

705600083

$9.30

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600729

Unavailable

11

Brake Pad Kit

705600014

$48.48

12

Piston Set

705600078

$35.79

13

Spring

705600079

$13.51

14

Bleeding Screw

705600080

$14.49

15

Pin Set (2)

705600081

$18.63

16

Compression Boot

705600082

$9.30

17

Compression Boot

705600083

$9.30

18

LH Caliper Support

705600297

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$202.96

20

Lever Arm

705600243

$49.22

21

Cap Set

705600084

$23.10

22

Brake Lever Bolt Kit

705600246

$13.51

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

27

Brake Hose | Includes 27 to 28

705600691

Unavailable

28

Clamp

293650256

$5.00

29

BRAKE HOSE - Call your local BRP dealership

705600690

Unavailable

30a

BRAKE HOSE - Call your local BRP dealership | Includes 30a to 30b

705600697

Unavailable

30b

Clamp

293650256

$5.00

31

Hexagonal Head Screw

210262050

$2.00

32

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

33

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

34

Banjo Bolt

705600958

$6.73

35

Copper Washer

705601628

$4.21

36

LINE BRAKE - Call your local BRP dealership

705600759

Unavailable

37

Rear Hose | Includes 34 to 35

705600929

$84.30

38

Clamp

293650256

$5.00

39

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.51

40

MASTER CYLINDER - Call your local BRP dealership | Includes 40 to 47

705600715

Unavailable

41

Piston Set

705600255

Unavailable

42

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Oil Tank, Brake Fluid Reservoir

705600182

$35.04

45

Circlip

705600068

Unavailable

46

Compression Boot

705600090

Unavailable

47

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

48

Pin Kit

219702305

$30.57

49

Yoke

705600100

Unavailable

50

Hex. Nut M8

232081414

$0.69

51

Pop Rivet 3/16"

390406500

$0.81

52

Switch

710003837

$39.52

53

Rear Caliper | Includes 48 to 56

705600577

$204.45

54

LH Brake Pad Kit

705600398

$48.48

55

Spring

705600079

$13.51

56

Bleeding Screw

705600080

$14.49

57

Pin Set (2)

705600081

$18.63

58

Compression Boot

705600082

$9.30

59

Compression Boot

705600083

$9.30

60

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

61

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

62

SPLITTER - Call your local BRP dealership

705600617

Unavailable

63

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

64

Bushing | DS 650 X

293900104

$5.10

65

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

66

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

67

Hex. Flange Screw M6 X 16

207661644

$0.70

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

69

Synthetic Grease, 400 G

293550010

Unavailable

70

O-RING - Call your local BRP dealership

293300053

Unavailable

71

SPACER - Call your local BRP dealership

705600283

Unavailable

72

Hex. Flange Screw M10 X 55

207605544

$3.19

73

Hex. Flange Elastic Nut M10

233201414

$1.45

74

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

75

Conical Spring Washer M8

234281474

$1.43

76

Disk Brake

705600603

$55.19

77

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

78

Disk Brake

705600604

$55.19

79

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

80

Hex. Flange Screw M6 X 25

207662544

$0.61

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
