- Outlander 500 EFI, 2015
11- T3 Parts _99T1505

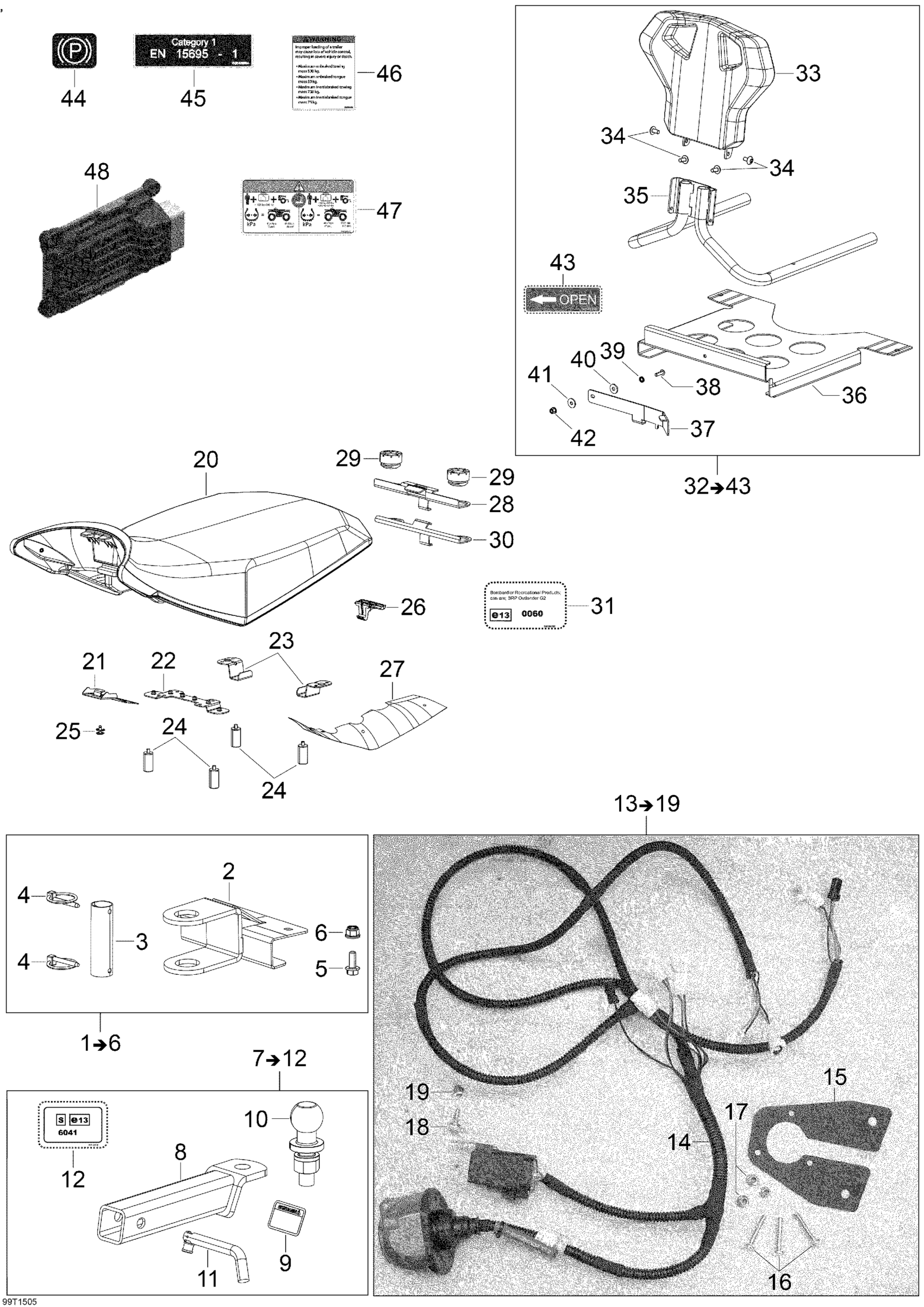

Can-Am Outlander 500 EFI, 2015 11- T3 Parts _99T1505 Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Front Coupling Device
705204452
Unavailable
3
Pin
605456511
Unavailable
4
Pin
605456518
Unavailable
5
Carriage Bolt, M8 X 20
207782044
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Coupling Ball Ass'y | Includes 7 To 12
605256548
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Hitch Pin
705204490
Unavailable
12
Hitch Decal
605456545
Unavailable
13
Trailer Plug Ass'y | Includes 13 To 19
860200927
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Plug Support Plate
605356523
Unavailable
16
Socket Head Screw M5 X 35
205053588
Unavailable
17
Hex. Flange Elastic Nut M5
233251414
Unavailable
18
Hex. Flange Screw M6 X 16
207661644
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Seat Ass'y | Model-T3
708002208
Unavailable
21
Front Bottom Support | Model-T3
605456520
Unavailable
22
Support Central Cushion
510005986
Unavailable
23
Support Rear Cushion
510005988
Unavailable
24
RUBBER DAMPER - Call your local BRP dealership | Model-T3
605456546
Unavailable
25
Rivet | Model-T3
293150067
Unavailable
26
Latch
708000909
Unavailable
27
HEAT SHIELD - Call your local BRP dealership
705005761
Unavailable
28
Support Rear Seat
705204621
Unavailable
29
Bumper Rubber
708000760
Unavailable
30
Seat Rear Raiser
705204655
Unavailable
31
Decal
605456593
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Backrest | Model-T3
708001794
Unavailable
34
Torx Truss Screw M6 x 12 | Model-T3
250000675
Unavailable
35
Backrest Weld
708001811
Unavailable
36
Backrest Runners
708001815
Unavailable
37
Lock
708001820
Unavailable
38
Socket Screw M5 X .80 X 16
250000652
Unavailable
39
Serrated Lock Washer
20018
Unavailable
40
Rubber Washer 5 mm
250200024
Unavailable
41
Washer M5
250200025
Unavailable
42
Elastic Flange Nut M5
233251494
Unavailable
43
Decal
605456560
Unavailable
44
P-Decal, T3 | Package-XTT3
605356244
Unavailable
45
Cabin Decal, T3 | Package-XTT3
605456594
Unavailable
46
Warning Decal
605356505
Unavailable
47
LABEL-WARNING TIRE PRESSURE - Call your local BRP dealership
704905689
Unavailable
48
ECU Module
420266868
Unavailable
