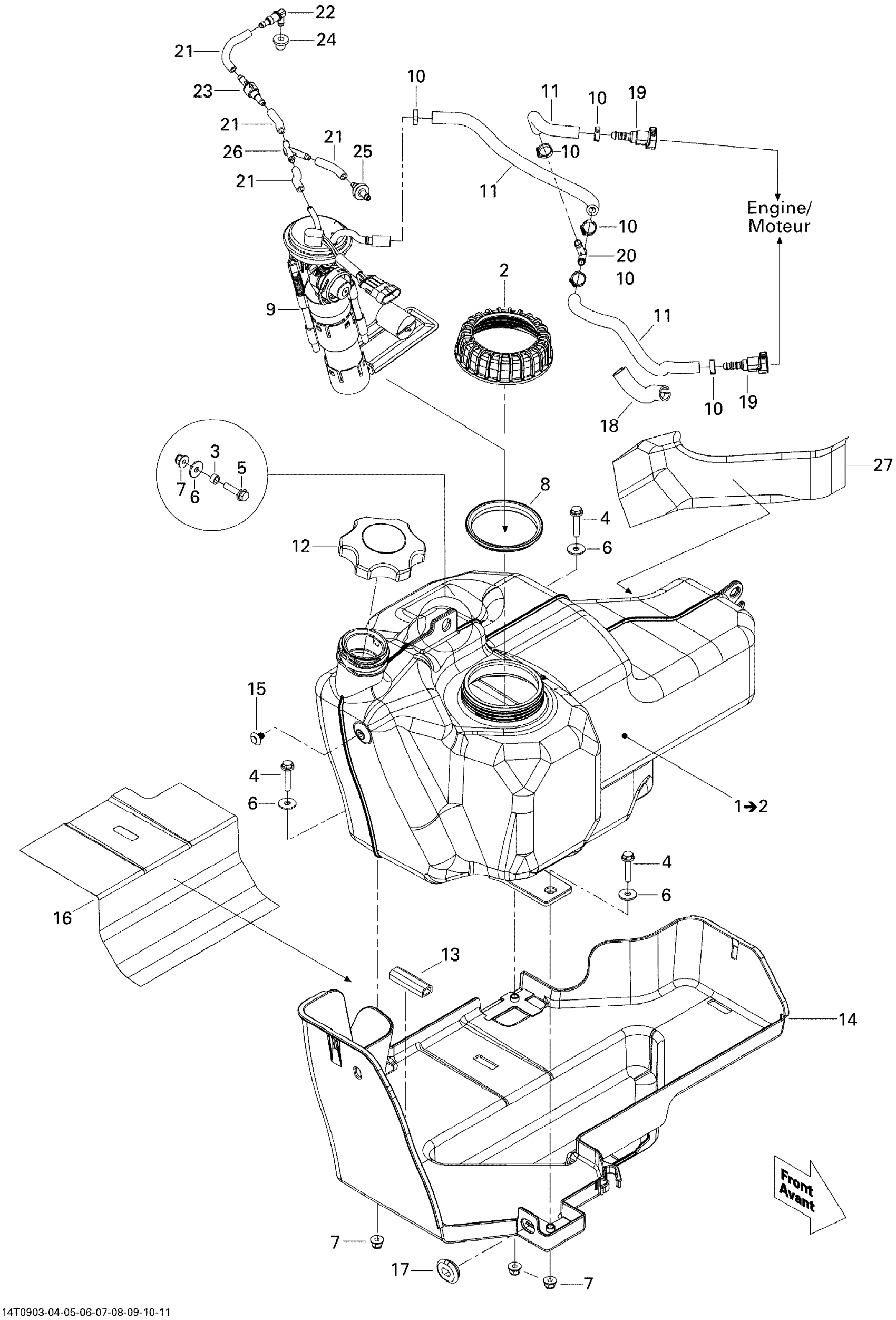

Can-Am Outlander 500 EFI, 2009 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

$249.99

2

Nut, Fuel Pump Module

513033040

$29.99

3

Bushing | DS 650 X

293900104

$5.50

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.19

5

Hex. Flange Screw M6 X 25

207662544

$1.49

6

Flat Washer

250200082

$1.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

8

Seal

709000208

$14.99

9

Fuel Pump Kit Ass'y

703500766

$372.49

10

Oetiker Clamp

293650046

$2.99

11

Was 709000163 Fuel Line

219704440

$28.99

12

Fuel Tank Cap

513033025

$25.99

13

Was 293200017 Neoprene Seal

219704365

$154.99

14

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

15

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

16

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

17

Oval Washer

705005156

$5.09

18

Was 409901800 Tubing (13 mm)

219704400

$14.99

19

Female Quick Fitting Ass'y

709000125

$15.99

20

Y-Fitting, 5/16''

293710136

$6.49

21

Polyurethane Hose 10000Mm Long

219704410

$57.99

22

Elbow Male Connector

414580600

$4.29

23

Check Valve

513033469

$32.99

24

Grommet

293720029

$1.69

25

Check Valve

275500398

$11.49

26

Y-Fitting

293710059

$9.89

27

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable
