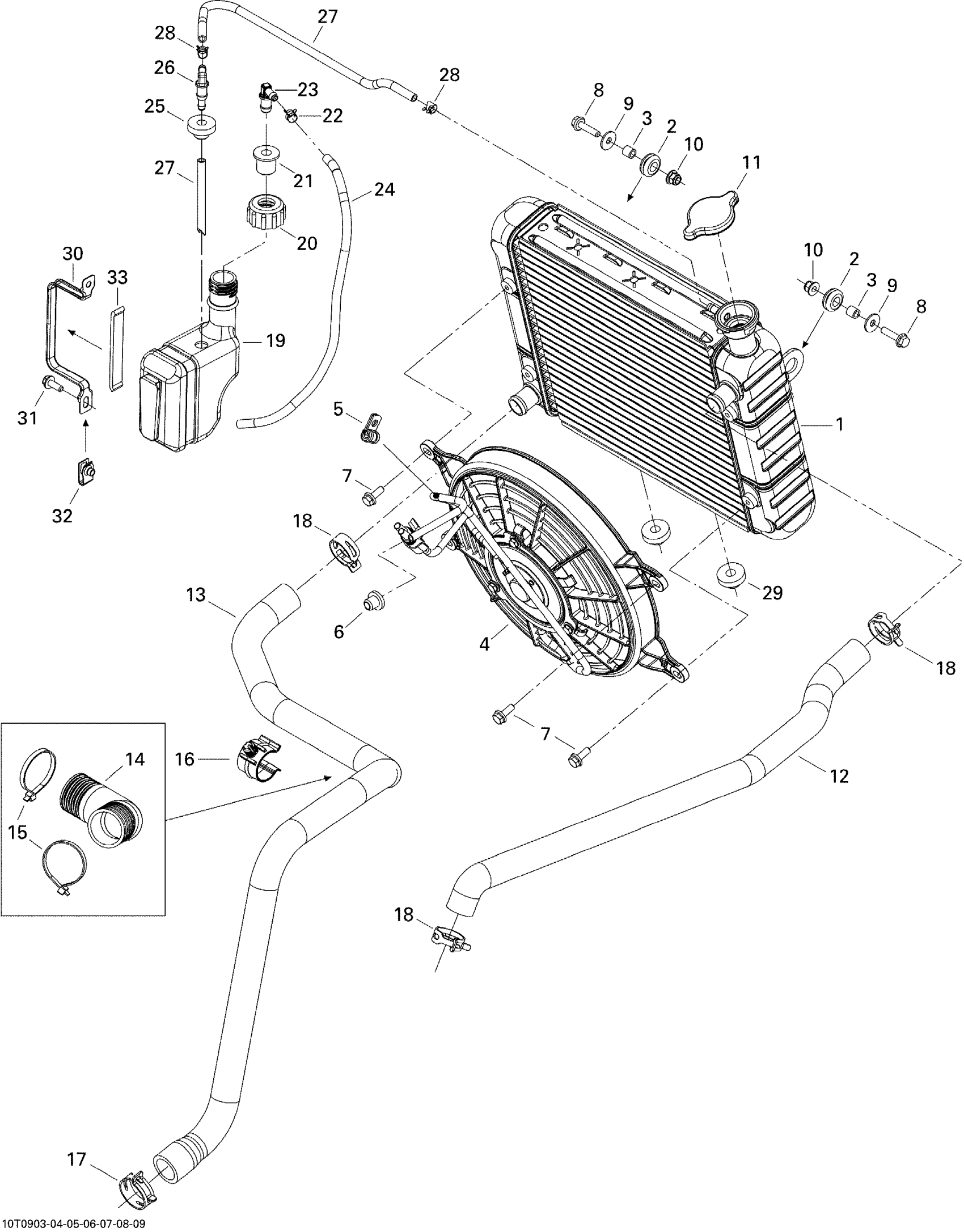

Can-Am Outlander 500 EFI, 2009 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200120

Unavailable

2

Grommet

709000582

$4.79

3

Bushing

293900105

$7.79

4

Fan Ass'y

709200371

$224.99

5

Clamp

293650256

$5.59

6

Grommet

293720029

$1.69

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

8

Hex. Flange Screw M6 X 25

207662544

$1.49

9

Flat Washer

250200082

$1.49

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

11

Radiator Pressure Cap

709200207

$21.61

12

RADIATOR INLET HOSE - Call your local BRP dealership

709200130

Unavailable

13

HOSE OUTLET - Call your local BRP dealership

709200246

Unavailable

14

Tubing 35 MM 1000MM Long

219704428

$11.49

15

Tie-Rap 180 mm

414115200

$1.49

16

Retainer

275500590

$8.24

17

Norma Spring Clamp

293650108

$4.19

18

Norma Spring Clamp

293650109

$4.19

19

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

20

Cap

709200586

$11.11

21

Grommet

293830136

$10.99

22

Spring Clamp

414554800

$1.49

23

Male Connector

414580700

$4.19

24

Polyurethane Hose 10000Mm Long

219704410

$57.99

25

Grommet

709200285

$9.89

26

Elbow Male Connector

414580600

$4.29

27

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

28

Spring Clamp

414554800

$1.49

29

Grommet

709200285

$9.89

30

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

31

Hex. Flange Screw M6 X 16

210261650

$1.69

32

Panel Nut M6 X 1.0

250100198

$2.19

33

Gasket, Neoprene 2000Mm Long

219704476

$15.99
