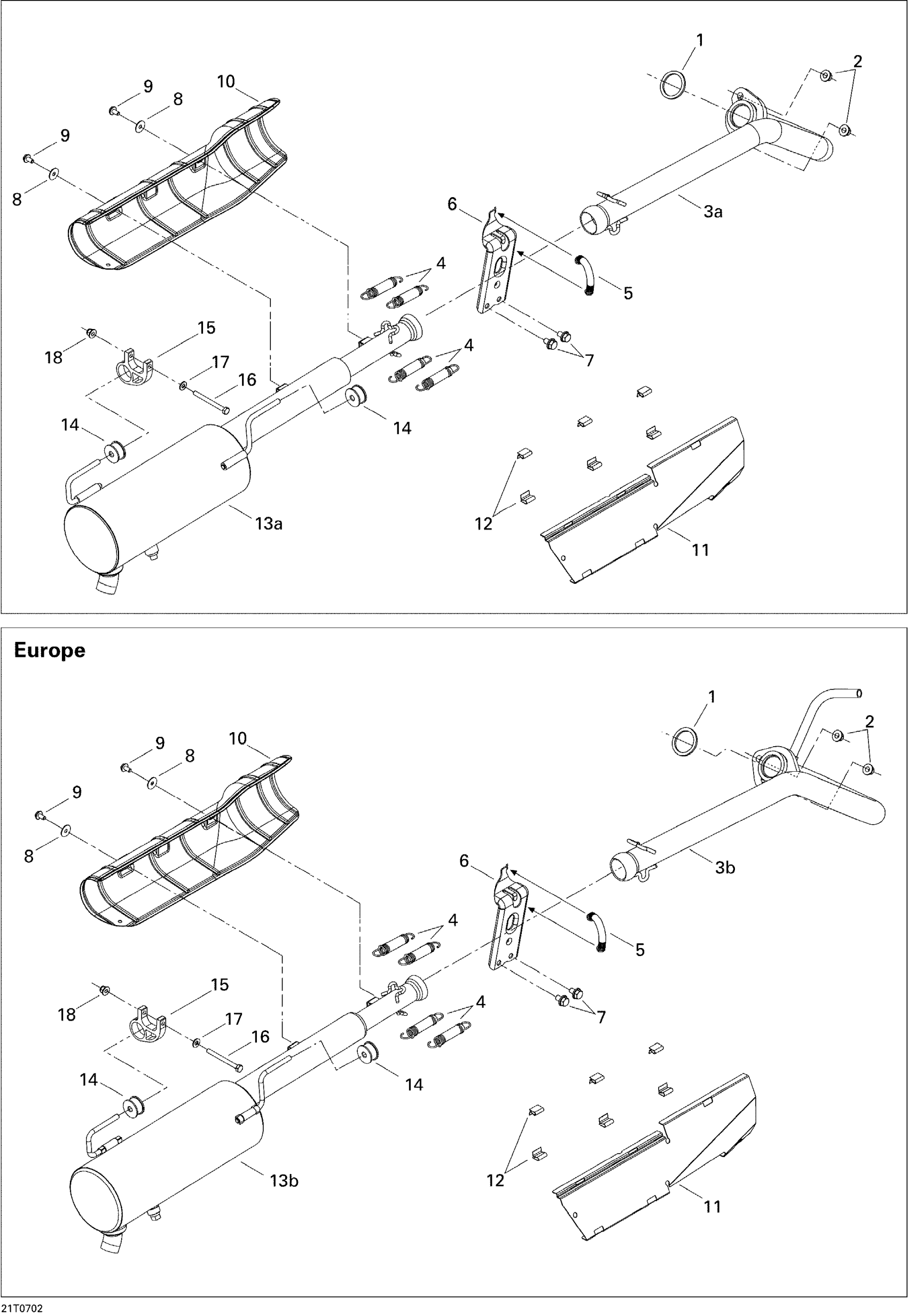

Can-Am Outlander 400 XT 4 X 4, 2007 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3a

HEAD PIPE - Call your local BRP dealership

707600376

Unavailable

3b

Head Pipe | Europe

707600405

Unavailable

4

Spring

415107100

$6.35

5

SPRING - Call your local BRP dealership

707600207

Unavailable

6

Muffler Support

707600194

Unavailable

7

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

8

Flat Washer

250200082

$0.42

9

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

10

HEAT SHIELD - Call your local BRP dealership

707600224

Unavailable

11

HEAT DEFLECTOR - Call your local BRP dealership | Europe Models

707600313

Unavailable

12

Clip | Europe Models

517306751

$2.09

13a

MUFFLER - Call your local BRP dealership

707600395

Unavailable

13b

Muffler | Europe

707600439

Unavailable

14

Anti-Vibration Rubber

707600702

$8.57

15

MUFFLER BRAKET - Call your local BRP dealership

707600411

Unavailable

16

Hex. Screw M6 X 65

207066544

$0.46

17

Flat Washer

224061121

$0.53

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
