01- Crankcase

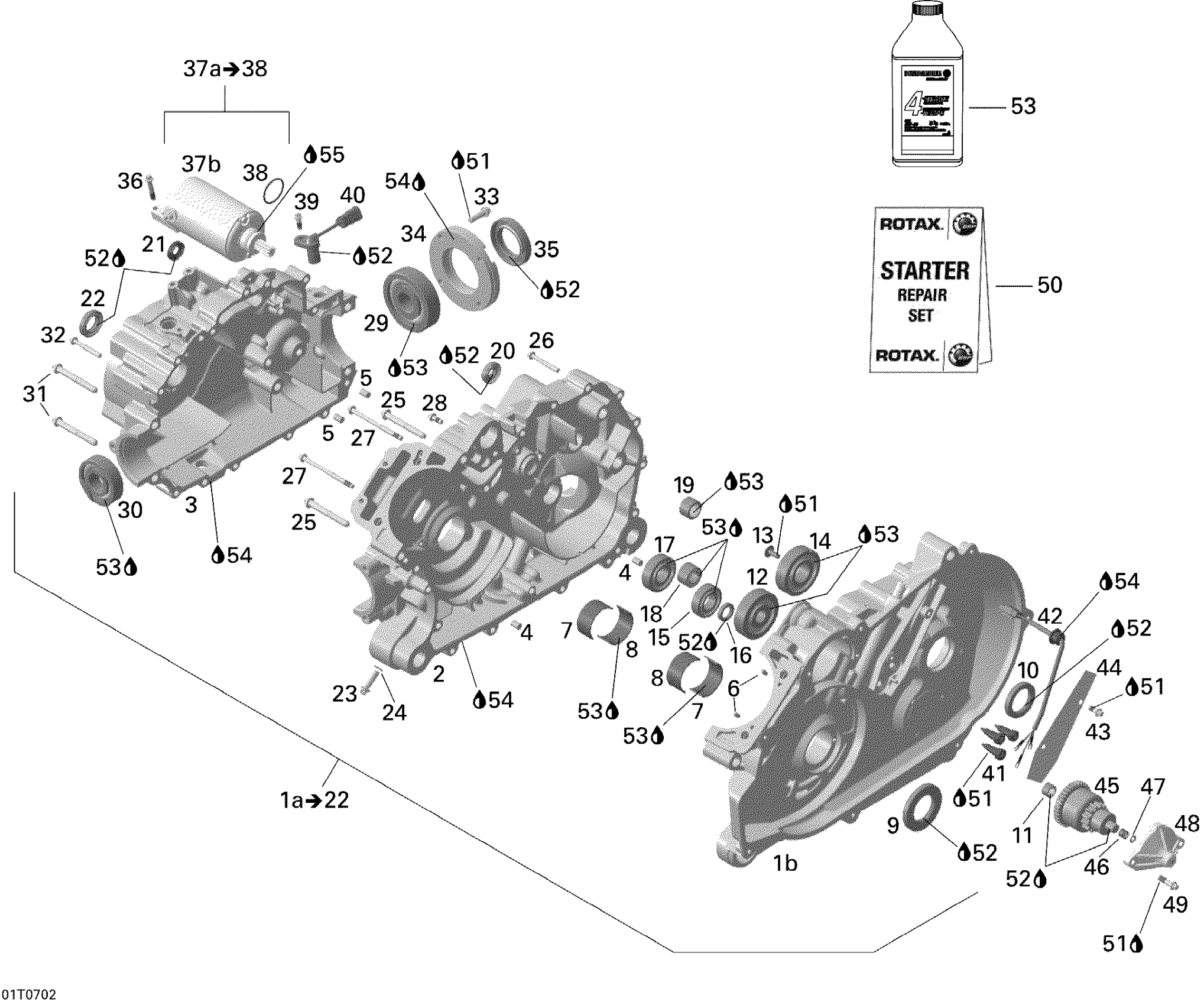

Can-Am Outlander 400 XT 4 X 4, 2007 01- Crankcase Diagram
#
1a
CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22
420296761
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Center Pin 8 X 12
420632010
Unavailable
5
Center Pin 8 X 12
420632010
Unavailable
6
Drive Pin 5 X 10
420929650
Unavailable
7
Plain Bearing
420233960
Unavailable
8
Plain Bearing
420233965
Unavailable
9
Oil Seal
420630152
Unavailable
10
Oil Seal
420950089
Unavailable
11
Needle Bushing
420232482
Unavailable
12
Ball Bearing
420632295
Unavailable
13
Torx Screw M6 X 16
420241529
Unavailable
14
Ball Bearing
420932822
Unavailable
15
Ball Bearing 6302
420232291
Unavailable
16
Oil Seal
420250130
Unavailable
17
Ball Bearing 6204
420932433
Unavailable
18
Needle Bushing
420232085
Unavailable
19
Needle Bushing
420832240
Unavailable
20
Oil Seal
420250450
Unavailable
21
Oil Seal
420650315
Unavailable
22
Oil Seal
420930392
Unavailable
23
Torx Flange Screw M8 X 25
420440372
Unavailable
24
Sealing Ring
420950141
Unavailable
25
Torx Flange Screw M8 X 65
420440402
Unavailable
26
Torx Flange Screw M6 X 45
420440324
Unavailable
27
Torx Flange Screw M6 X 85
420641228
Unavailable
28
Torx Flange Screw M6 X 16
420440162
Unavailable
29
Ball Bearing 6405
420632280
Unavailable
30
Ball Bearing
420932822
Unavailable
31
Torx Flange Screw M6 X 85
420641228
Unavailable
32
Torx Flange Screw M6 X 45
420440324
Unavailable
33
Torx Flange Screw M8 X 25
420440372
Unavailable
34
Bearing Cover
420610243
Unavailable
35
Oil Seal
420650682
Unavailable
36
Torx Flange Screw M6 X 35
420440274
Unavailable
37a
Electric Starter | Includes 37 to 38
420684283
Unavailable
37b
Not Available As Spare Part - Friction Washer
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Torx Flange Screw M6 X 16
420440162
Unavailable
40
Speed Sensor
420265723
Unavailable
41
Position Switch
420241856
Unavailable
42
Wiring Harness
420265831
Unavailable
43
Torx Flange Screw M6 X 16
420440162
Unavailable
44
Cover Sheet
420251290
Unavailable
45
Starter Drive Assembly
420684052
Unavailable
46
Spring
420938204
Unavailable
47
Washer 5.3
420927574
Unavailable
48
Reduction Cover Gear
420610891
Unavailable
49
Hex. Screw M6 X 25
420240034
Unavailable
50
BRUSH KIT - Call your local BRP dealership
420266305
Unavailable
51
Loctite 243, 10 ml
293800060
Unavailable
52
Grease, Super Lube
293550030
Unavailable
53
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
54
Loctite 5910, 300 ml
293800081
Unavailable
55
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
