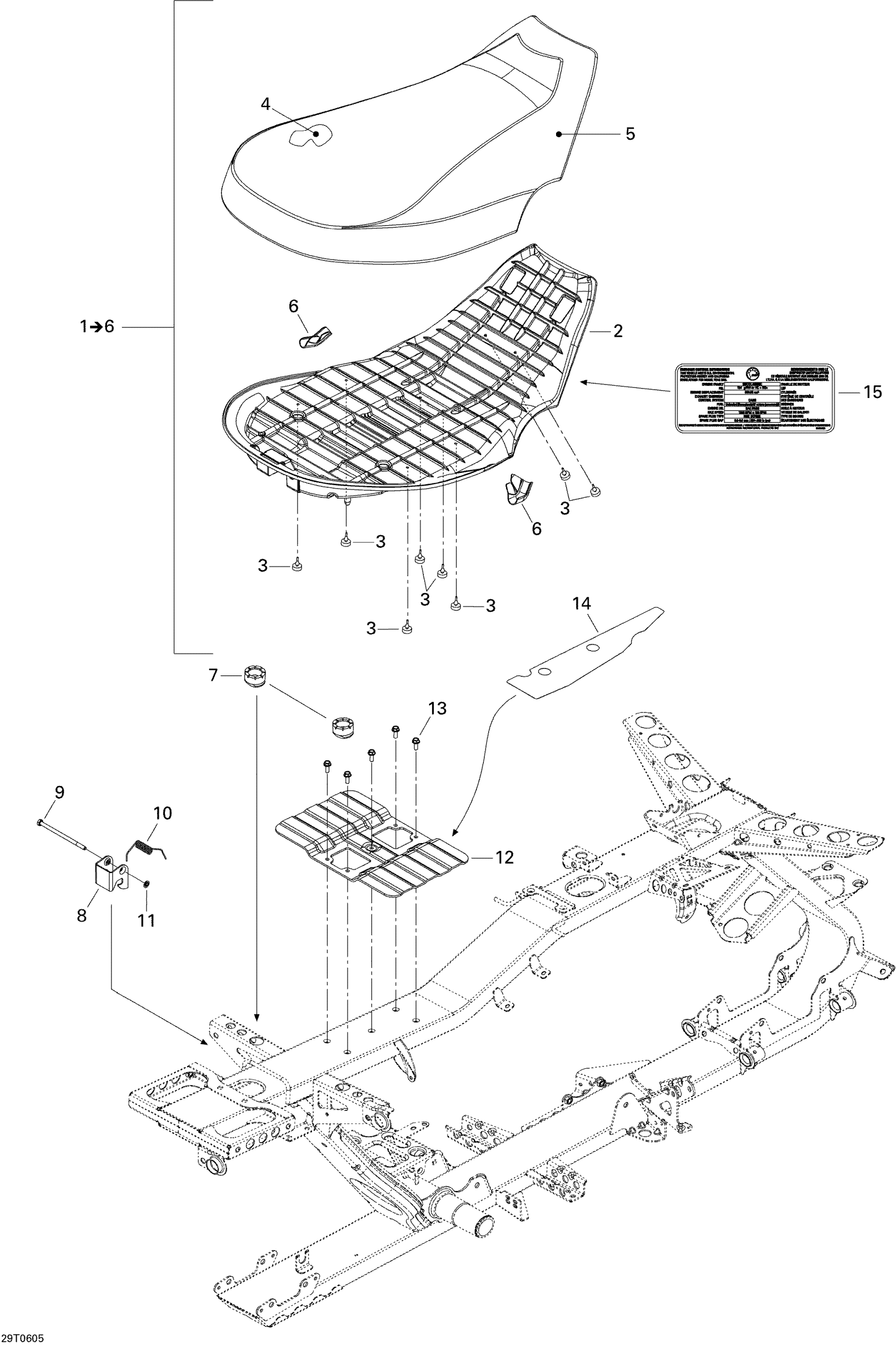

Can-Am Outlander 400 XT 4 X 4, 2006 09- Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

7

Bumper Rubber

708000760

Unavailable

8

Latch, Black

708000144

Unavailable

9

Hex. Screw M6 X 110

230061044

Unavailable

10

Spring

708000369

Unavailable

11

Push Nut

732610072

Unavailable

12

Seat Reinforcement

708000629

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

Unavailable

14

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

15

Emission Label

704901033

Unavailable
