Description

Price

1

Cylinder Head Gasket | 400HO

420630195

$81.99

2

Cylinder Head | Includes 2 to 3

420413397

$679.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$14.49

4

Intake Valve 31MM

420254359

$36.99

5

Exhaust Valve 27MM

420254368

$71.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.49

8

Valve Spring

420239295

$14.49

9

Valve Spring Retainer

420254132

$14.49

10

Cotter Valve

420254120

$4.19

11

Torx Screw M10X140

420641551

$14.49

12

Torx Flange Screw M6 X 85

420641228

$7.59

13

Camshaft

420620011

$418.99

14

Torx Flange Screw M6 X 16

420440162

$3.29

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.39

17

Chain Tension Guide

420436015

$31.99

18

Chain Guide

420236584

$7.69

19

Silent Chain

420297063

$66.99

20

Camshaft Sprocket

420254434

$37.99

21

Deko Shaft | 400HO

420620120

$20.49

22

Spacer | 400HO

420231080

$20.49

23

Deko Torsion Spring | 400HO

420238270

$4.97

24

Centrifugal Weight | 400HO

420231070

$18.49

25

Deko Washer | 400HO

420231090

$12.18

26

Hex. Collar Screw M8 X 32 | 400HO

420641820

$17.04

27

Hex. Screw M6 X 25

420240034

$1.99

28

O-Ring

420430373

$3.29

29

Chain Tensioner Housing

420236510

$11.99

30

Chain Tensioner Plunger

420236521

$15.49

31

Spring

420238120

$7.59

32

O-Ring

420250890

$3.19

33

Plug Screw

420641150

$7.59

34

Pin #12, Small, M6 X 90

420229712

$15.99

35

Shim

420944382

$4.19

36

Inlet Rocker Arm

420254907

$144.99

37

Exhaust Rocker Arm

420254911

$154.99

38

Adjustment Screw M6 X 0.75

420241337

$5.19

39

Hex Nut M6

420242913

$0.51

40

Copper Washer

420250640

$1.49

41

Temperature Switch

420897938

$78.49

42

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Thermostat Gasket

420650300

$8.79

44

Torx Flange Screw M6 X 25

420440234

$3.09

45

Thermostat Cover

420222696

$3.29

46

Gasket Ring

420650255

$4.19

47

Screw M5 X 16

420441621

$3.29

48

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

49

Gasket

420630640

$4.29

50

Intake Flange Ass'y

420267386

$36.99

51

Intake Neck

420267340

$17.05

52

Clamp

420251480

$14.49

53

Hex Screw M6 X 30

420440568

$8.79

54

Gasket

420630260

$9.09

55

Valve Cover

420610393

$27.99

56

Spark Plug, NGK DCP-R8E

715900637

$6.99

57

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

57

Spark Plug Connector

420265248

$32.99

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Valve Guide

420254374

$28.99

61

Loctite 243, 10 ml

293800060

$21.49

62

Grease, Super Lube

293550030

$28.99

63

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

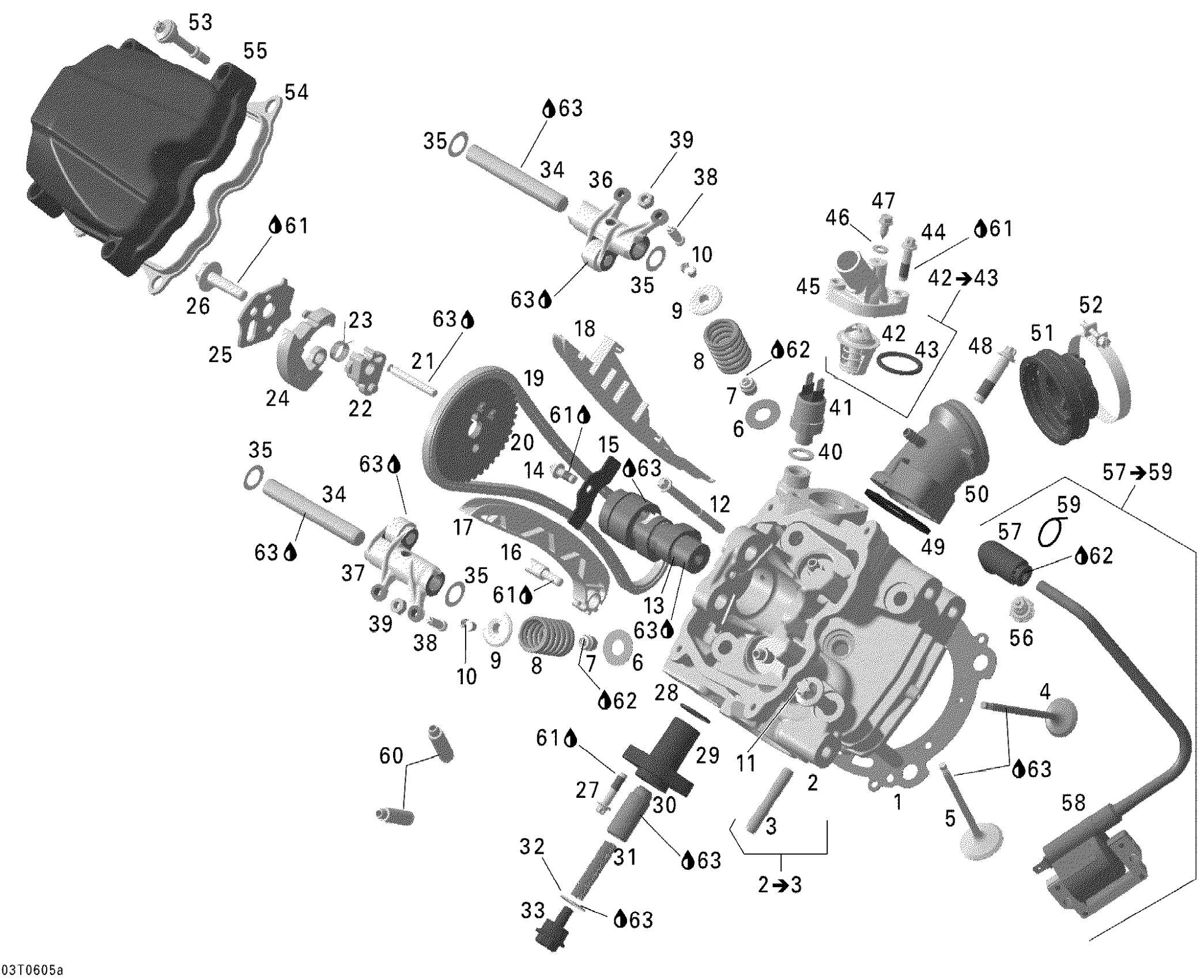

Can-Am Outlander 400 XT 4 X 4, 2006 Cylinder Head Diagram

Cylinder Head Gasket | 400HO

Cylinder Head | Includes 2 to 3

Not Available As Spare Part - Friction Washer

Stud M8 x 26

Intake Valve 31MM

Exhaust Valve 27MM

Thrust Washer

Valve Stem Seal

Valve Spring

Valve Spring Retainer

Cotter Valve

Torx Screw M10X140

Torx Flange Screw M6 X 85

Camshaft

Torx Flange Screw M6 X 16

Holding Strip

Bearing Screw M6

Chain Tension Guide

Chain Guide

Silent Chain

Camshaft Sprocket

Deko Shaft | 400HO

Spacer | 400HO

Deko Torsion Spring | 400HO

Centrifugal Weight | 400HO

Deko Washer | 400HO

Hex. Collar Screw M8 X 32 | 400HO

Hex. Screw M6 X 25

O-Ring

Chain Tensioner Housing

Chain Tensioner Plunger

Spring

O-Ring

Plug Screw

Pin #12, Small, M6 X 90

Shim

Inlet Rocker Arm

Exhaust Rocker Arm

Adjustment Screw M6 X 0.75

Hex Nut M6

Copper Washer

Temperature Switch

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

Not Available As Spare Part - Friction Washer

Thermostat Gasket

Torx Flange Screw M6 X 25

Thermostat Cover

Gasket Ring

Screw M5 X 16

ALLEN SCREW M8 X 40 - Call your local BRP dealership

Gasket

Intake Flange Ass'y

Intake Neck

Clamp

Hex Screw M6 X 30

Gasket

Valve Cover

Spark Plug, NGK DCP-R8E

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

Spark Plug Connector

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Valve Guide

Loctite 243, 10 ml

Grease, Super Lube

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
