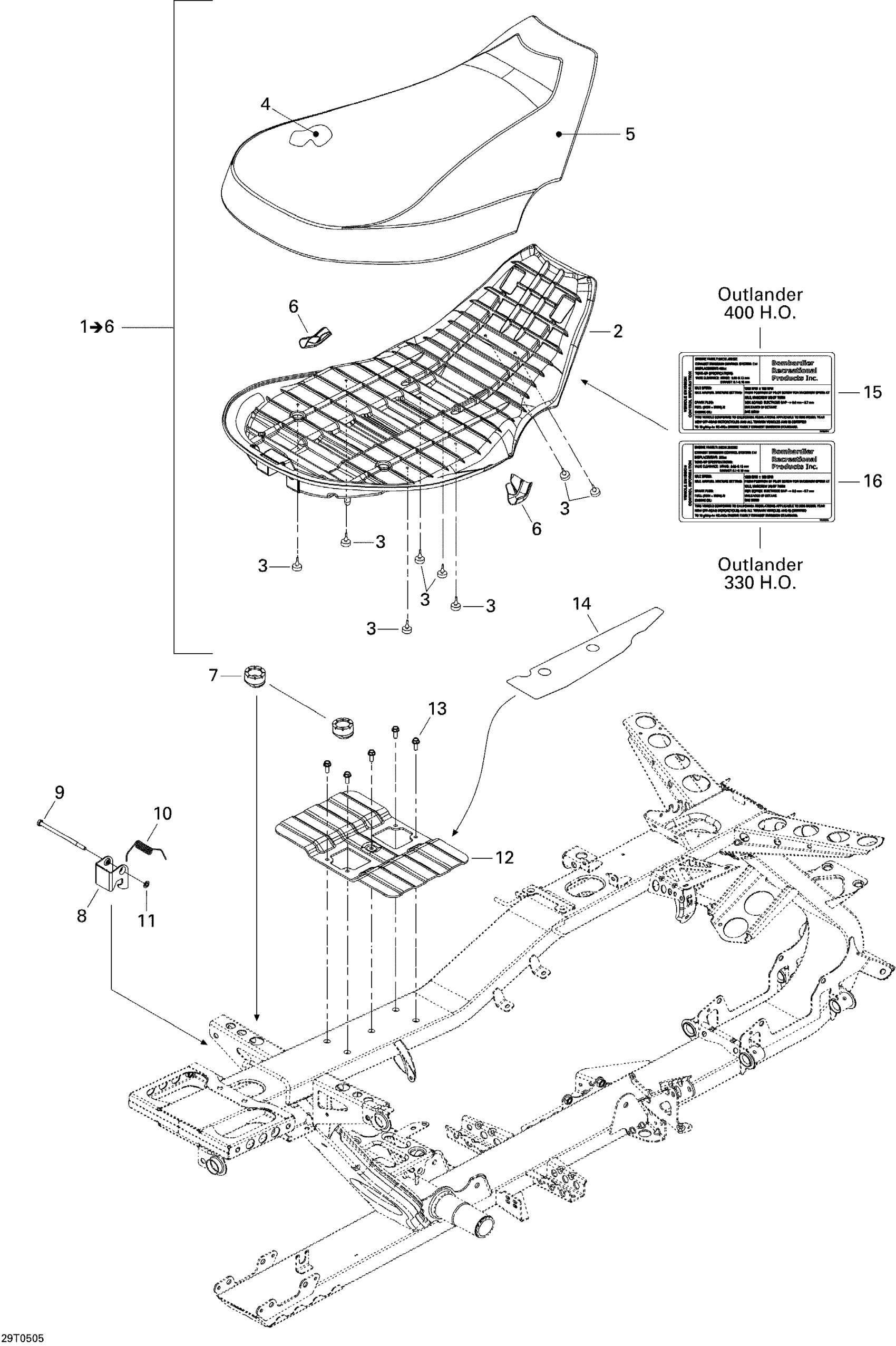

Can-Am Outlander 400 XT 4 X 4, 2005 Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$433.82

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

$3.61

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Seat Cover

708000556

$124.58

6

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

7

Bumper Rubber

708000760

$9.11

8

Latch, Black

708000144

$11.09

9

HEX. SCREW M6 X 110 - Call your local BRP dealership

230061060

Unavailable

10

Spring

708000369

$8.60

11

Push Nut

732610072

$1.72

12

Seat Reinforcement

708000629

$32.28

13

Hex. Forming Screw M6 X 10

210261050

$1.42

14

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

15

Emission Label | 400 H.O.

704900874

Unavailable

16

Emission Label | 330 H.O.

704900875

Unavailable
