- Outlander 400 XT 4 X 4, 2005
09- Body And Accessories 3

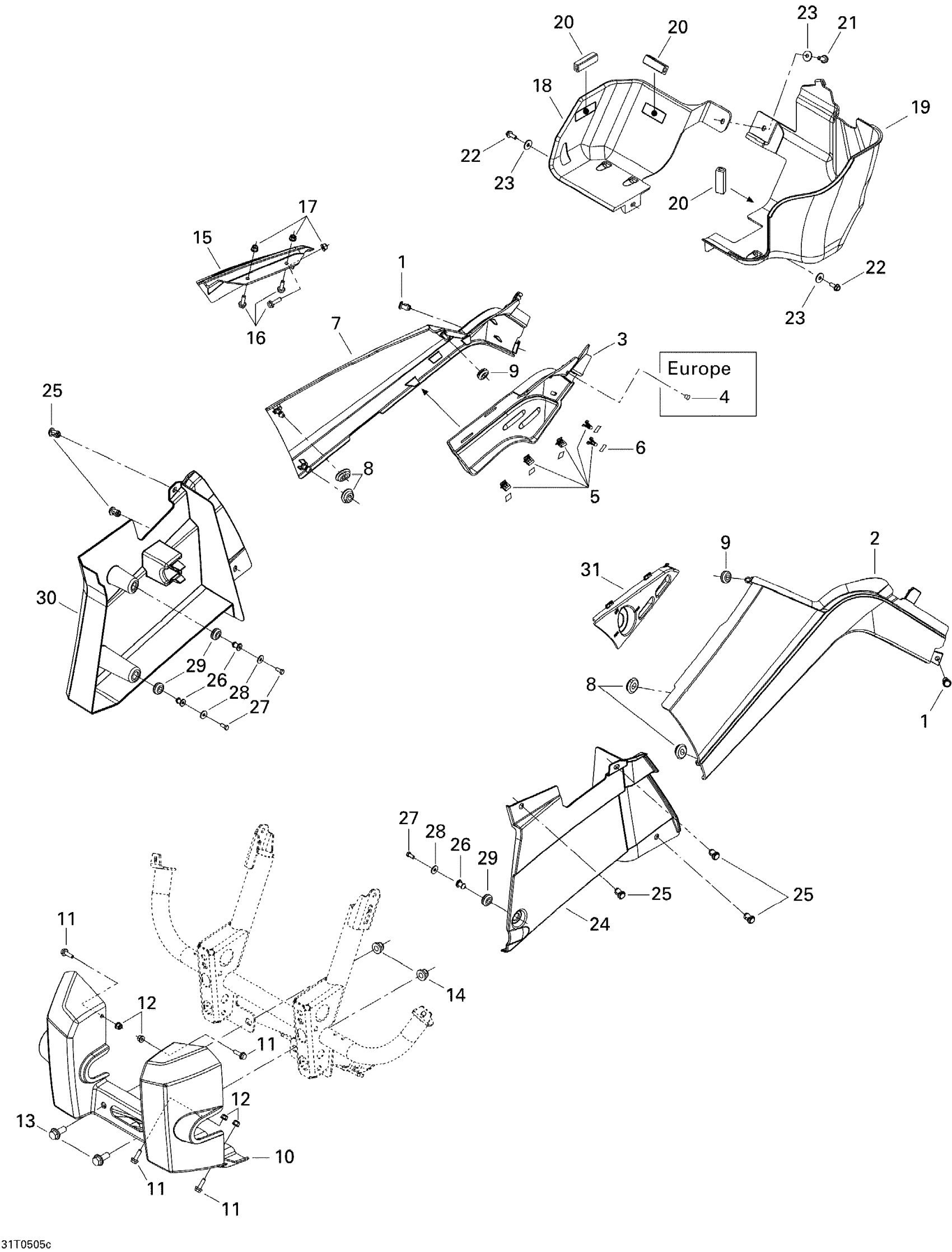

Can-Am Outlander 400 XT 4 X 4, 2005 09- Body And Accessories 3 Diagram
#
1
Tuflok Plastic Rivet
293150230
Unavailable
2
RED LH SIDE PANEL - Call your local BRP dealership | Viper Red
705003499
Unavailable
2
LH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003651
Unavailable
2
PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow
705003498
Unavailable
2
LH Side Panel | Camo
705000864
Unavailable
3
MUFFLER COVER - Call your local BRP dealership
705001685
Unavailable
4
Rubber Bumper
293830005
Unavailable
5
Edge Clip
517302785
Unavailable
6
Heat Shield | Europe
517305451
Unavailable
7
Red RH Side Panel | Viper Red
705003502
Unavailable
7
RH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003652
Unavailable
7
PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow
705003501
Unavailable
7
RH Side Panel | Camo
705000866
Unavailable
8
Oval Washer
705005156
Unavailable
9
Grommet
709000582
Unavailable
10
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
11
Hex. Flange Screw M6 X 20
207662044
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Hex. Flange Screw M10 X 25
207602544
Unavailable
14
Hex. Flange Elastic Nut M10
233201414
Unavailable
15
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
16
Hex. Flange Screw M6 X 20
207662044
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
RH TANK PROTECTOR - Call your local BRP dealership
705000554
Unavailable
19
LH Tank Protector
705000555
Unavailable
20
Was 293200017 Neoprene Seal
219704365
Unavailable
21
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
22
Hex. Flange Screw M6 X 16
210261650
Unavailable
23
Flat Washer
250200082
Unavailable
24
LH Inner Fender
705000652
Unavailable
25
Tuflok Plastic Rivet
293150230
Unavailable
26
Knob
517303439
Unavailable
27
Torx Screw K50 X 16
250000720
Unavailable
28
Washer | DS 650 X
391301600
Unavailable
29
Grommet
709000582
Unavailable
30
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
31
VALVE SUPPORT - Call your local BRP dealership
705001691
Unavailable
