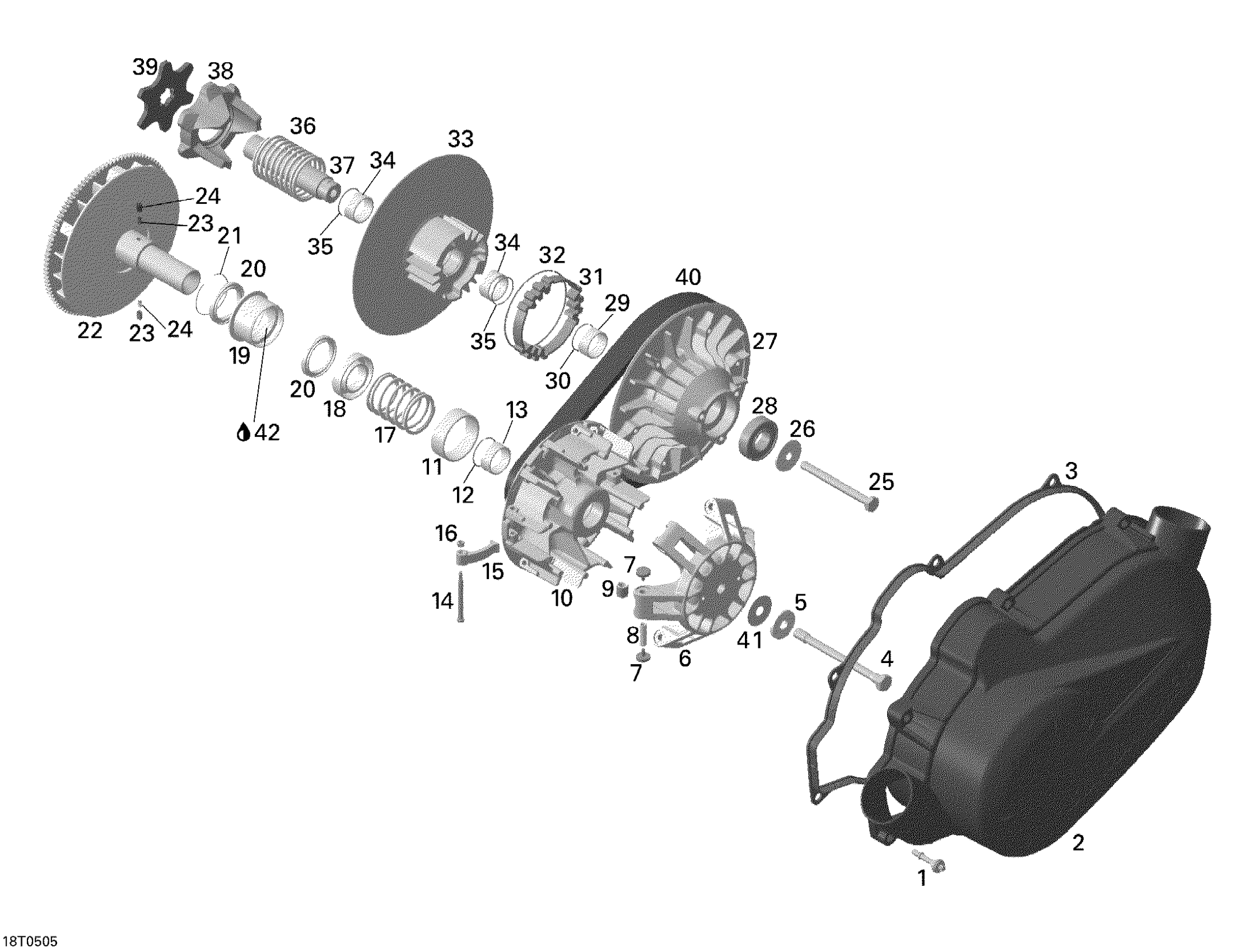

Can-Am Outlander 400 XT 4 X 4, 2005 Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$8.15

2

CVT COVER - Call your local BRP dealership

420610421

Unavailable

3

CVT Cover Gasket

420630290

$29.82

4

Hex. Screw M12 X 140

420641812

$26.84

5

Spring Washer

420627760

$10.90

6

CVT Drive Ass'y | 400HO / Includes 6 to 24

420684400

Unavailable

6

CVT DRIVE ASS'Y - Call your local BRP dealership | 330HO / Includes 6 to 24

420684405

Unavailable

6

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$41.01

8

Roller Axle

417223257

$6.37

9

Roller

417223767

$7.15

10

Outer Half Ass'y | 400HO / Includes 10 to 16

420280310

Unavailable

10

Outer Half Ass'y | 330HO / Includes 10 to 16

420280315

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$71.72

14

CENTRIFUGAL LEVER SET - Call your local BRP dealership | 330HO / Includes 14 to 16

420248475

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring

420238166

$32.06

18

Seat Spring

420627578

$32.81

19

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

19

Clutch

420257439

$152.96

20

Ball Bearing

420632377

$46.24

21

Retaining Ring

420245951

$5.39

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Spring Sleeve

420229577

$17.13

24

Compression Spring

420239135

$5.87

25

Hex. Screw M10 X 110

420441485

$11.37

26

Thrust Washer

420627594

$11.81

27

CVT Driven Pulley Ass'y | Includes 27 to 40

420684450

Unavailable

27

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Ball Bearing

420932421

$26.09

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

32

Retaining Ring

420245911

$5.31

33

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Compression Spring

420238340

Unavailable

37

Driven Pulley Shaft

420220913

$120.87

38

Cam

420280250

$40.27

39

Cam Plate

420627586

$43.25

40

Drive Belt

422280283

$92.51

41

Thrust Washer

420627920

$6.93

42

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
