- Outlander 400 XT 4 X 4, 2005
01- Cooling System

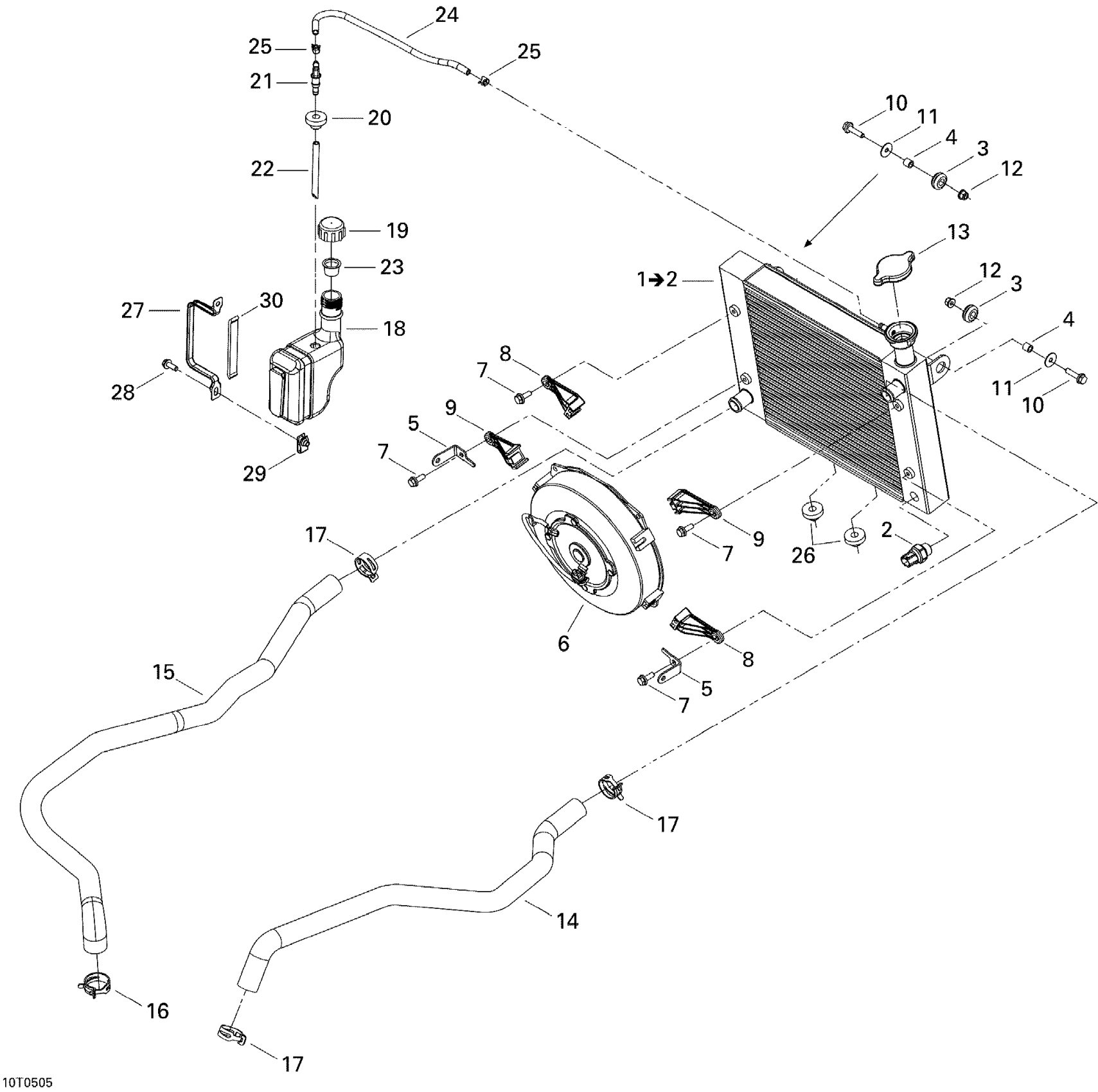

Can-Am Outlander 400 XT 4 X 4, 2005 01- Cooling System Diagram
#
Description
Price
1
Radiator Ass'y
709200072
Unavailable
2
Temperature Sensor
715900095
Unavailable
3
Grommet
709000582
Unavailable
4
Bushing
293900105
Unavailable
5
SUPPORT - Call your local BRP dealership
709200284
Unavailable
6
FAN ASS'Y - Call your local BRP dealership
709200075
Unavailable
7
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
8
FAN SUPPORT - Call your local BRP dealership
709200076
Unavailable
9
FAN SUPPORT - Call your local BRP dealership
709200095
Unavailable
10
Hex. Flange Screw M6 X 25
207662544
Unavailable
11
Flat Washer
250200082
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Radiator Pressure Cap
709200207
Unavailable
14
RADIATOR INLET HOSE - Call your local BRP dealership
709200077
Unavailable
15
RADIATOR OUTLET HOSE - Call your local BRP dealership
709200123
Unavailable
16
Norma Spring Clamp
293650108
Unavailable
17
Norma Spring Clamp
293650109
Unavailable
18
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
19
TANK CAP - Call your local BRP dealership
709200009
Unavailable
20
Grommet
709200285
Unavailable
21
Elbow Male Connector
414580600
Unavailable
22
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
23
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
24
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
25
Spring Clamp
414554800
Unavailable
26
Grommet
709200285
Unavailable
27
TANK ANCHOR - Call your local BRP dealership
709200080
Unavailable
28
Hex. Flange Screw M6 X 16
210261650
Unavailable
29
Panel Nut M6 X 1.0
250100198
Unavailable
30
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
