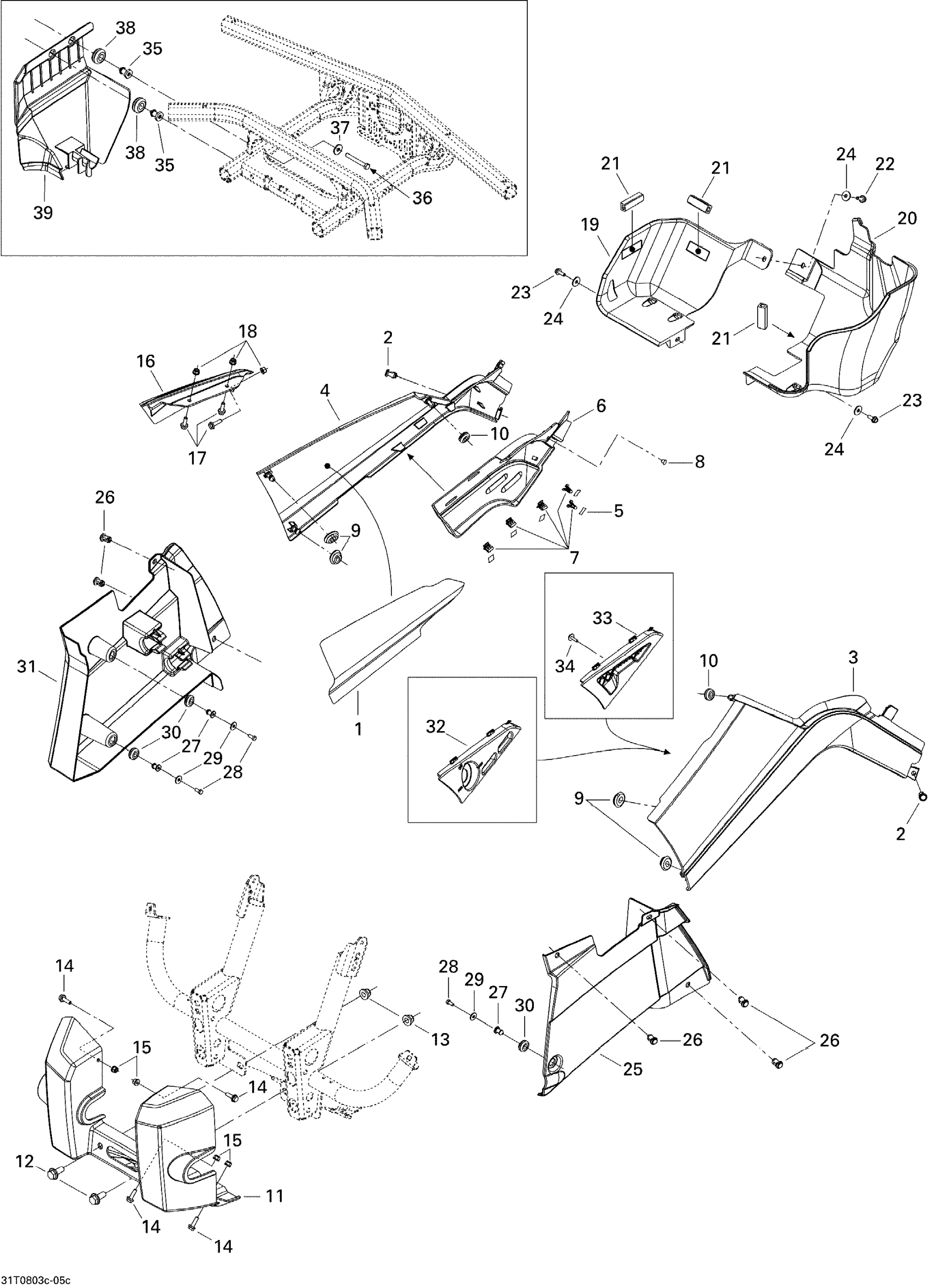

Can-Am Outlander 400 XT, 2008 09- Body And Accessories 3, XT Diagram
#
1
REFLECTIVE SHEET - Call your local BRP dealership
705000750
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
RED LH SIDE PANEL - Call your local BRP dealership | Viper Red
705003499
Unavailable
3
LH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003651
Unavailable
3
PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow
705003498
Unavailable
4
Red RH Side Panel | Viper Red
705003502
Unavailable
4
RH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003652
Unavailable
4
PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow
705003501
Unavailable
5
Heat Shield | Europe
517305451
Unavailable
6
MUFFLER COVER - Call your local BRP dealership
705001685
Unavailable
7
Edge Clip
517302785
Unavailable
8
Rubber Bumper
293830005
Unavailable
9
Oval Washer
705005156
Unavailable
10
Grommet
705003264
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Hex. Flange Elastic Nut M10
233201414
Unavailable
14
Hex. Flange Screw M6 X 20
207662044
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
17
Hex. Flange Screw M6 X 20
207662044
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
RH TANK PROTECTOR - Call your local BRP dealership
705000554
Unavailable
20
LH TANK PROTECTOR - Call your local BRP dealership
705002176
Unavailable
21
Was 293200017 Neoprene Seal
219704365
Unavailable
22
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
23
Hex. Flange Screw M6 X 12
210261250
Unavailable
24
Flat Washer
250200082
Unavailable
25
LH Inner Fender
705000652
Unavailable
26
Tuflok Plastic Rivet
293150230
Unavailable
27
Knob
517303439
Unavailable
28
Torx Screw K50 X 16
250000720
Unavailable
29
Washer | DS 650 X
391301600
Unavailable
30
Grommet
709000582
Unavailable
31
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
32
VALVE SUPPORT - Call your local BRP dealership
705001691
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
