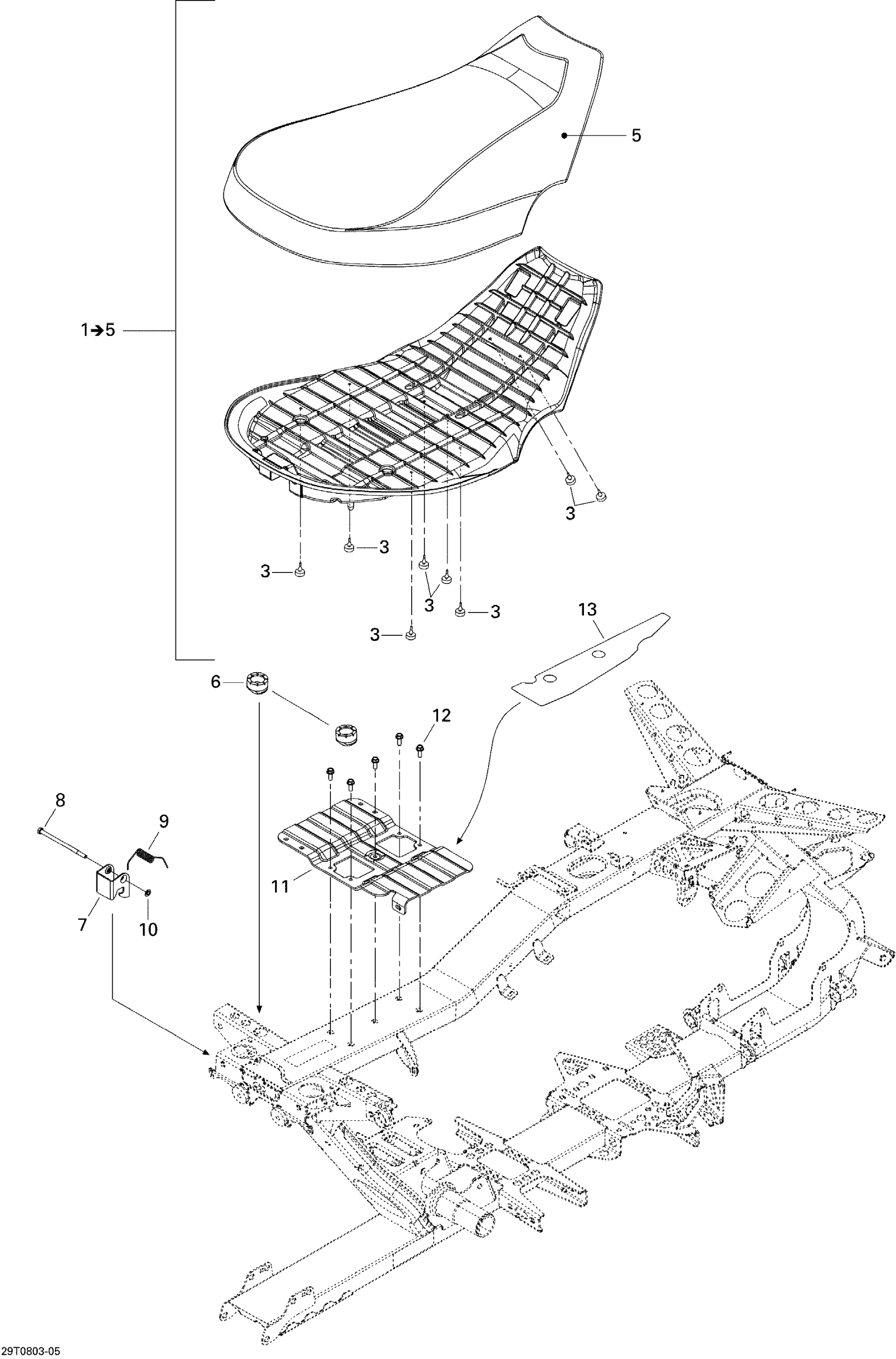

Can-Am Outlander 400 EFI XT, 2008 Seat Diagram

#

Description

Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

3

Rubber Stopper

708000759

$4.19

5

Seat Cover

708000556

$126.99

6

Bumper Rubber

708000760

$10.49

7

Latch, Black

708000144

$11.99

8

Hex. Screw M6 X 110

230061044

$1.48

9

Spring

708000369

$9.19

10

Push Nut

732610072

$2.19

11

Seat Reinforcement

708000629

$33.99

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13

REFLECTING SHEET - Call your local BRP dealership

708000649

Unavailable
