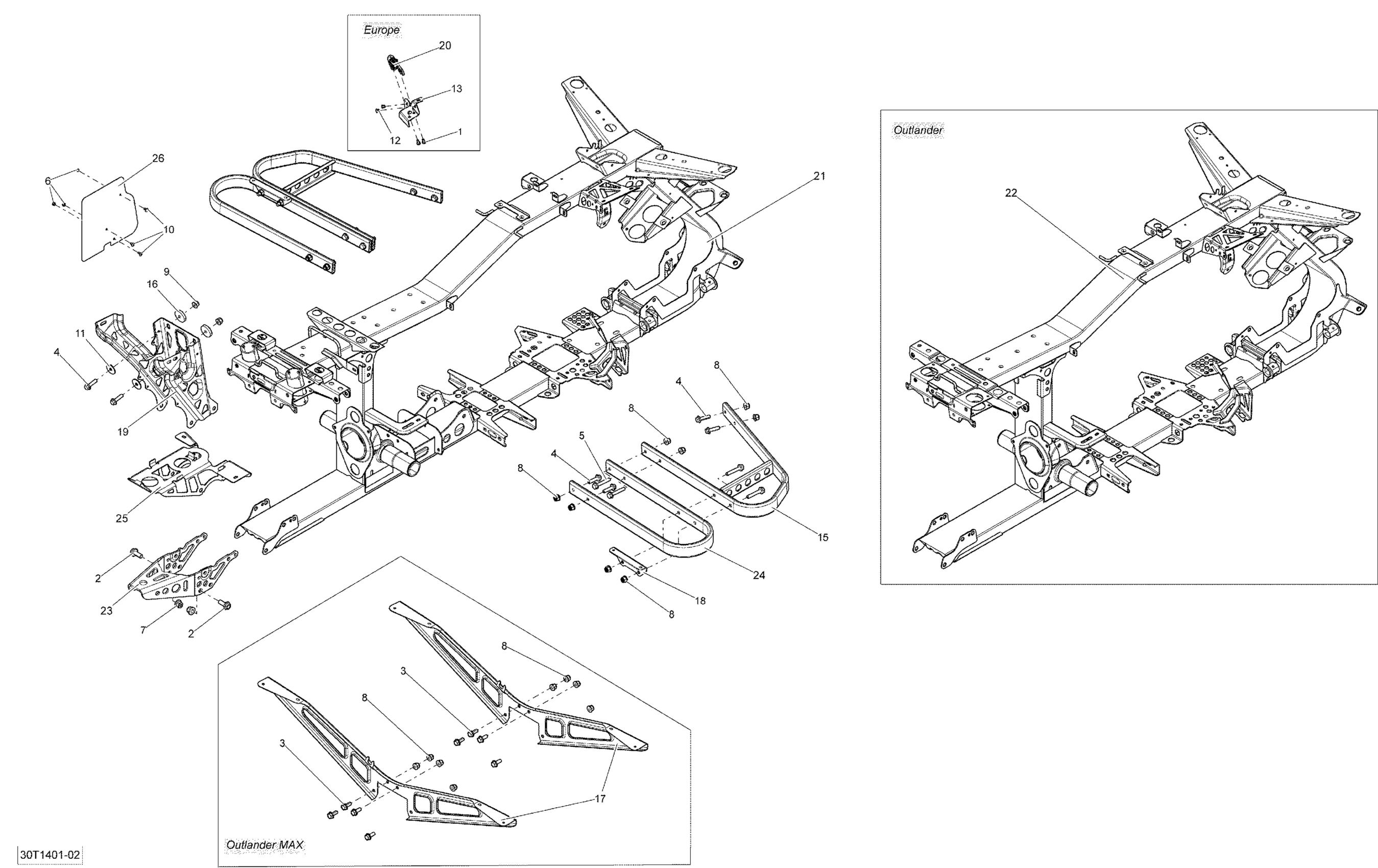

Can-Am Outlander 400 EFI, STD, XT, 2014 Frame Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.38

2

Hex. Flange Screw M10 X 25

207602544

$1.33

3

Not Available As Spare Parts

XXX

Unavailable

4

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

5

Hex. Flange Screw M8 X 45

207684544

$3.68

6

Elastic Stop Nut M4

232541484

$0.61

7

Hex. Flange Elastic Nut M10

233201436

$1.74

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Torx Screw M4 X 8

250000127

$1.09

11

FLAT WASHER - Call your local BRP dealership

250200073

$1.69

12

Pop Rivet 3/16"

390402400

$0.25

13

LOCK SUPPORT - Call your local BRP dealership | Europe

705201707

Unavailable

15

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

$69.99

16

SPACER - Call your local BRP dealership

705202084

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

19

Rear Support, Black

705203842

$42.99

20

Padlock with Key

707000666

$27.66

21

Not Available As Spare Parts

XXX

Unavailable

22

FRAME, BLACK. - Call your local BRP dealership

705203837

$859.99

23

TRAILER HOOK KIT - Call your local BRP dealership

715000286

Unavailable

24

REAR FOOTREST - Call your local BRP dealership

705201993

$39.99

25

Battery Support Base

705201942

$34.99

26

Heat Shield

705202394

Unavailable
