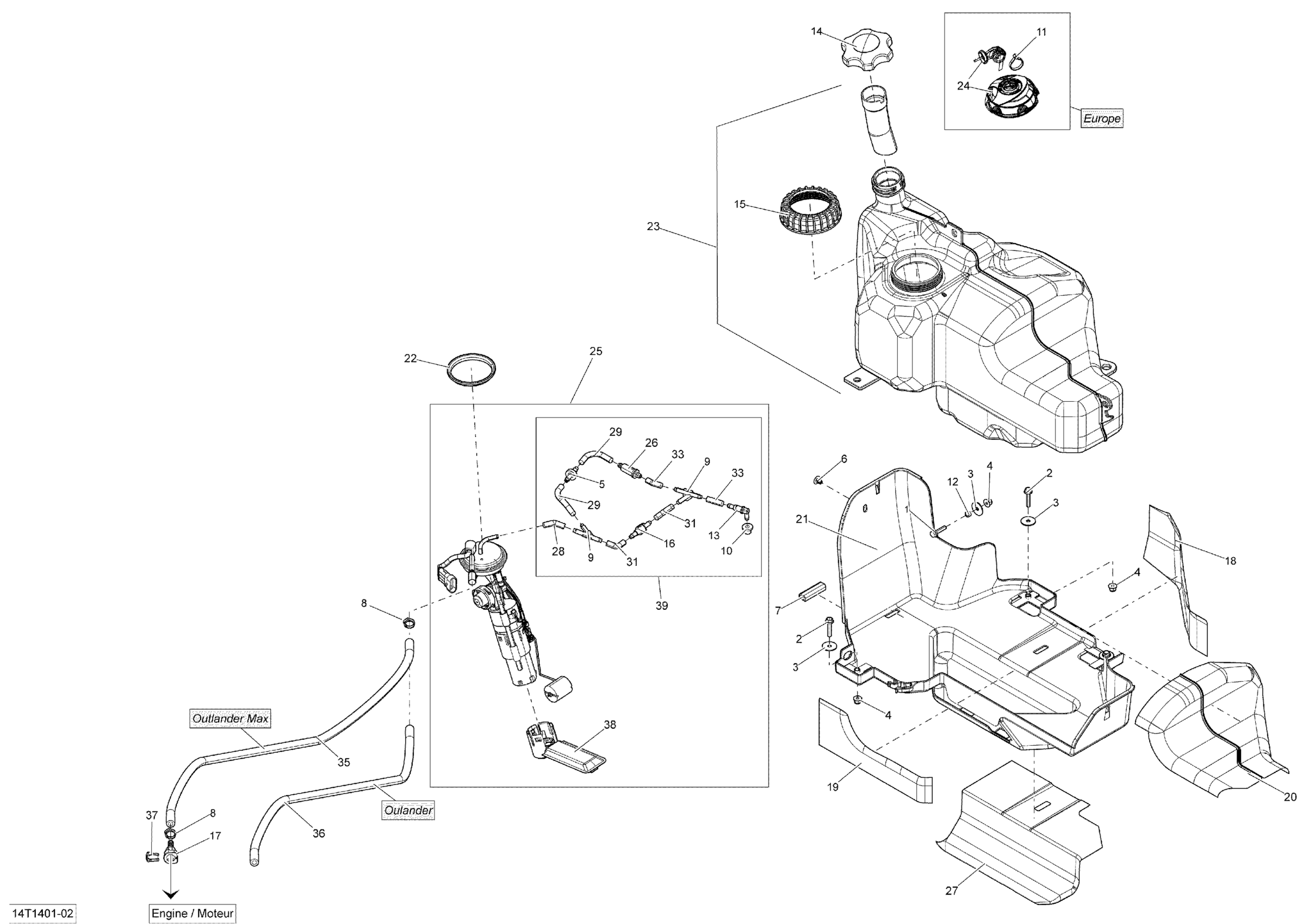

Can-Am Outlander 400 EFI, STD, XT, 2014 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662534

$2.19

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.19

3

Washer

224060251

$1.49

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

5

Check Valve

275500398

$11.49

6

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

7

Was 293200017 Neoprene Seal

219704365

$154.99

8

Crimp Clamp, 15.3-706R

293650047

$3.39

9

Y-Fitting

293710059

$9.89

10

Grommet

293720029

$1.69

11

Tie Wrap 94 mm | 4X4

293750001

$1.49

12

Bushing | DS 650 X

293900104

$5.50

13

Elbow Male Connector

414580600

$4.29

14

Fuel Tank Cap

513033025

$25.99

15

Nut, Fuel Pump Module

513033040

$29.99

16

Check Valve

513033469

$32.99

17

Female Quick Fitting Ass'y

709000125

$15.99

18

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

19

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

20

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable

21

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

22

Seal

709000208

$14.99

23

Fuel Tank Ass'y

709000220

$249.99

24

Locking Cap Tank | Europe

860200387

$59.99

25

Fuel Pump Kit Ass'y

703500766

$372.49

26

Filter

709000330

$7.79

27

REFLECTING SHEET - Call your local BRP dealership

709000360

Unavailable

28

Polyurethane Hose 10000Mm Long

219704410

$57.99

29

Polyurethane Hose 10000Mm Long

219704410

$57.99

31

Polyurethane Hose 10000Mm Long

219704410

$57.99

33

Polyurethane Hose 10000Mm Long

219704410

$57.99

35

Was 709000163 Fuel Line

219704440

$28.99

36

Was 709000163 Fuel Line

219704440

$28.99

37

Locking Clip

513033135

$5.99

38

Fuel Pre-Filter Kit

709000389

$79.49

39

Fuel Vent Kit

715001288

$33.99
