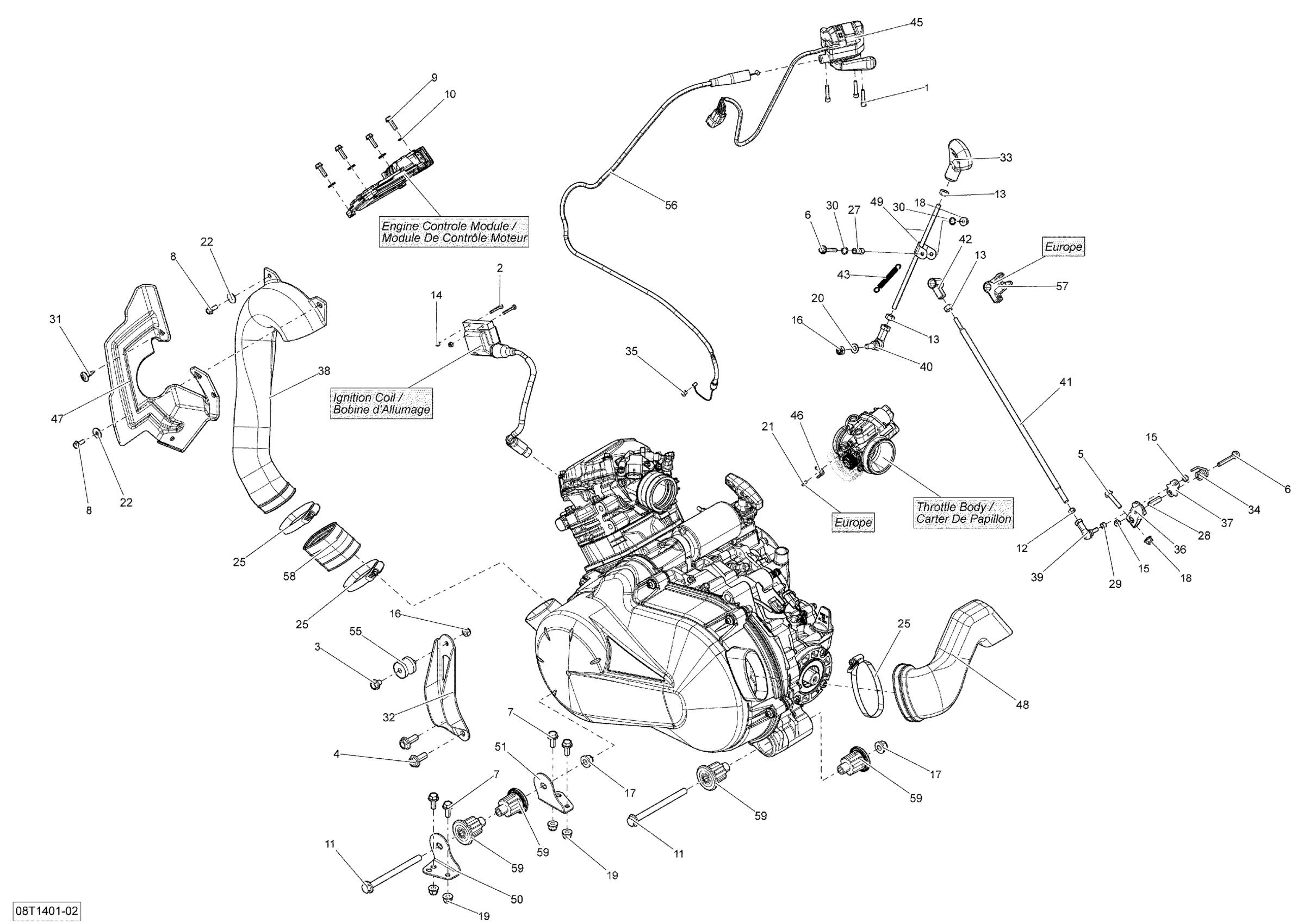

Can-Am Outlander 400 EFI, STD, XT, 2014 Engine Diagram

#

Description
Price

1

Socket Head Screw M5 X 25

205052588

$1.56

2

Hex. Screw M4 X 25

207142544

$1.63

3

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

4

Hex. Flange Screw M10 X 25

207602544

$1.33

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Hex. Flange Screw M6 X 40

207664044

$2.18

7

Hex. Flange Screw M8 X 20

207682044

$0.92

8

Hex. Flange Screw M6 X 16

210261650

$1.22

9

Hexagonal Head Screw

210262050

$1.74

10

Flat Washer

224061121

$0.44

11

Hex. Flange Screw M10 X 125

230602546

$6.08

12

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

13

Hex. Nut M8

232081414

$0.60

14

Elastic Stop Nut M4

232541414

$0.48

15

Elastic Stop Nut M6

232561414

$1.55

16

Hex. Elastic Stop Nut M8

232581414

$0.47

17

Hex. Flange Elastic Nut M10

233201436

$1.74

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Flat Washer 8 mm

234081410

$0.69

21

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

22

Flat Washer

250200082

$0.35

25

Norma Clamp

293650091

$4.60

27

Bushing

293900075

$11.98

28

Bushing

293900079

$8.49

29

Bushing | DS 650 X

293900104

$5.26

30

O-RING - Call your local BRP dealership

414583300

Unavailable

31

Tuflock Phillips Plastic Screw

414745900

$1.30

32

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

$13.83

33

Lever Handle

707000284

$18.43

34

Spring

707000310

$9.37

35

Cable Guide

707000434

$10.52

36

Lever

707000503

$36.89

37

Pivot Plate

707000507

$7.69

38

AIR INTAKE - Call your local BRP dealership

707000540

$14.65

39

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

40

RH Ball Joint

707001959

$35.35

41

Threaded Rod

707000567

$34.58

42

PIVOT - Call your local BRP dealership

707000568

Unavailable

43

Spring

707000569

$8.45

45

Throttle Handle | 4X4

707000595

$73.82

46

Speed Limiter | Europe

707000573

$12.68

46

Speed Limiter | Europe

707000658

Unavailable

47

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

$12.20

48

AIR OUTLET - Call your local BRP dealership

707000718

Unavailable

49

Lever Arm

707000786

$36.89

50

ENGINE BRACKET - Call your local BRP dealership

707000802

$10.57

51

ENGINE BRACKET - Call your local BRP dealership

707000803

$8.94

55

Rubber Isolator

707000949

$9.00

56

THROTTLE CABLE - Call your local BRP dealership

707000974

$14.65

57

PIVOT - Call your local BRP dealership | Europe

707000977

Unavailable

58

Flexibale Adaptor

707002585

$14.75

59

Anti Vibration Buffer

707001170

$23.05
