- Outlander 400 EFI, STD(International only), 2015
10- Electrical System _20T1526

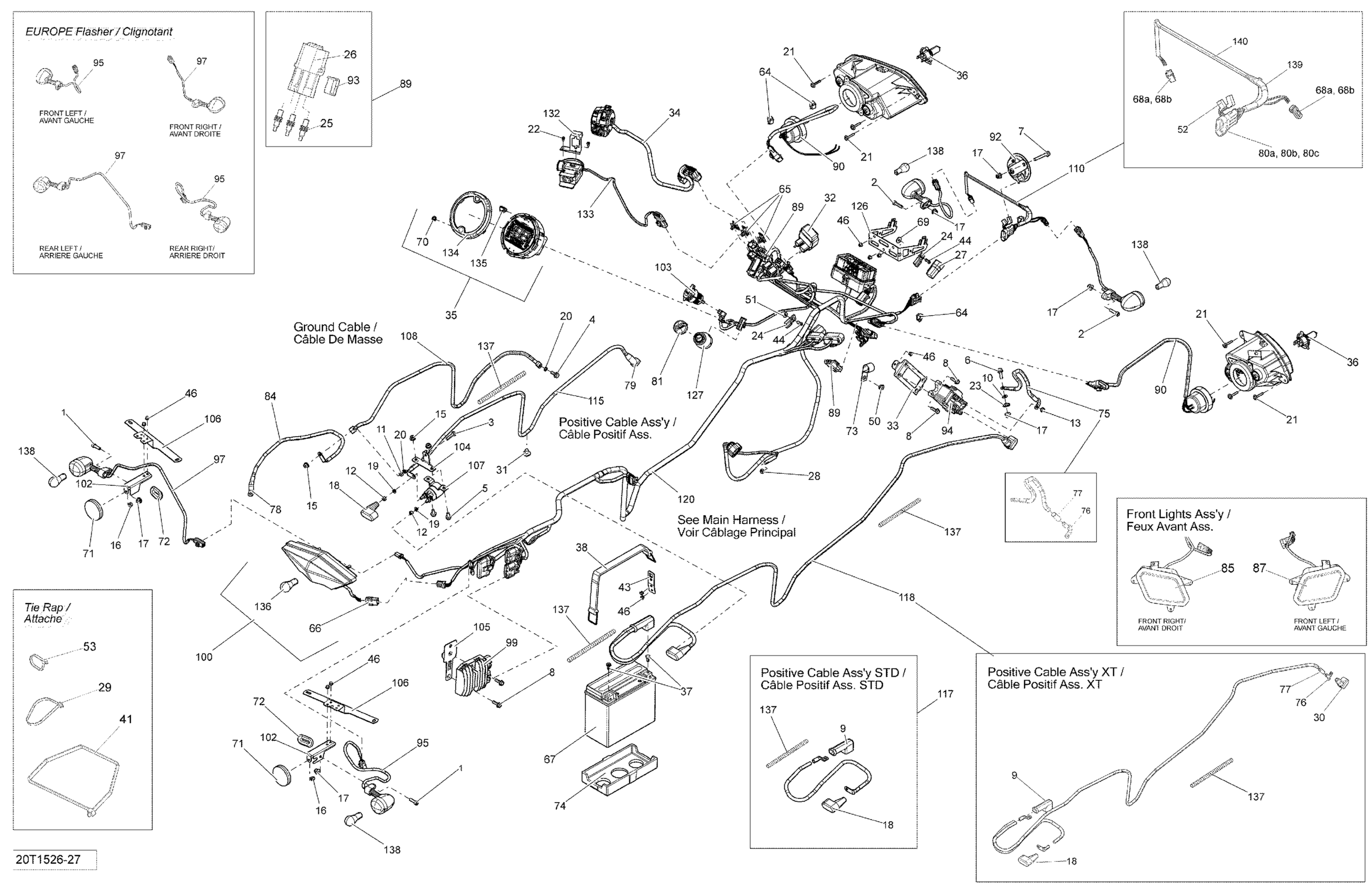

Can-Am Outlander 400 EFI, STD(International only), 2015 10- Electrical System _20T1526 Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Hex. Screw M6 X 25
207162544
Unavailable
4
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
5
Hex. Flange Screw M6 X 12
207661244
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Hexagonal Head Screw
210262050
Unavailable
9
Protector Cap | STD Models
710001829
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Hex. Nut M6
232061414
Unavailable
12
Hex. Nut M6
232061600
Unavailable
13
Elastic Stop Nut M6
232561414
Unavailable
15
Hex. Flange Nut M6
233061414
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
Protector Cap | STD
710001817
Unavailable
19
Lock Washer Helical M6
234161601
Unavailable
20
External Serrated Lock Washer 6 mm
234461608
Unavailable
21
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
24
Clip
270000141
Unavailable
25
Wire Seal
278000216
Unavailable
26
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
27
Diagnostic Connector
278002704
Unavailable
28
Oetiker Clamp
293650100
Unavailable
29
Tie Wrap 368 mm
293750008
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Mount Dart
293730040
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
34
Handle Kit | STD
703500919
Unavailable
35
Speedometer Ass'y | Includes 18 to 21
710003100
Unavailable
36
Bulb, 12V 35/35W
710000871
Unavailable
37
Battery Bolt Kit
250000282
Unavailable
38
Retainer Strap
293850097
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
43
Strap Clip
293850030
Unavailable
44
Pop Rivet 3/16"
390402300
Unavailable
46
Pop Rivet 3/16"
390402400
Unavailable
50
Pop Rivet 3/16"
390406500
Unavailable
51
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
52
Not Available As Spare Parts
XXX
Unavailable
53
Tie-Rap 180 mm
414115200
Unavailable
64
Clip
414227300
Unavailable
65
Housing Support
515175283
Unavailable
66
Male Housing, 3 Circuits
515175494
Unavailable
67
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
68a
Not Available As Spare Parts
XXX
Unavailable
68b
Not Available As Spare Parts
XXX
Unavailable
69
Washer
517124300
Unavailable
70
BRP Logo13 mm
704904615
Unavailable
71
Not Available As Spare Parts
XXX
Unavailable
72
Not Available As Spare Parts
XXX
Unavailable
73
CLAMP - Call your local BRP dealership
705600311
Unavailable
74
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
78
Open Barrel | STD Models
710000518
Unavailable
79
Protector Cap
710000526
Unavailable
80a
Not Available As Spare Parts
XXX
Unavailable
80b
Not Available As Spare Parts
XXX
Unavailable
80c
Not Available As Spare Parts
XXX
Unavailable
81
Black, Electronic Key
710000817
Unavailable
84
Ground Cable Ass'y, Battery/Frame | Includes 1 to 4
710000830
Unavailable
85
Not Available As Spare Parts
XXX
Unavailable
85
RH Headlamp Ass'y | Includes 20 to 22
710001496
Unavailable
87
Not Available As Spare Parts
XXX
Unavailable
87
LH Headlamp Ass'y | Includes 24 to 26
710001497
Unavailable
89
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
90
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
92
Not Available As Spare Parts
XXX
Unavailable
93
Clip
710000992
Unavailable
93
Not Available As Spare Parts
XXX
Unavailable
94
Not Available As Spare Parts
XXX
Unavailable
95
Not Available As Spare Parts
XXX
Unavailable
97
Not Available As Spare Parts
XXX
Unavailable
99
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
100
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
100
Not Available As Spare Parts
XXX
Unavailable
102
Not Available As Spare Parts
XXX
Unavailable
103
DC Outlet
710001248
Unavailable
104
SOLENOID SUPPORT - Call your local BRP dealership
710001260
Unavailable
105
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
106
Not Available As Spare Parts
XXX
Unavailable
107
Starter Relay
710007777
Unavailable
108
Ground Cable | Includes 4 to 6
710001443
Unavailable
110
Not Available As Spare Parts
XXX
Unavailable
115
POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 27 to 31
710001820
Unavailable
117
Positive Cable Ass'y | STD, Includes 22 to 28
710001822
Unavailable
118
Not Available As Spare Parts
XXX
Unavailable
120
Not Available As Spare Parts
XXX
Unavailable
120
Main Harness Ass'y | Includes 1 to 1028
710002113
Unavailable
126
FUSE SUPPORT - Call your local BRP dealership
710002176
Unavailable
127
Ignition Switch | Includes 16 to 17
710002324
Unavailable
132
Not Available As Spare Parts
XXX
Unavailable
133
Not Available As Spare Parts
XXX
Unavailable
134
Trim Ring
710001416
Unavailable
135
Button
710001473
Unavailable
136
Bulb
520000758
Unavailable
137
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
138
Not Available As Spare Parts
XXX
Unavailable
139
Not Available As Spare Parts
XXX
Unavailable
140
Not Available As Spare Parts
XXX
Unavailable
