- Outlander 400 EFI, STD(International only), 2015
09- Frame _30T1526

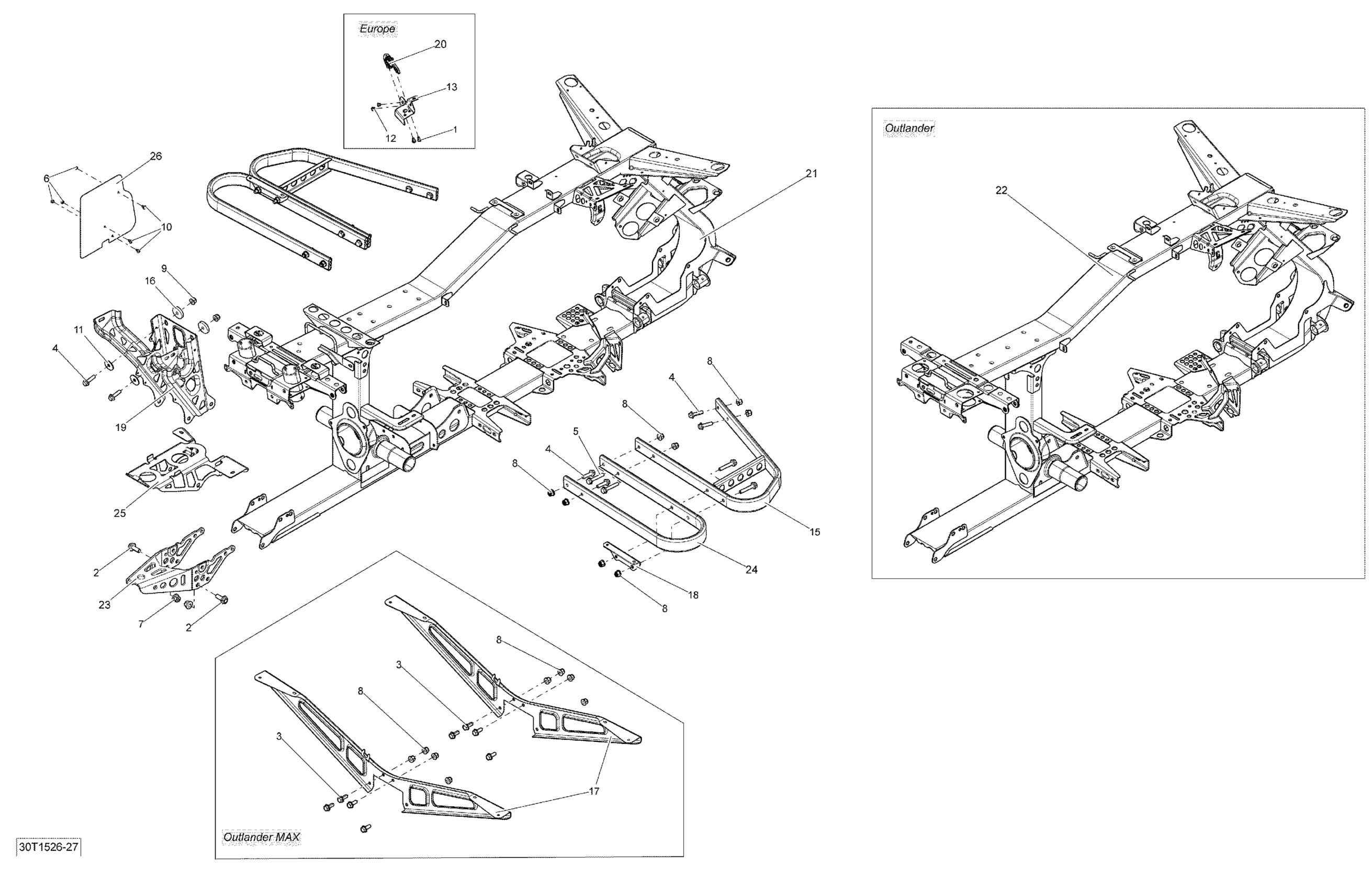

Can-Am Outlander 400 EFI, STD(International only), 2015 09- Frame _30T1526 Diagram
#
Description
Price
1
Not Available As Spare Parts
XXX
Unavailable
2
Hex. Flange Screw M10 X 25
207602544
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
5
Hex. Flange Screw M8 X 45
207684544
Unavailable
6
Elastic Stop Nut M4
232541484
Unavailable
7
Hex. Flange Elastic Nut M10
233201436
Unavailable
8
Hex. Flange Elastic Nut M8
233281414
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Torx Screw M4 X 8
250000127
Unavailable
11
FLAT WASHER - Call your local BRP dealership
250200073
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
15
OOTBOARD ASS'Y - Call your local BRP dealership
705202081
Unavailable
16
SPACER - Call your local BRP dealership
705202084
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
SUPPORT PLATE, BLACK - Call your local BRP dealership
705202402
Unavailable
19
Rear Support, Black
705203842
Unavailable
20
Not Available As Spare Parts
XXX
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
FRAME, BLACK. - Call your local BRP dealership
705203837
Unavailable
23
TRAILER HOOK KIT - Call your local BRP dealership
715000286
Unavailable
24
REAR FOOTREST - Call your local BRP dealership
705201993
Unavailable
25
Battery Support Base
705201942
Unavailable
26
Heat Shield
705202394
Unavailable
