- Outlander 400 EFI, STD(International only), 2015
08- Drive System, Rear _13T1526

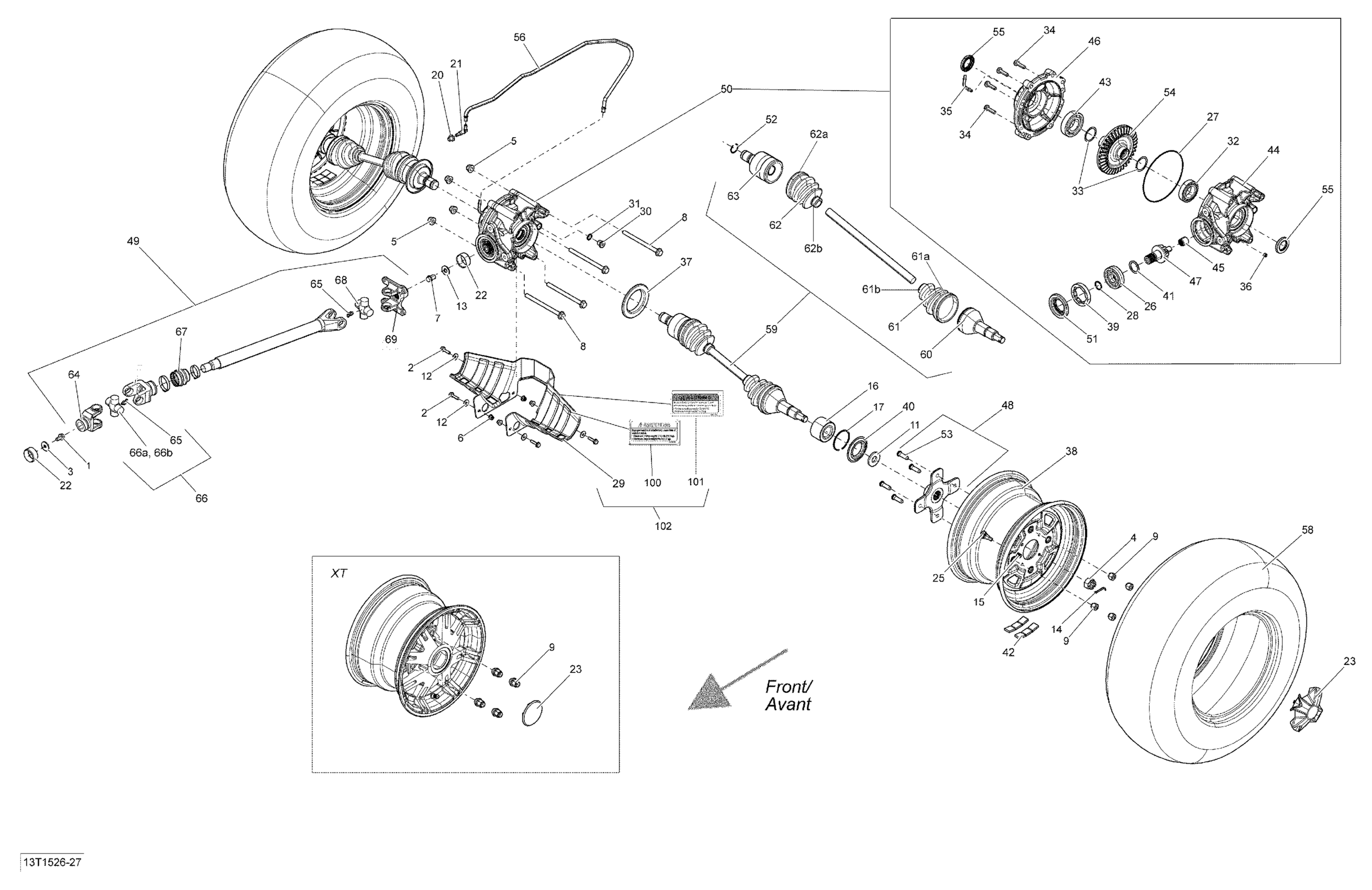

Can-Am Outlander 400 EFI, STD(International only), 2015 08- Drive System, Rear _13T1526 Diagram
#
1
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
2
Hex. Flange Screw M6 X 25
207662544
Unavailable
3
Washer
211200041
Unavailable
4
Hex. Flange Castellated Nut M18
232291413
Unavailable
5
Hex. Flange Elastic Nut M10
233201436
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
8
Hex. Flange Screw M10 X 135
250001041
Unavailable
9
Steel Wheel Nut
250100042
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
11
Conical Spring Washer M18
250200171
Unavailable
12
Flat Washer
250200082
Unavailable
13
Flat Washer M12
250200102
Unavailable
14
Cotter Pin
250400036
Unavailable
15
Valve Cap
293000110
Unavailable
16
Ball Bearing
293350150
Unavailable
17
Circlip
293370019
Unavailable
20
Grommet
293720029
Unavailable
21
Elbow Male Connector
414580600
Unavailable
22
Wear Ring | 4X4
705400036
Unavailable
23
Wheel Cap | STD
705400563
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
25
Rim Valve With Cap
705400193
Unavailable
26
Ball Bearing | 4X4
705500260
Unavailable
27
Seal | 4X4
705500265
Unavailable
28
O-Ring | 4X4
705500267
Unavailable
29
Protector Kit | Includes 38 to 39
703500722
Unavailable
30
Fill Level Plug | 4X4
705500504
Unavailable
31
Copper Washer | 4X4
705500506
Unavailable
32
Ball Bearing
705502737
Unavailable
33
Differential Shim 0.02 mm
705502060
Unavailable
34
Screw | 4X4
705401601
Unavailable
35
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
36
Drain Plug | 4X4
705500894
Unavailable
37
WEAR SLEEVE - Call your local BRP dealership
705500901
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
38
Black, Rim | STD
705501607
Unavailable
39
Nut
705502059
Unavailable
40
Wear Sleeve | 4X4
705501121
Unavailable
41
Pinion Gear Shim 1.67 mm
705502061
Unavailable
41
Pinion Gear Shim
705501162
Unavailable
42
1/2 Oz Weight
219704465
Unavailable
43
Ball Bearing
705502738
Unavailable
44
PINION REAR COVER - Call your local BRP dealership
705501395
Unavailable
45
Needle Bearing
705501408
Unavailable
46
REAR DIFFERENTIAL COVER - Call your local BRP dealership
705501507
Unavailable
47
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
48
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
49
Rear Propeller Shaft | Includes 1 to 9
703500825
Unavailable
50
Differential Kit | Includes 10 to 29
703501033
Unavailable
51
Oil Seal | 4X4
705401481
Unavailable
52
Circlip
705501781
Unavailable
53
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
54
Ens Engrenage 10/36D *Gear-10/36 Too Kit
703500873
Unavailable
55
Oil Seal
705501996
Unavailable
56
Polyurethane Hose 10000Mm Long
219704410
Unavailable
58
Tire 25X10R12 MST | Traxter CVT STD
705503225
Unavailable
59
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
59
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
60
JOINT_CV EXT - Call your local BRP dealership | Up to February 2013
705501782
Unavailable
61
BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013
705501783
Unavailable
61a
Oetiker Clamp, Large
715900260
Unavailable
61b
Oetiker Clamp, Small
715900261
Unavailable
62
BOOT_CV JOINT KIT - Call your local BRP dealership | Up to February 2013
705501784
Unavailable
62a
Oetiker Clamp, Large
715900262
Unavailable
62b
Oetiker Clamp, Small
715900261
Unavailable
63
Not Available As Spare Part - Friction Washer
Unavailable
64
Fixed Yoke Joint
715900116
Unavailable
65
GREASE FITTING - Call your local BRP dealership
703500813
Unavailable
66
Ens. Croix*U-Joint Cross Kit
715900325
Unavailable
66a
U-Joint
715900183
Unavailable
66b
SNAP RING - Call your local BRP dealership
715900117
Unavailable
67
Rubber Boot
715900118
Unavailable
68
Universal Joint
715900326
Unavailable
69
FLANGE - Call your local BRP dealership
715900291
Unavailable
100
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
101
WARNING DECAL, TRAILER - Call your local BRP dealership | Europe
704901905
Unavailable
102
Protector Kit | Includes 38 to 39
703500722
Unavailable
