- Outlander 400 EFI, STD(International only), 2015
07- Drive System, Front _12T1526

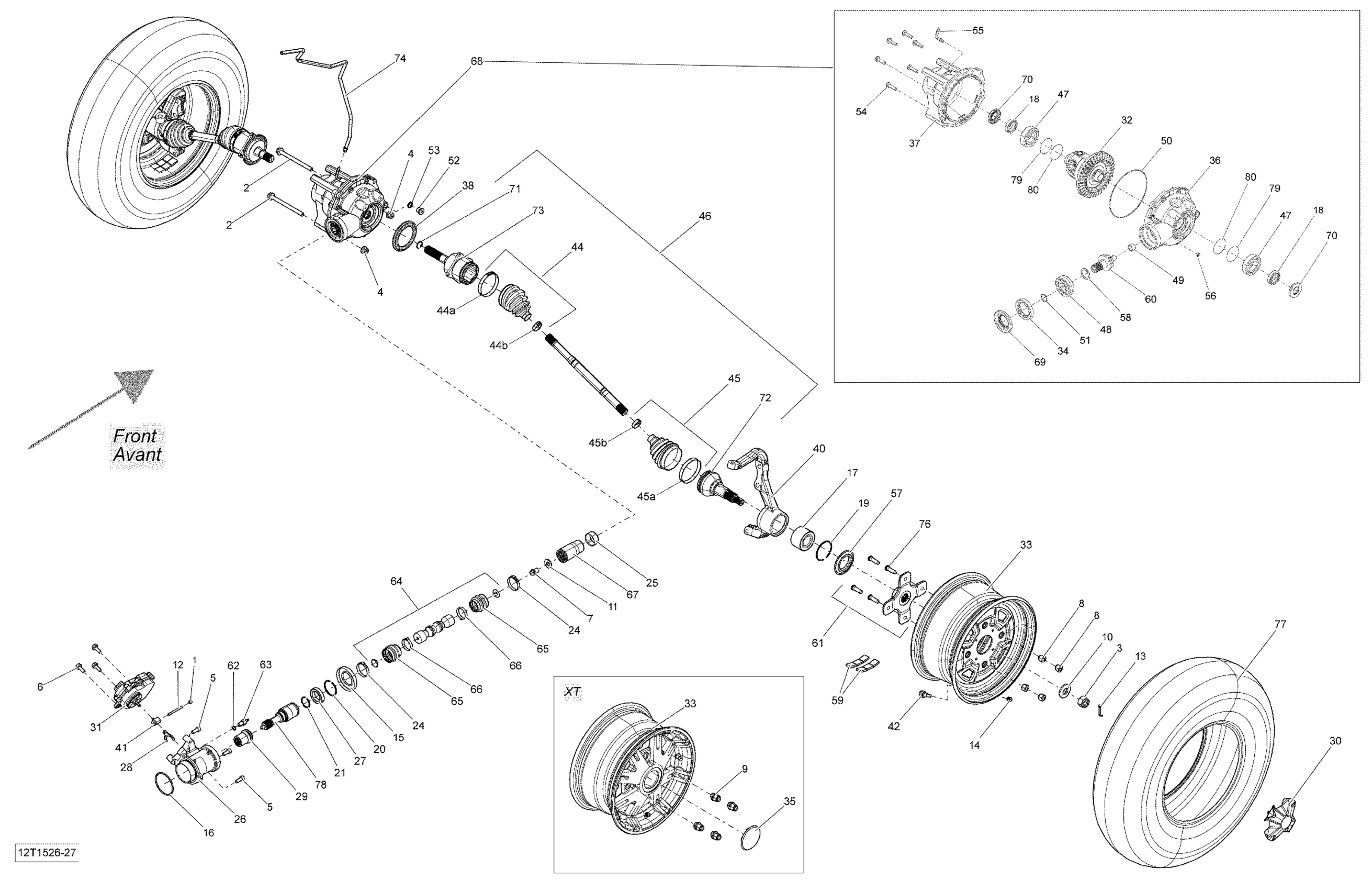

Can-Am Outlander 400 EFI, STD(International only), 2015 07- Drive System, Front _12T1526 Diagram
#
1
Pressure Screw M8 X 8 | 4X4
206580890
Unavailable
2
Hex. Flange Screw M10 X 125
230602546
Unavailable
3
Hex. Flange Castellated Nut M18
232291413
Unavailable
4
Hex. Flange Elastic Nut M10
233201436
Unavailable
5
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
6
Hex. Flange Screw M8 X 20, Scotch Grip | 4X4
250000137
Unavailable
7
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
8
Steel Wheel Nut
250100042
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
Conical Spring Washer M18
250200171
Unavailable
11
Flat Washer M12
250200102
Unavailable
12
Dowell Pin | 4X4
250400025
Unavailable
13
Cotter Pin
250400036
Unavailable
14
Valve Cap
293000110
Unavailable
15
Oil Seal | 4X4
293250138
Unavailable
16
O-Ring
293300091
Unavailable
17
Ball Bearing
293350150
Unavailable
18
Ball Bearing | 4X4
293350044
Unavailable
19
Circlip
293370019
Unavailable
20
Circlip | 4X4
293370029
Unavailable
21
Circlip | 4X4
293370030
Unavailable
24
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
25
Wear Ring | 4X4
705400036
Unavailable
26
HOUSING - Call your local BRP dealership | 4X4
705400169
Unavailable
27
Ball Bearing | 4X4
705400249
Unavailable
28
Shifter Lever Plate | 4X4
705401553
Unavailable
29
Coupling Sleeve | 4X4
705400389
Unavailable
30
Wheel Cap | STD
705400563
Unavailable
31
Actuator Ass'Y | Includes 72 to 74
715900502
Unavailable
32
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Nut | 4X4
705401603
Unavailable
35
Not Available As Spare Parts
XXX
Unavailable
36
FRONT COVER - Call your local BRP dealership
705400761
Unavailable
37
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
38
Wear Sleeve
705400780
Unavailable
40
LH Knuckle
705400816
Unavailable
40
RH Knuckle
705400818
Unavailable
41
Slider | 4X4
705402139
Unavailable
42
Rim Valve With Cap
705400193
Unavailable
44
Boot Kit, Differential Side
705401346
Unavailable
44a
Oetiker Clamp, Large
715900284
Unavailable
44b
Oetiker Clamp, Small
715900261
Unavailable
45
Boot Kit, Wheel Side
705401345
Unavailable
45a
Oetiker Clamp
715900282
Unavailable
45b
Oetiker Clamp, Small
715900283
Unavailable
46
LH Half Shaft | Includes 42 to 47
705401578
Unavailable
46
RH Half Shaft | Includes 34 to 39
705401579
Unavailable
47
Ball Bearing | 4X4
705401606
Unavailable
48
Ball Bearing | 4X4
705500260
Unavailable
49
Needle Bearing | 4X4
705500261
Unavailable
50
Seal | 4X4
705500265
Unavailable
51
O-Ring | 4X4
705500267
Unavailable
52
Fill Level Plug | 4X4
705500504
Unavailable
53
Copper Washer | 4X4
705500506
Unavailable
54
Screw | 4X4
705401601
Unavailable
55
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
56
Drain Plug | 4X4
705500894
Unavailable
57
Wear Sleeve | 4X4
705501121
Unavailable
58
Pinion Gear Shim 1.67 mm
705502061
Unavailable
58
Pinion Gear Shim
705501162
Unavailable
59
1/2 Oz Weight
219704465
Unavailable
60
10 TEETH PINION - Call your local BRP dealership
705501588
Unavailable
61
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
62
Copper Washer
705601628
Unavailable
63
SWITCH - Call your local BRP dealership | 4X4
710000324
Unavailable
64
Front Drive Axle Ass'y | 4X4 / Includes 1 to 5
705400912
Unavailable
65
Rubber Boot
715900118
Unavailable
66
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
67
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
68
Front Differential | Includes 8 to 31
703500907
Unavailable
69
Oil Seal | 4X4
705401481
Unavailable
70
Gasket | 4X4
705401618
Unavailable
71
Circlip Joint | Not shown
705401349
Unavailable
72
CV Joint
705401344
Unavailable
73
JOINT-PLUNGING - Call your local BRP dealership
715900310
Unavailable
73
JOINT-PLUNGING - Call your local BRP dealership
715900309
Unavailable
74
Polyurethane Hose 10000Mm Long
219704410
Unavailable
76
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
77
Tire 205 X 80 R12
705402890
Unavailable
78
UNION SHAFT - Call your local BRP dealership | 4X4
705400917
Unavailable
79
Shim | 4X4
705401604
Unavailable
80
Shim | 4X4
705401604
Unavailable
