- Outlander 400 EFI STD, 2008
09- Body And Accessories 3, STD

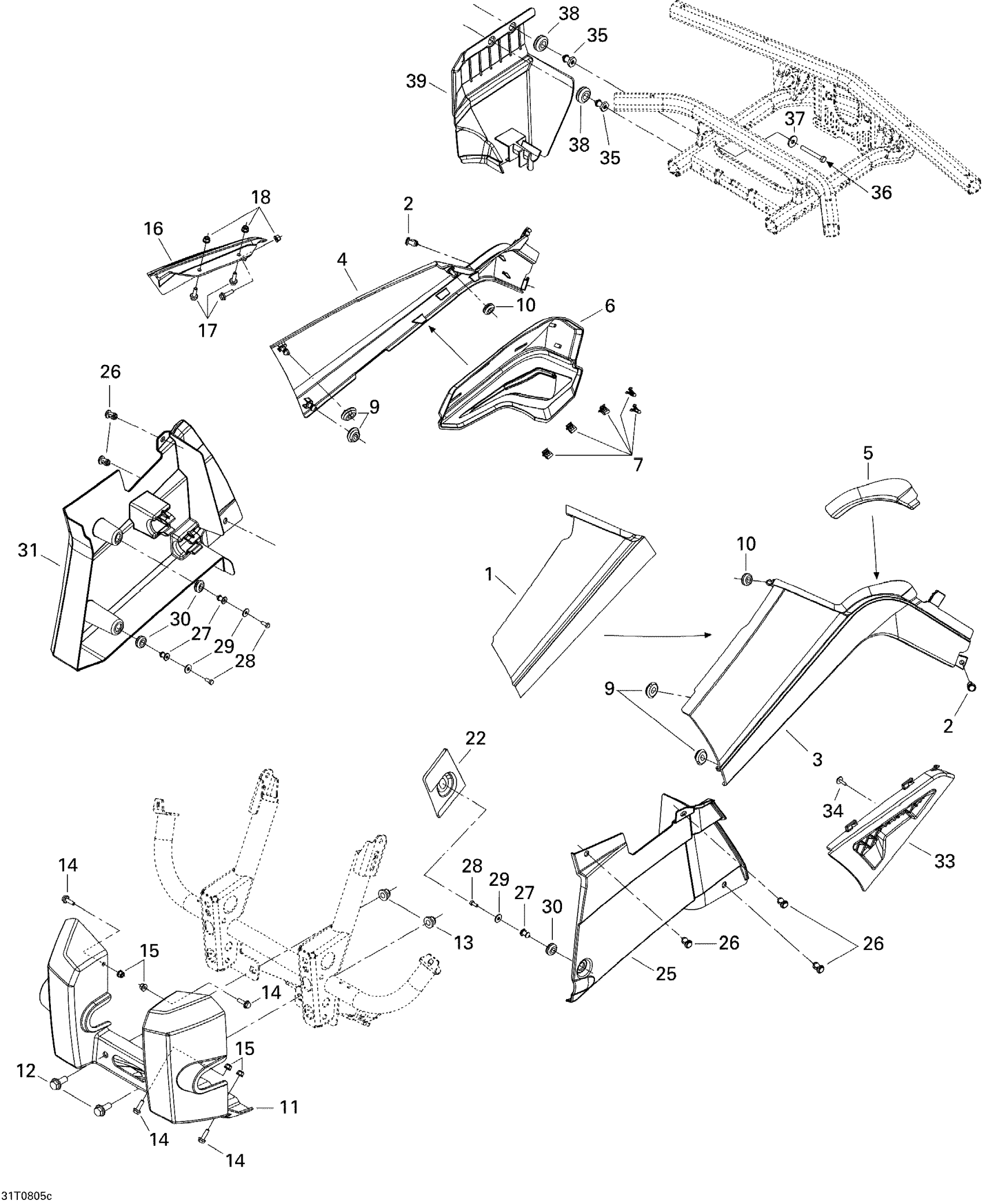

Can-Am Outlander 400 EFI STD, 2008 09- Body And Accessories 3, STD Diagram
#
1
REFLECTIVE SHEET - Call your local BRP dealership
705002491
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
RED LH SIDE PANEL - Call your local BRP dealership | Viper Red
705003499
Unavailable
3
LH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003651
Unavailable
3
PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow
705003498
Unavailable
4
Red RH Side Panel | Viper Red
705003502
Unavailable
4
RH SIDE PANEL - Call your local BRP dealership | Laurentian Green
705003652
Unavailable
4
PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow
705003501
Unavailable
5
Reflective Sheet
705002793
Unavailable
6
MUFFLER COVER - Call your local BRP dealership
705002664
Unavailable
7
Edge Clip
517302785
Unavailable
9
Oval Washer
705005156
Unavailable
10
Grommet
705003264
Unavailable
11
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
12
Hex. Flange Screw M10 X 25
207602544
Unavailable
13
Hex. Flange Elastic Nut M10
233201414
Unavailable
14
Hex. Flange Screw M6 X 20
207662044
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
17
Hex. Flange Screw M6 X 20
207662044
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Reflective Sheet
705003830
Unavailable
25
LH Inner Fender
705000652
Unavailable
26
Tuflok Plastic Rivet
293150230
Unavailable
27
Knob
517303439
Unavailable
28
Torx Screw K50 X 16
250000720
Unavailable
29
Washer | DS 650 X
391301600
Unavailable
30
Grommet
709000582
Unavailable
31
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
33
CONSOLE CAP - Call your local BRP dealership
705002493
Unavailable
34
Screw M4 X 16
250000725
Unavailable
35
Knob
517303439
Unavailable
36
HEX. SCREW K50 X 50 - Call your local BRP dealership
241055030
Unavailable
37
Washer | DS 650 X
391301600
Unavailable
38
Grommet
709000582
Unavailable
39
Thread Cover
705004036
Unavailable
