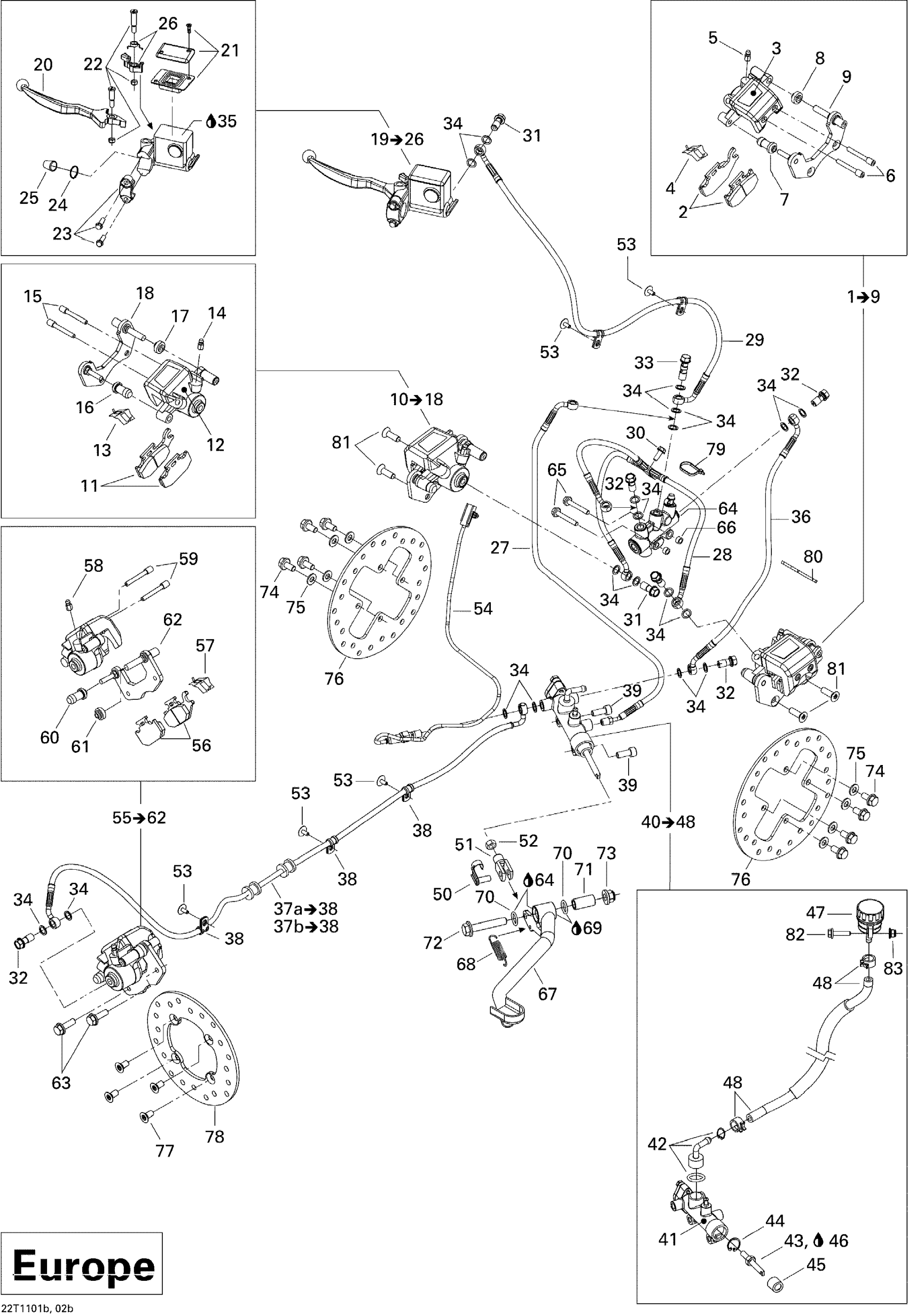

Can-Am Outlander 400 EFI, 2011 Hydraulic Brakes Europe Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600728

Unavailable

2

Brake Pad Kit

705600004

$49.97

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600729

Unavailable

11

Brake Pad Kit

705600014

$49.39

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

20

Lever Arm

705600243

$50.74

21

Cap Set

705600084

$23.05

22

Brake Lever Bolt Kit

705600246

$14.75

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

27

LINE BRAKE - Call your local BRP dealership

705600756

Unavailable

28

LINE BRAKE - Call your local BRP dealership

705600757

Unavailable

29

LINE BRAKE - Call your local BRP dealership

705600758

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

32

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

33

Banjo Bolt

705600958

$7.60

34

Copper Washer

705601628

$4.34

34

Copper Washer

705601628

$4.34

35

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

36

LINE BRAKE - Call your local BRP dealership

705600759

Unavailable

37a

Rear Hose | Includes 34 to 35

705600929

$87.66

37b

REAR HOSE - Call your local BRP dealership | Includes 34 to 35

705600581

Unavailable

38

Clamp

293650256

$4.36

39

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

40

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership | Includes40 to 48

705600743

Unavailable

41

Piston Set

705600255

Unavailable

42

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Circlip

705600068

Unavailable

45

Compression Boot

705600090

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

48

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

50

Pin Kit

219702305

$26.62

51

Yoke

705600100

Unavailable

52

Hex. Nut M8

232081414

$0.60

53

Pop Rivet 3/16”

390910000

$0.48

54

Brake Switch

705600798

$50.74

55

REAR CALIPER - Call your local BRP dealership | Includes 55 to 62

705600791

Unavailable

56

LH Brake Pad Kit

705600398

$49.39

57

Spring

705600079

$14.37

58

Bleeding Screw

705600080

$15.22

59

Pin Set (2)

705600081

$19.20

60

Compression Boot

705600082

$10.14

61

Compression Boot

705600083

$10.14

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

64

SPLITTER - Call your local BRP dealership

705600800

Unavailable

65

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

66

Bushing | DS 650 X

293900104

$5.26

67

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

68

Brake Pedal Spring

705600792

$9.22

69

Synthetic Grease, 400 G

293550010

Unavailable

70

O-Ring

293300144

$3.98

71

Inner Spacer

705600815

$10.98

72

Hex. Flange Screw M10 X 55

207605544

$2.78

73

Hex. Flange Elastic Nut M10

233201414

$1.26

74

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

75

Conical Spring Washer M8

234281474

$1.25

76

Disk Brake

705600603

$56.89

77

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

78

Disk Brake

705600604

$56.89

79

Tie-Rap 180 mm

414115200

$0.09

80

Tie-Rap 180 mm

414115200

$0.09

81

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

82

Hex. Flange Screw M6 X 25

207662544

$0.53

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
