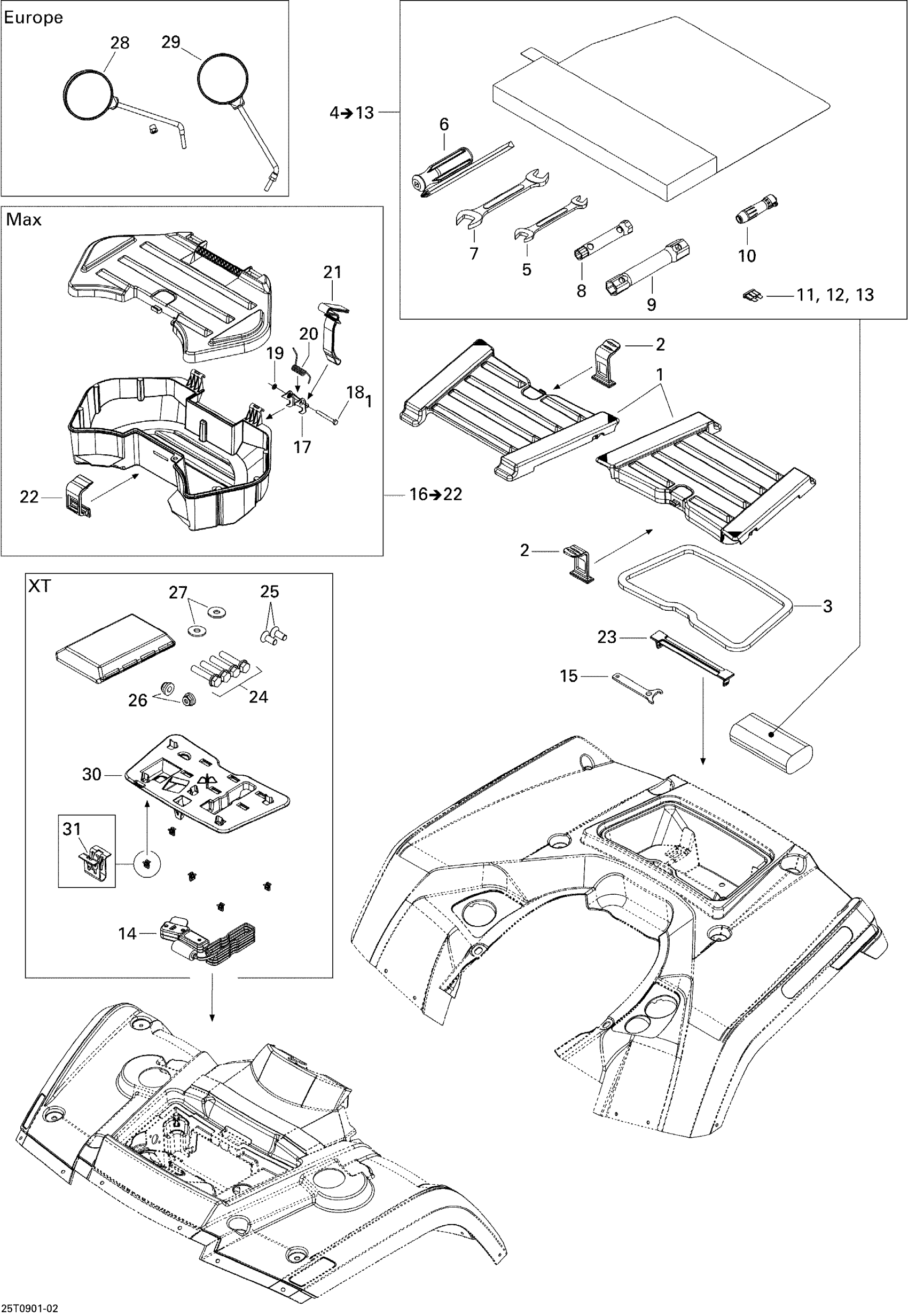

Can-Am Outlander 400 EFI, 2009 Front and Rear Trays Diagram

#

Description
Price

1

Storage Cover

705003492

$59.97

2

Cover Latch

708200120

$13.52

3

Neoprene Seal

293250192

$32.28

4

TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15

708200124

Unavailable

5

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

6

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

7

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

8

Socket Wrench 10/13 mm

529014900

$0.95

9

Socket Wrench 16/18 mm

295000175

Unavailable

10

PRESSURE GAUGE - Call your local BRP dealership

529000052

Unavailable

11

Fuse, 30 Amperes

410917200

$3.22

12

Fuse, 20 Amperes

409003900

$3.22

13

Fuse, 15 Amperes

278000343

$2.72

14

REMOTE CONTROL - Call your local BRP dealership | XT

710001002

Unavailable

15

Adjustment Wrench

529000035

$2.19

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

COVER LATCH KIT - Call your local BRP dealership

708200121

Unavailable

24

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

25

TORX SCREW M8 X 20 - Call your local BRP dealership | XT

235482084

Unavailable

26

Hex. Flange Elastic Nut M8

233281414

$1.14

27

Flat Washer 8 mm

234082410

$1.11

28

LH Mirror | Europe

709400406

$36.89

29

RH Mirror | Europe

709400523

$35.35

30

SUPPORT - Call your local BRP dealership | XT

708200075

Unavailable

31

Edge Clip

517302785

$0.70
