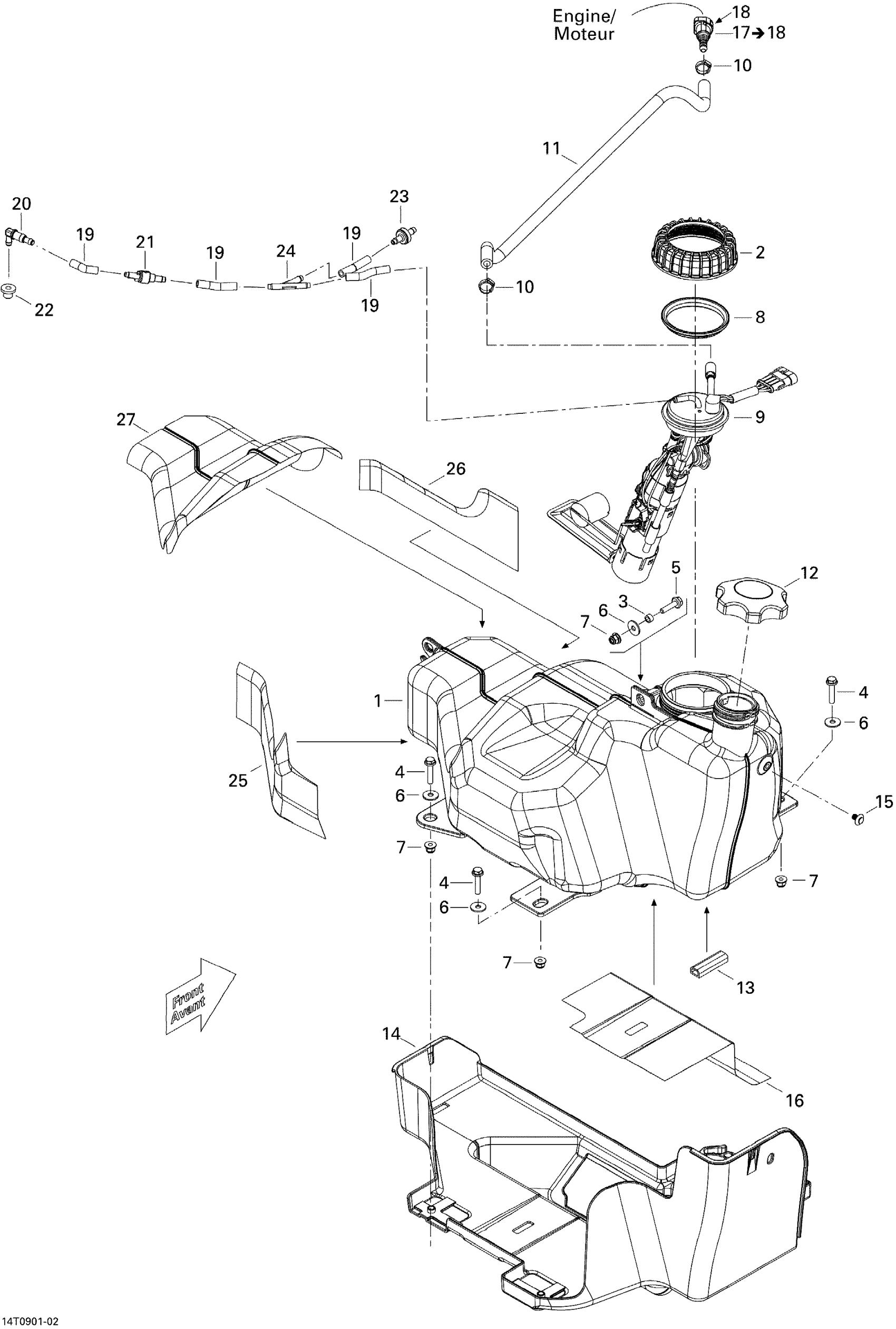

Can-Am Outlander 400 EFI, 2009 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

$235.35

2

Nut, Fuel Pump Module

513033040

$27.66

3

Bushing | DS 650 X

293900104

$5.26

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 25

207662534

$1.74

6

Flat Washer

250200082

$0.35

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Seal

709000208

$12.54

9

Fuel Pump Kit Ass'y

703500766

$353.87

10

Oetiker Clamp

293650046

$2.33

11

Was 709000163 Fuel Line

219704440

$27.66

12

Fuel Tank Cap

513033025

$19.47

13

Was 293200017 Neoprene Seal

219704365

$118.27

14

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

15

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

16

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

17

Female Quick Fitting Ass'y

709000125

$11.12

18

Locking Clip

513033135

$5.11

19

Polyurethane Hose 10000Mm Long

219704410

$46.12

20

Elbow Male Connector

414580600

$3.50

21

Check Valve

513033469

$25.32

22

Grommet

293720029

$1.13

23

Check Valve

275500398

$8.57

24

Y-Fitting

293710059

$8.19

25

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

26

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

27

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable
