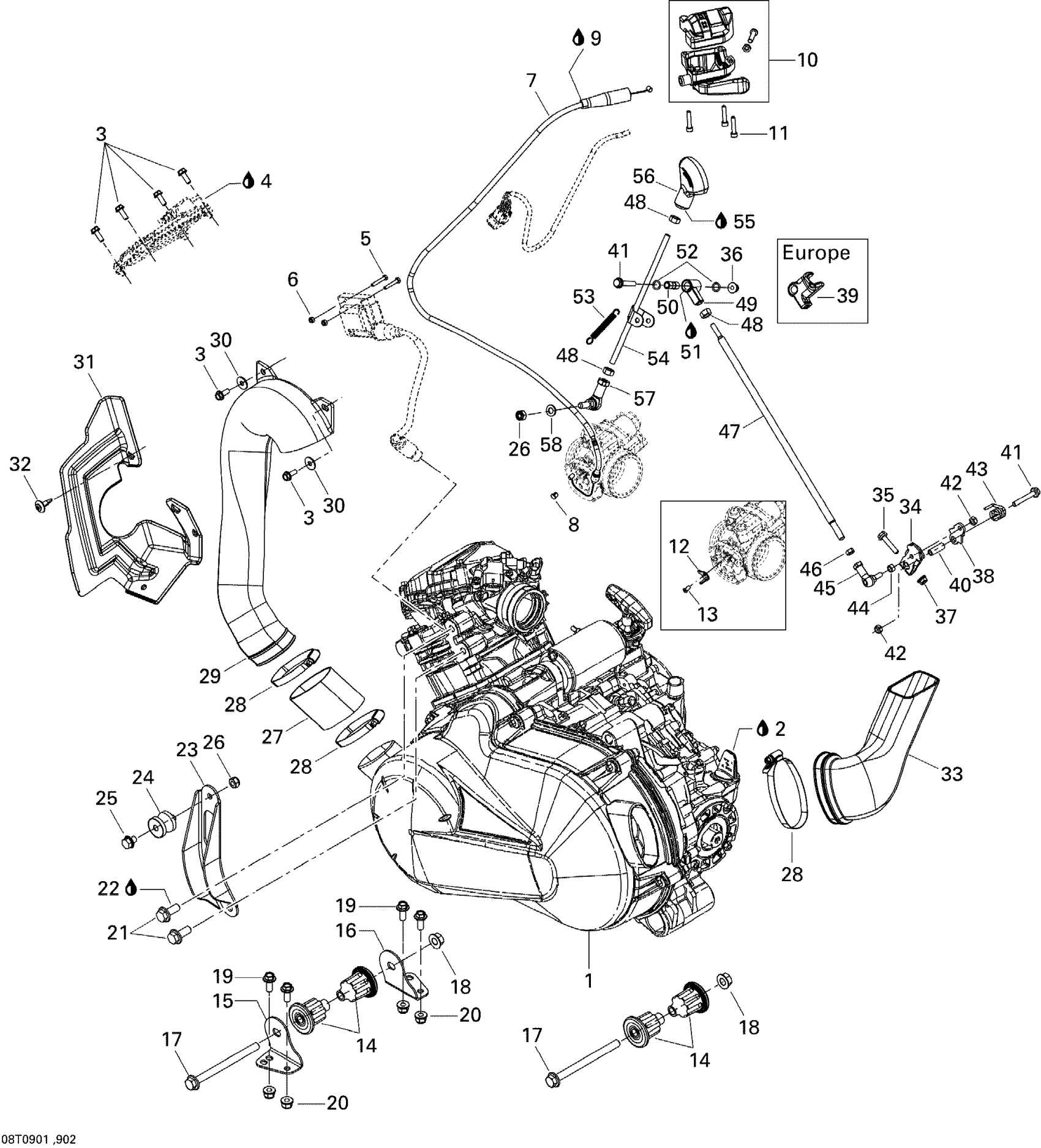

Can-Am Outlander 400 EFI, 2009 Engine And Engine Support Diagram

#

Description
Price

1

ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership | Includes 1 to 2

420040035

Unavailable

1

Engine Rotax 4 Stroke | Includes 1 to 2, Europe

707000637

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.22

4

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

5

Hex. Screw M4 X 25

207142544

$1.63

6

Elastic Stop Nut M4

232541414

$0.48

7

THROTTLE CABLE - Call your local BRP dealership

707000539

$28.43

8

Cable Guide

707000434

$10.52

9

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

10

Throttle Handle | 4X4

707000595

$73.82

11

Socket Head Screw M5 X 25

205052588

$1.56

12

Speed Limiter | Europe

707000658

Unavailable

13

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

14

Anti Vibration Buffer

707001170

$23.05

15

ENGINE BRACKET - Call your local BRP dealership

707000802

$10.57

16

ENGINE BRACKET - Call your local BRP dealership

707000803

$8.94

17

Hex. Flange Screw M10 X 125

230602546

$6.08

18

Hex. Flange Elastic Nut M10

233201436

$1.74

19

Hex. Flange Screw M8 X 20

207682044

$0.92

20

Hex. Flange Elastic Nut M8

233281414

$1.14

21

Hex. Flange Screw M10 X 25

207602544

$1.33

22

Loctite 243, 10 ml

293800060

$20.77

23

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

$13.83

24

Rubber Isolator

707000949

$9.00

25

Flange Screw M8 x 10, Scotch Grip

207581046

$3.99

26

Hex. Elastic Stop Nut M8

232581414

$0.47

27

Flexibale Adaptor

707002585

$14.75

28

Norma Clamp

293650091

$4.60

29

AIR INTAKE - Call your local BRP dealership

707000540

$14.65

30

Flat Washer

250200082

$0.35

31

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

$12.20

32

Tuflock Phillips Plastic Screw

414745900

$1.30

33

AIR OUTLET - Call your local BRP dealership

707000718

Unavailable

34

Lever

707000503

$36.89

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Pivot Plate

707000507

$7.69

39

PIVOT - Call your local BRP dealership | Europe

707000977

Unavailable

40

Bushing

293900079

$8.49

41

Hex. Flange Screw M6 X 40

207664044

$2.18

42

Elastic Stop Nut M6

232561414

$1.55

43

Spring

707000310

$9.37

44

Bushing | DS 650 X

293900104

$5.26

45

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

46

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

47

Threaded Rod

707000567

$34.58

48

Hex. Nut M8

232081414

$0.60

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.98

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

Spring

707000569

$8.45

54

Lever Arm

707000786

$36.89

55

Loctite 243, 10 ml

293800060

$20.77

56

Lever Handle

707000284

$18.43

57

RH Ball Joint

707001959

$35.35

58

Flat Washer 8 mm

234081410

$0.69
