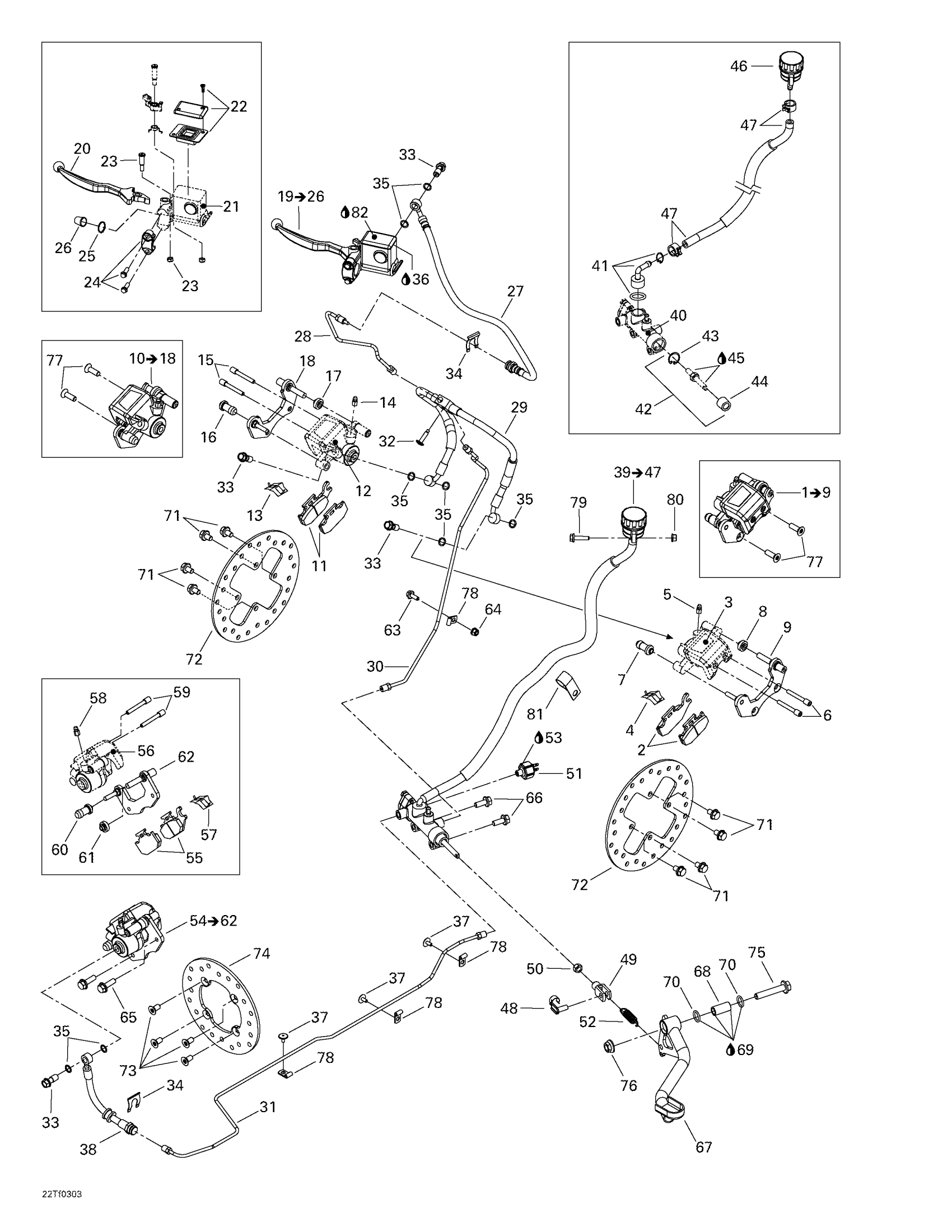

Can-Am Outlander 400, 2003 Hydraulic Brake Diagram
#
1
RH Caliper | Includes 1 to 9
705600575
Unavailable
3
Piston Set
705600294
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
LH Caliper Support
705600297
Unavailable
12
Piston Set
705600294
Unavailable
13
Spring
705600079
Unavailable
14
Bleeding Screw
705600080
Unavailable
15
Pin Set (2)
705600081
Unavailable
16
Compression Boot
705600082
Unavailable
17
Compression Boot
705600083
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
21
PISTON KIT - Call your local BRP dealership
705600244
Unavailable
24
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
25
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
27
Front brake handle hose
705600209
Unavailable
28
Vertical tube
705600206
Unavailable
29
Brake hose
705600211
Unavailable
30
Union tube
705600252
Unavailable
31
Rear rigid tube
705600210
Unavailable
32
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
33
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
34
Hose retainer
705600253
Unavailable
35
Washer
414920600
Unavailable
36
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
37
Pop Rivet 3/16"
390406500
Unavailable
38
Flexible hose
705600208
Unavailable
40
Piston Set
705600255
Unavailable
41
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
42
REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership
705600154
Unavailable
43
Circlip
705600068
Unavailable
44
Compression Boot
705600090
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
48
Pin Kit
219702305
Unavailable
49
Yoke
705600100
Unavailable
50
Hex. Nut M8
232081414
Unavailable
51
Interrupteur *Brake Switch
710001345
Unavailable
53
Was 293800013 Loctite 56765
219704454
Unavailable
54
REAR CALIPER - Call your local BRP dealership | Includes 54 - 62.
705600263
Unavailable
55
Brake Pad Kit
705600014
Unavailable
56
Piston Set
705600295
Unavailable
57
Spring
705600079
Unavailable
58
Bleeding Screw
705600080
Unavailable
59
Pin Set (2)
705600081
Unavailable
60
Compression Boot
705600082
Unavailable
61
Compression Boot
705600083
Unavailable
62
LH CALIPER SUPPORT - Call your local BRP dealership
705600298
Unavailable
63
Hex. Flange Screw M6 X 16
207661644
Unavailable
64
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
65
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
68
SPACER - Call your local BRP dealership
705600283
Unavailable
69
Synthetic Grease, 400 G
293550010
Unavailable
71
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
75
Hex. Flange Screw M10 X 55
207605544
Unavailable
77
Torx Screw Scotch Grip M8 X 25
235382546
Unavailable
78
Open clamp
705600308
Unavailable
79
Hex. Flange Screw M6 X 25
207662544
Unavailable
80
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
81
Not Available As Spare Part - Friction Washer
Unavailable
80
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
